| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DPG10I200PADIODE GEN PURP 200V 10A TO220AC |
2,046 | 1.52 |
RFQ |
Datasheet |
Tube | HiPerFRED™ | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 35 ns | 1 µA @ 200 V | 200 V | 10A | -55°C ~ 175°C | 1.27 V @ 10 A |
|
DPG10I200PMDIODE GEN PURP 200V 10A TO220FP |
2,209 | 1.61 |
RFQ |
Datasheet |
Tube | HiPerFRED²™ | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 35 ns | 1 µA @ 200 V | 200 V | 10A | -55°C ~ 175°C | 1.27 V @ 10 A |
|
|
DSB20I15PADIODE SCHOTTKY 15V 20A TO220AC |
2,170 | 1.61 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 10 µA @ 15 V | 15 V | 20A | -55°C ~ 150°C | 480 mV @ 20 A | |
|
|
DMA10IM1600UZ-TUBPOWER DIODE DISCRETES-RECTIFIER |
2,311 | 1.63 |
RFQ |
Datasheet |
Tube | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 4pF @ 400V, 1MHz | - | 10 µA @ 1600 V | 1600 V | 10A | -55°C ~ 175°C | 1.26 V @ 10 A | |
|
|
DSEP8-06ADIODE GEN PURP 600V 10A TO220AC |
3,481 | 1.66 |
RFQ |
Datasheet |
Tube | HiPerFRED™ | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 35 ns | 60 µA @ 600 V | 600 V | 10A | -55°C ~ 175°C | 2.1 V @ 10 A |
|
|
DSEP8-06BDIODE GEN PURP 600V 10A TO220AC |
2,334 | 1.66 |
RFQ |
Datasheet |
Tube | HiPerFRED™ | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 30 ns | 60 µA @ 600 V | 600 V | 10A | -55°C ~ 175°C | 2.66 V @ 10 A |
|
DSS16-0045ADIODE SCHOTTKY 45V 16A TO-220AC |
3,472 | 1.70 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 500 µA @ 45 V | 45 V | 16A | - | 670 mV @ 15 A | |
|
|
DMA10I1600PADIODE GEN PURP 1600V 10A TO220AC |
3,950 | 1.70 |
RFQ |
Datasheet |
Tube | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | 4pF @ 400V, 1MHz | - | 10 µA @ 1600 V | 1600 V | 10A | -55°C ~ 175°C | 1.26 V @ 10 A | |
|
DSEI36-06AS-TRLDIODE FAST REC 600V 37A TO263AB |
2,972 | 2.99 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FRED | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 50 ns | 100 µA @ 600 V | 600 V | 37A | -40°C ~ 150°C | 1.6 V @ 37 A |
|
|
DSS25-0025BDIODE SCHOTTKY 25V 25A TO220AC |
2,624 | 1.78 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 20 mA @ 25 V | 25 V | 25A | -55°C ~ 150°C | 520 mV @ 25 A | |
|
|
DSA30I100PADIODE SCHOTTKY 100V 30A TO220AC |
3,345 | 1.78 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 900 µA @ 100 V | 100 V | 30A | -55°C ~ 175°C | 950 mV @ 30 A | |
|
|
DLA20IM800PC-TUBDIODE GEN PURP 800V 20A TO263 |
3,819 | 1.93 |
RFQ |
Datasheet |
Tube | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 4pF @ 400V, 1MHz | - | 10 µA @ 800 V | 800 V | 20A | -55°C ~ 175°C | 1.2 V @ 20 A | |
|
|
DHG10I600PMDIODE GEN PURP 600V 10A TO220FP |
3,179 | 1.97 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 35 ns | 15 µA @ 600 V | 600 V | 10A | -55°C ~ 150°C | 2.35 V @ 10 A | |
|
|
DPF30I300PADIODE GEN PURP 300V 30A TO220AC |
3,240 | 2.08 |
RFQ |
Datasheet |
Tube | HiPerFRED²™ | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 42pF @ 150V, 1MHz | 55 ns | 5 µA @ 300 V | 300 V | 30A | -55°C ~ 175°C | 1.17 V @ 30 A |
|
|
DSEP15-06BDIODE GEN PURP 600V 15A TO220AC |
2,787 | 2.12 |
RFQ |
Datasheet |
Tube | HiPerFRED™ | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 30 ns | 100 µA @ 600 V | 600 V | 15A | -55°C ~ 175°C | 2.52 V @ 15 A |
|
|
DSS16-01AS-TUBDIODE SCHOTTKY 100V 16A TO263AB |
3,099 | 2.42 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 500 µA @ 100 V | 100 V | 16A | -55°C ~ 175°C | 790 mV @ 15 A | |
|
DMA150E1600NADIODE GP 1.6KV 150A SOT227B |
3,621 | 24.28 |
RFQ |
Datasheet |
Tube | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | 60pF @ 400V, 1MHz | - | 200 µA @ 1600 V | 1600 V | 150A | -40°C ~ 150°C | 1.15 V @ 150 A | |
|

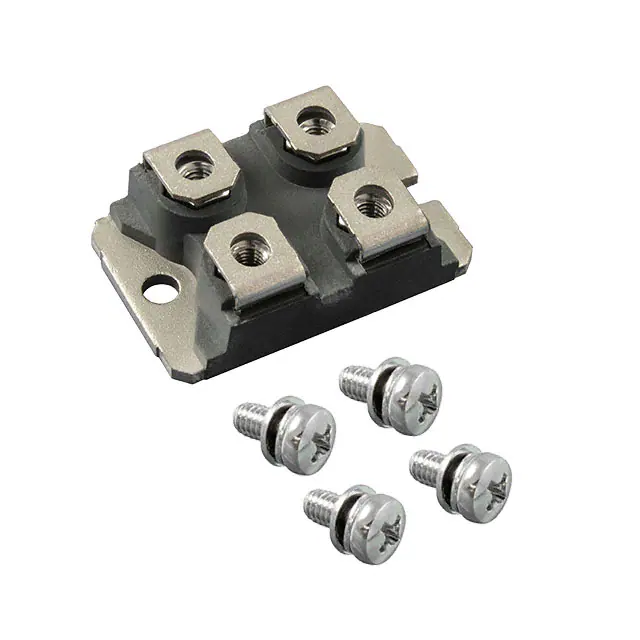

DSA300I45NADIODE SCHOTTKY 45V 300A SOT227B |
2,452 | 27.30 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Chassis Mount | 16500pF @ 5V, 1MHz | - | 3 mA @ 45 V | 45 V | 300A | - | 840 mV @ 300 A | |
|
|
DSA300I100NADIODE SCHOTTKY 100V 300A SOT227B |
3,819 | 28.67 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Chassis Mount | 4.86nF @ 12V, 1MHz | - | 3 mA @ 100 V | 100 V | 300A | -40°C ~ 150°C | 990 mV @ 300 A | |
|
|
DSA300I200NADIODE SCHOTTKY 200V 300A SOT227B |
2,230 | 32.75 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Chassis Mount | 2220pF @ 24V, 1MHz | - | 3 mA @ 200 V | 200 V | 300A | - | 1.03 V @ 300 A |
