| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DPF400C400NBDIODE GEN PURP 400V 400A SOT227B |
3,402 | 0.00 |
RFQ |
Tube | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | - | - | 400 V | 400A | - | - | ||
|
|
DPF60XA400NADIODE GEN PURP 400V 60A SOT227B |
3,911 | 0.00 |
RFQ |
Tube | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | - | - | 400 V | 60A | - | - | ||
|
DSEP30-03ASDIODE GEN PURP 300V 30A TO247AD |
2,682 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | HiPerFRED™ | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 22 ns | 250 µA @ 300 V | 300 V | 30A | 175°C (Max) | 1.55 V @ 30 A |
|
MDO1200-14N1DIODE GEN PURP 1.4KV Y1-CU |
2,974 | 0.00 |
RFQ |
Tray | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Chassis Mount | - | - | - | 1400 V | - | - | - | ||
|
|
MDO1200-16N1DIODE GEN PURP 1.6KV Y1-CU |
2,692 | 0.00 |
RFQ |
Tray | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Chassis Mount | - | - | - | 1600 V | - | - | - | ||
|
|
MDO1200-18N1DIODE GEN PURP 1.8KV Y1-CU |
2,530 | 0.00 |
RFQ |
Tray | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Chassis Mount | - | - | - | 1800 V | - | - | - | ||
|
|
MDO1200-20N1DIODE GEN PURP 2KV Y1-CU |
2,184 | 0.00 |
RFQ |
Tray | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Chassis Mount | - | - | - | 2000 V | - | - | - | ||
|
|
MDO1200-22N1DIODE GEN PURP 2.2KV Y1-CU |
3,008 | 0.00 |
RFQ |
Tray | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Chassis Mount | - | - | - | 2200 V | - | - | - | ||
|

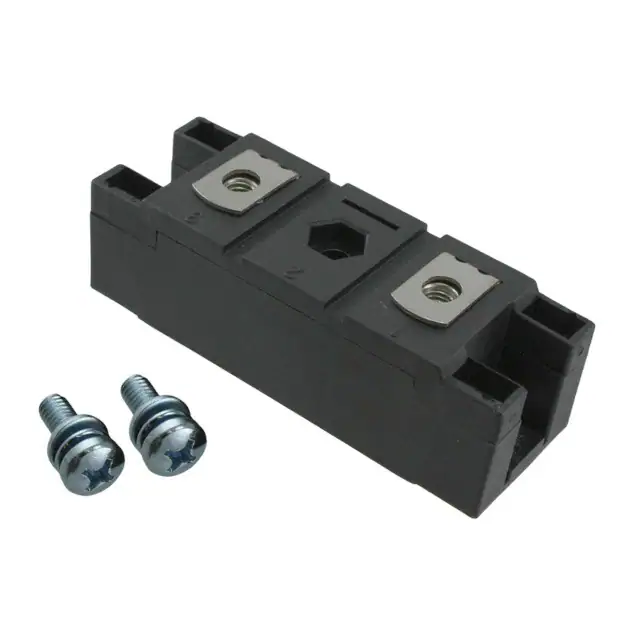

MEO550-02DADIODE GEN PURP 200V 582A Y4-M6 |
3,752 | 71.76 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | 200 ns | 5 mA @ 200 V | 200 V | 582A | -40°C ~ 150°C | 1.25 V @ 520 A | |
|
DSEI8-06ADIODE GEN PURP 600V 8A TO220AC |
858 | 1.48 |
RFQ |
Datasheet |
Tube | FRED | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 50 ns | 20 µA @ 600 V | 600 V | 8A | -40°C ~ 150°C | 1.5 V @ 8 A |
|
|
W0944WC120RECTIFIER DIODE |
2,354 | 70.97 |
RFQ |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | - | 15 mA @ 1200 V | 1200 V | 944A | -40°C ~ 190°C | 1.45 V @ 1930 A | ||
|
|
W0944WC150RECTIFIER DIODE |
2,711 | 72.24 |
RFQ |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | - | 15 mA @ 1500 V | 1500 V | 944A | -40°C ~ 190°C | 1.45 V @ 1930 A | ||
|
|
W1263YC160RECTIFIER DIODE |
2,405 | 82.19 |
RFQ |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | 17 µs | 30 mA @ 1600 V | 1600 V | 1263A | -40°C ~ 175°C | 2.12 V @ 3770 A | ||
|
|
W1263YC250RECTIFIER DIODE |
3,951 | 84.66 |
RFQ |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | 17 µs | 30 mA @ 2500 V | 2500 V | 1263A | -40°C ~ 175°C | 2.12 V @ 3770 A | ||
|
|
W1185LC450RECTIFIER DIODE |
2,991 | 148.15 |
RFQ |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | - | 30 mA @ 4500 V | 4500 V | 1185A | -55°C ~ 160°C | 2.4 V @ 2420 A | ||
|
|
M1494NC250FAST DIODE |
2,477 | 204.15 |
RFQ |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | 3.9 µs | 85 mA @ 2500 V | 2500 V | 1494A | -40°C ~ 125°C | 2.34 V @ 4500 A | ||
|
|
M0659LC450FAST DIODE |
3,570 | 221.80 |
RFQ |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | 4.2 µs | 100 mA @ 4500 V | 4500 V | 659A | -40°C ~ 125°C | 3 V @ 1400 A | ||
|
DSA15IM200UC-TRLDIODE SCHOTTKY 200V 15A TO252 |
281 | 1.52 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 67pF @ 24V, 1MHz | - | 250 µA @ 200 V | 200 V | 15A | -55°C ~ 175°C | 940 mV @ 15 A | |
|
|
DSEI12-12ADIODE GEN PURP 1.2KV 11A TO220AC |
2,981 | 1.89 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 70 ns | 250 µA @ 1200 V | 1200 V | 11A | -40°C ~ 150°C | 2.6 V @ 12 A | |
|
|
DSEI20-12ADIODE GEN PURP 1.2KV 17A TO220AC |
2,349 | 2.88 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 60 ns | 750 µA @ 1200 V | 1200 V | 17A | -40°C ~ 150°C | 2.15 V @ 12 A |
