| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
W2899MC480RECTIFIER DIODE |
2,271 | 211.95 |
RFQ |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | 48 µs | 50 mA @ 4800 V | 4800 V | 2899A | -40°C ~ 160°C | 2.9 V @ 8600 A | ||
|
|
M2505MC250FAST DIODE |
3,884 | 280.85 |
RFQ |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | 7.6 µs | - | 2500 V | 2505A | - | 991 mV @ 2000 A | ||
|
|
W1856NC480RECTIFIER DIODE |
2,277 | 213.75 |
RFQ |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | 36 µs | 50 mA @ 4800 V | 4800 V | 1856A | -40°C ~ 160°C | 2.95 V @ 5550 A | ||
|
|
W7045MC030RECTIFIER DIODE |
3,294 | 226.65 |
RFQ |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | 17.7 µs | 50 mA @ 300 V | 300 V | 7045A | -40°C ~ 190°C | 1.49 V @ 21000 A | ||
|
|
W7045MC060RECTIFIER DIODE |
2,454 | 231.15 |
RFQ |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | 17.7 µs | 50 mA @ 600 V | 600 V | 7045A | -40°C ~ 190°C | 1.49 V @ 21000 A | ||
|

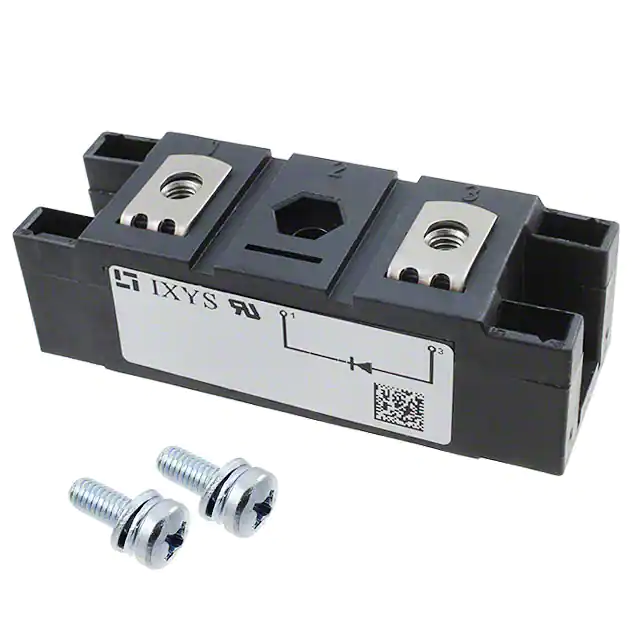

ME0500-06DADIODE GEN PURP 600V 514A Y4 |
2,649 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | 300 ns | 24 mA @ 600 V | 600 V | 514A | - | 1.36 V @ 300 A | |
|
DSA9-16FDIODE AVALANCHE 1.6KV 11A DO203 |
3,406 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Avalanche | Obsolete | Chassis, Stud Mount | - | - | 3 mA @ 1600 V | 1600 V | 11A | -40°C ~ 180°C | 1.4 V @ 36 A | |
|
DSEP9-06CRDIODE GP 600V 9A ISOPLUS247 |
2,961 | 0.00 |
RFQ |
Datasheet |
Tube | HiPerDynFRED™ | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | - | 15 ns | 50 µA @ 600 V | 600 V | 9A | -55°C ~ 175°C | 4 V @ 9 A |
|

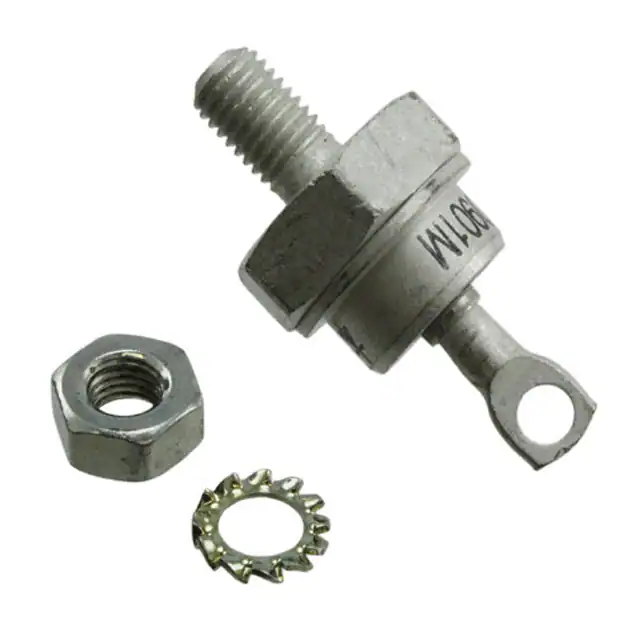

DSA75-16BDIODE AVALANCHE 1.6KV 110A DO203 |
2,924 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Avalanche | Obsolete | Chassis, Stud Mount | - | - | 6 mA @ 1600 V | 1600 V | 110A | -40°C ~ 180°C | 1.17 V @ 150 A | |
|

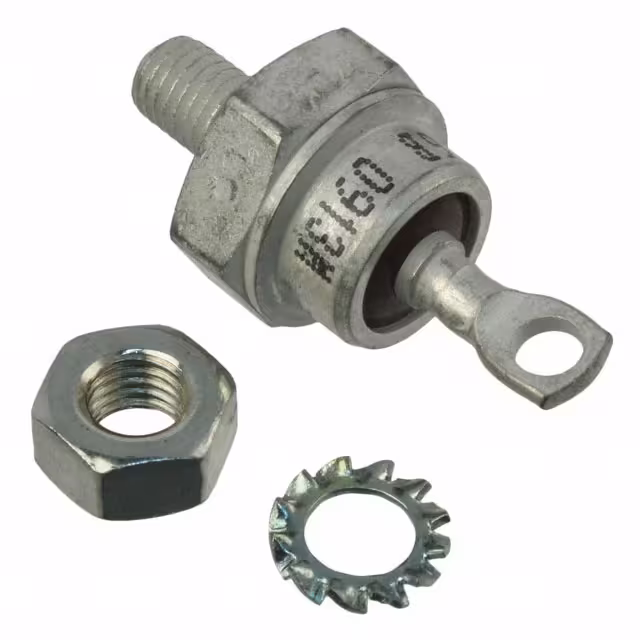

DSAI75-16BDIODE AVALANCHE 1.6KV 110A DO203 |
2,218 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Avalanche | Obsolete | Chassis, Stud Mount | - | - | 6 mA @ 1600 V | 1600 V | 110A | -40°C ~ 180°C | 1.17 V @ 150 A | |
|
DGS10-018ADIODE SCHOTTKY 180V 15A TO220AC |
3,909 | 0.00 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Through Hole | - | - | 1.3 mA @ 180 V | 180 V | 15A | -55°C ~ 175°C | 1.1 V @ 5 A | |
|
DGS10-018ASDIODE SCHOTTKY 180V 15A TO263AB |
2,999 | 0.00 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Surface Mount | - | - | 1.3 mA @ 180 V | 180 V | 15A | -55°C ~ 175°C | 1.1 V @ 5 A | |
|
|
DGS10-025ADIODE SCHOTTKY 250V 12A TO220AC |
3,825 | 0.00 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Through Hole | - | - | 1.3 mA @ 250 V | 250 V | 12A | -55°C ~ 175°C | 1.5 V @ 5 A | |
|
|
DGS10-025ASDIODE SCHOTTKY 250V 12A TO263AB |
2,471 | 0.00 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Surface Mount | - | - | 1.3 mA @ 250 V | 250 V | 12A | -55°C ~ 175°C | 1.5 V @ 5 A | |
|
|
DGS10-030ADIODE SCHOTTKY 300V 11A TO220AC |
3,024 | 0.00 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Through Hole | - | - | 1.3 mA @ 300 V | 300 V | 11A | -55°C ~ 175°C | 2 V @ 5 A | |
|
DGS13-025CSDIODE SCHOTTKY 250V 21A TO252AA |
2,939 | 0.00 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Surface Mount | - | 18 ns | 250 µA @ 250 V | 250 V | 21A | -55°C ~ 175°C | 1.7 V @ 7.5 A | |
|
|
DGS15-018CSDIODE SCHOTTKY 180V 24A TO252AA |
2,332 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Surface Mount | - | 23 ns | 250 µA @ 180 V | 180 V | 24A | -55°C ~ 175°C | 1.5 V @ 7.5 A | |
|
|
DGS17-030CSDIODE SCHOTTKY 300V 29A TO252AA |
3,666 | 0.00 |
RFQ |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Surface Mount | - | 23 ns | 250 µA @ 300 V | 300 V | 29A | -55°C ~ 175°C | 1.9 V @ 7.5 A | ||
|
|
DGS19-025ASDIODE SCHOTTKY 250V 18A TO252AA |
2,389 | 0.00 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Surface Mount | - | - | 2 mA @ 250 V | 250 V | 18A | -55°C ~ 175°C | 1.5 V @ 7.5 A | |
|
|
DGS19-025CSDIODE SCHOTTKY 250V 31A TO252AA |
3,569 | 0.00 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Surface Mount | - | 26 ns | 400 µA @ 250 V | 250 V | 31A | -55°C ~ 175°C | 1.5 V @ 10 A |
