| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DSI30-08ADIODE GEN PURP 800V 30A TO220AC |
3,027 | 2.12 |
RFQ |
Datasheet |
Tube | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | 10pF @ 400V, 1MHz | - | 40 µA @ 800 V | 800 V | 30A | -40°C ~ 175°C | 1.29 V @ 30 A | |
|
DNA30E2200PZ-TRLDIODE GEN PURP 2.2KV 30A TO263 |
3,799 | 4.72 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 7pF @ 700V, 1MHz | - | 40 µA @ 2200 V | 2200 V | 30A | -55°C ~ 150°C | 1.26 V @ 30 A | |
|
DNA30EM2200PZ-TRLDIODE GEN PURP 2.2KV 30A TO263 |
3,566 | 4.72 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 7pF @ 700V, 1MHz | - | 40 µA @ 2200 V | 2200 V | 30A | -55°C ~ 150°C | 1.26 V @ 30 A | |
|
|
DSI30-16AS-TUBDIODE GEN PURP 1.6KV 30A TO263 |
2,844 | 3.10 |
RFQ |
Datasheet |
Tube | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 10pF @ 400V, 1MHz | - | 40 µA @ 1600 V | 1600 V | 30A | -40°C ~ 175°C | 1.29 V @ 30 A | |
|
|
DSEP29-12ADIODE GEN PURP 1.2KV 30A TO220AC |
2,946 | 3.13 |
RFQ |
Datasheet |
Tube | HiPerFRED™ | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 40 ns | 250 µA @ 1200 V | 1200 V | 30A | -55°C ~ 175°C | 2.75 V @ 30 A |
|
DSEI30-06ADIODE GEN PURP 600V 37A TO247AD |
2,801 | 3.87 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 50 ns | 100 µA @ 600 V | 600 V | 37A | -40°C ~ 150°C | 1.6 V @ 37 A | |
|
|
DSI45-12ADIODE GEN PURP 1.2KV 45A TO247AD |
2,792 | 4.18 |
RFQ |
Datasheet |
Tube | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | 18pF @ 400V, 1MHz | - | 20 µA @ 1200 V | 1200 V | 45A | -40°C ~ 175°C | 1.28 V @ 45 A | |
|
DSA1-18DDIODE AVALANCHE 1.8KV 2.3A |
3,975 | 4.76 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Avalanche | Active | Through Hole | - | - | 700 µA @ 1800 V | 1800 V | 2.3A | -40°C ~ 150°C | 1.34 V @ 7 A | |
|
|
DSEI60-02ADIODE GEN PURP 200V 69A TO247AD |
2,238 | 5.30 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 50 ns | 50 µA @ 200 V | 200 V | 69A | -40°C ~ 150°C | 1.08 V @ 60 A | |
|
|
DH20-18ADIODE GEN PURP 1.8KV 20A TO247 |
2,385 | 5.57 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 300 ns | 50 µA @ 1800 V | 1800 V | 20A | -55°C ~ 150°C | 2.24 V @ 20 A | |
|
|
DSEI60-10ADIODE GEN PURP 1KV 60A TO247AD |
2,484 | 5.74 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 50 ns | 3 mA @ 1000 V | 1000 V | 60A | -40°C ~ 150°C | 2.3 V @ 60 A | |
|
|
DH40-18ADIODE GEN PURP 1.8KV 40A TO247AD |
3,898 | 7.97 |
RFQ |
Datasheet |
Tube | SONIC-FRD™ | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 300 ns | 100 µA @ 1800 V | 1800 V | 40A | -40°C ~ 150°C | 2.7 V @ 40 A |
|
|
DSDI60-16ADIODE GEN PURP 1.6KV 63A TO247AD |
3,825 | 10.26 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 300 ns | 2 mA @ 1600 V | 1600 V | 63A | -40°C ~ 150°C | 4.1 V @ 70 A | |
|
|
DSS10-006ADIODE SCHOTTKY 60V 10A TO220AC |
2,077 | 1.44 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 20 µA @ 60 V | 60 V | 10A | -55°C ~ 175°C | 730 mV @ 10 A | |
|
DSA15IM45IBDIODE SCHOTTKY 45V 15A TO262 |
3,365 | 1.44 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 300 µA @ 45 V | 45 V | 15A | -55°C ~ 175°C | 750 mV @ 15 A | |
|
|
DSS10-0045BDIODE SCHOTTKY 45V 10A TO220AC |
3,685 | 1.44 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 5 mA @ 45 V | 45 V | 10A | -55°C ~ 150°C | 510 mV @ 10 A | |
|

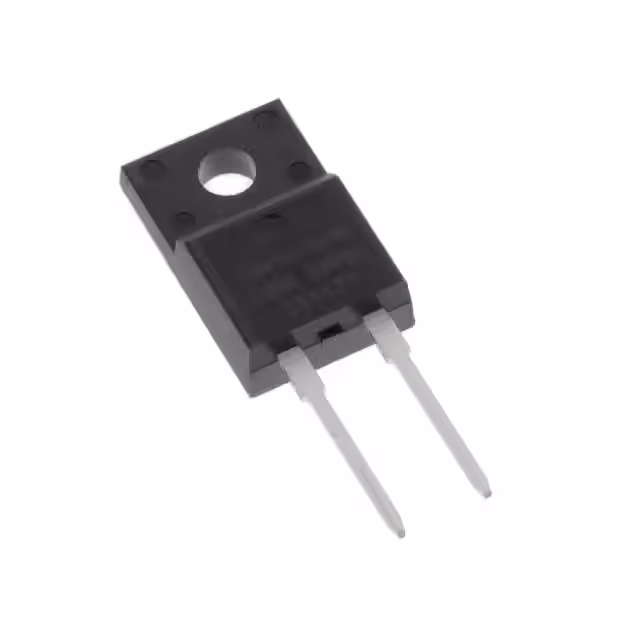

DSA10I100PMDIODE SCHOTTKY 100V 10A TO220FP |
3,826 | 1.44 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 200 µA @ 100 V | 100 V | 10A | -55°C ~ 150°C | 890 mV @ 10 A | |
|
|
DSA15I45PADIODE SCHOTTKY 45V 15A TO220AC |
3,516 | 1.44 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 500 µA @ 45 V | 45 V | 15A | -55°C ~ 175°C | 750 mV @ 15 A | |
|
|
DPG10I300PADIODE GEN PURP 300V 10A TO220AC |
3,391 | 1.52 |
RFQ |
Datasheet |
Tube | HiPerFRED™ | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 35 ns | 1 µA @ 300 V | 300 V | 10A | -55°C ~ 175°C | 1.27 V @ 10 A |
|
|
DSS10-01ADIODE SCHOTTKY 100V 10A TO220AC |
2,006 | 1.52 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 300 µA @ 100 V | 100 V | 10A | -55°C ~ 175°C | 840 mV @ 10 A |
