| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

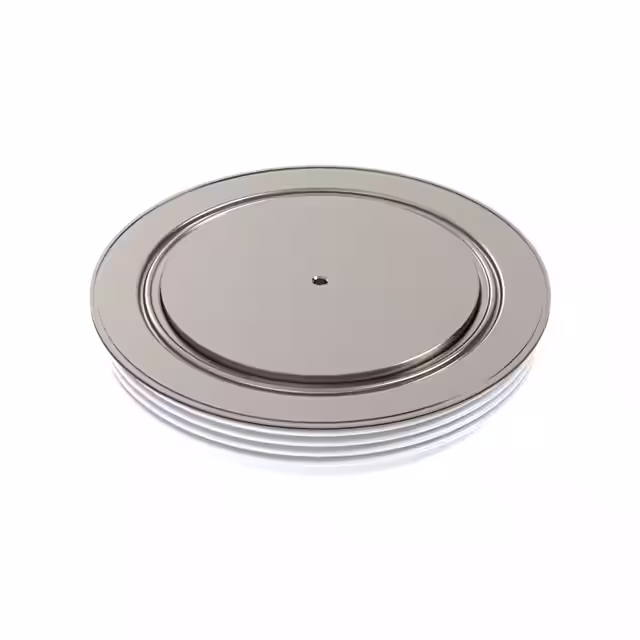

W2865HA680RECTIFIER DIODE 2862A 6800V |
2,798 | 760.95 |
RFQ |
Datasheet |
Box | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | 53 µs | 100 mA @ 6800 V | 6800 V | 4825A (DC) | -40°C ~ 150°C | 4.04 V @ 10000 A | |
|

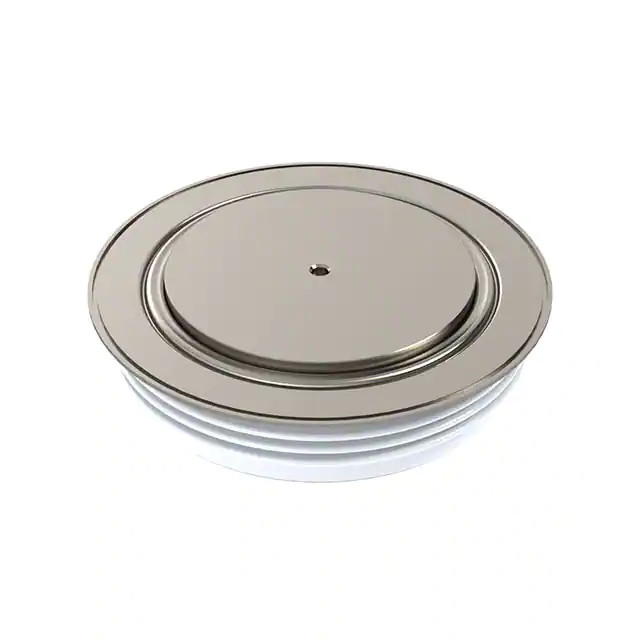

M2325HA450DIODE FAST RECOVERY 4500V 2325A |
3,985 | 764.10 |
RFQ |
Datasheet |
Box | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | 5.4 µs | 150 mA @ 4500 V | 4500 V | 2325A | -40°C ~ 150°C | 2.6 V @ 2500 A | |
|
|
W2865HA720RECTIFIER DIODE 2862A 7200V |
3,576 | 776.40 |
RFQ |
Datasheet |
Box | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | 53 µs | 100 mA @ 7200 V | 7200 V | 4825A (DC) | -40°C ~ 150°C | 4.04 V @ 10000 A | |
|
W2840QA220RECTIFIER DIODE |
3,800 | 152.62 |
RFQ |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | - | - | 2200 V | 2840A | - | - | ||
|
|
DHG55I3300FEPOWER DIODE DISCRETES-SONIC I4-P |
3,888 | 41.72 |
RFQ |
Tube | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | 16pF @ 1.8kV, 1MHz | 1.65 µs | 100 µA @ 3300 V | 3300 V | 50A | -40°C ~ 150°C | 3.4 V @ 60 A | ||
|
|
W108CED180RECTIFIER DIODE |
3,895 | 879.60 |
RFQ |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | - | - | 1800 V | 10815A | - | - | ||
|
|
W108CED220RECTIFIER DIODE |
2,432 | 897.45 |
RFQ |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | - | - | 2200 V | 10815A | - | - | ||
|
|
W1032LC500RECTIFIER DIODE |
2,188 | 154.48 |
RFQ |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | 30 µs | 30 mA @ 5000 V | 5000 V | 1032A | -40°C ~ 150°C | 2.7 V @ 2420 A | ||
|
W7395ED450DIODE GEN PURP 2.7KV 7395A W112 |
2,125 | 964.50 |
RFQ |
Datasheet |
Box | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | 69 µs | 120 mA @ 2700 V | 2700 V | 7395A | -40°C ~ 160°C | 1.4 V @ 7 kA | |
|
|
W7395ED480DIODE GEN PURP 2.88KV 7395A W112 |
3,668 | 984.30 |
RFQ |
Datasheet |
Box | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | 69 µs | 120 mA @ 2880 V | 2880 V | 7395A | -40°C ~ 160°C | 1.4 V @ 7 kA | |
|
|
E1250HC45EFAST DIODE |
3,655 | 1000.95 |
RFQ |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | 1.2 µs | 1 mA @ 4500 V | 4500 V | 1355A | - | 2.07 V @ 1250 A | ||
|
|
W5282ZC240RECTIFIER DIODE |
3,666 | 444.75 |
RFQ |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | - | 100 mA @ 2400 V | 2400 V | 5282A | -55°C ~ 160°C | 1.35 V @ 6000 A | ||
|
|
W5282ZC300RECTIFIER DIODE |
3,933 | 453.75 |
RFQ |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | - | 100 mA @ 3000 V | 3000 V | 5282A | -55°C ~ 160°C | 1.35 V @ 6000 A | ||
|
|
W3477MC400RECTIFIER DIODE |
3,918 | 177.60 |
RFQ |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | 38 µs | 100 mA @ 4000 V | 4000 V | 3470A | -40°C ~ 160°C | 1.34 V @ 3000 A | ||
|
|
W6360EC600RECTIFIER DIODE |
3,313 | 1038.30 |
RFQ |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | 73 µs | 120 mA @ 6000 V | 6000 V | 6395A | -40°C ~ 150°C | 1.4 V @ 4000 A | ||
|
|
W5715ED600RECTIFIER DIODE |
2,225 | 1088.10 |
RFQ |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | 73 µs | 120 mA @ 6000 V | 6000 V | 5750A | -40°C ~ 150°C | 1.4 V @ 4000 A | ||
|
|
E2400EC45EFAST DIODE |
3,628 | 1150.50 |
RFQ |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | 1.22 µs | 100 mA @ 4500 V | 4500 V | 2490A | -40°C ~ 140°C | 3.65 V @ 2400 A | ||
|
|
E3000EC45EFAST DIODE |
2,527 | 1161.60 |
RFQ |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | 1.25 µs | 90 mA @ 4500 V | 4500 V | 3410A | -40°C ~ 140°C | 3.1 V @ 3000 A | ||
|
|
W3842MC240RECTIFIER DIODE |
3,850 | 180.75 |
RFQ |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | 34 µs | 50 mA @ 2400 V | 2400 V | 3842A | -40°C ~ 160°C | 1.2 V @ 3000 A | ||
|
|
M1494NK250FAST DIODE |
2,510 | 182.40 |
RFQ |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | 3.9 µs | - | 2500 V | 1975A | - | 1.15 V @ 1000 A |
