| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S40BRDIODE GEN PURP REV 100V 40A DO5 |
2,973 | 8.69 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Stud Mount | - | - | 10 µA @ 100 V | 100 V | 40A | -65°C ~ 190°C | 1.1 V @ 40 A | |
|
S40DDIODE GEN PURP 200V 40A DO5 |
2,439 | 8.69 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 10 µA @ 100 V | 200 V | 40A | -65°C ~ 190°C | 1.1 V @ 40 A | |
|
|
S40DRDIODE GEN PURP REV 200V 40A DO5 |
3,587 | 8.69 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 10 µA @ 100 V | 200 V | 40A | -65°C ~ 190°C | 1.1 V @ 40 A | |
|
|
S40GDIODE GEN PURP 400V 40A DO5 |
2,593 | 8.69 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 10 µA @ 100 V | 400 V | 40A | -65°C ~ 190°C | 1.1 V @ 40 A | |
|
|
S40GRDIODE GEN PURP REV 400V 40A DO5 |
2,203 | 8.69 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 10 µA @ 100 V | 400 V | 40A | -65°C ~ 190°C | 1.1 V @ 40 A | |
|
|
S40JDIODE GEN PURP 600V 40A DO5 |
3,238 | 8.69 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 10 µA @ 100 V | 600 V | 40A | -65°C ~ 190°C | 1.1 V @ 40 A | |
|
|
S40JRDIODE GEN PURP REV 600V 40A DO5 |
3,581 | 8.69 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 10 µA @ 100 V | 600 V | 40A | -65°C ~ 190°C | 1.1 V @ 40 A | |
|
|
S40KDIODE GEN PURP 800V 40A DO5 |
2,199 | 8.69 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 10 µA @ 100 V | 800 V | 40A | -65°C ~ 190°C | 1.1 V @ 40 A | |
|

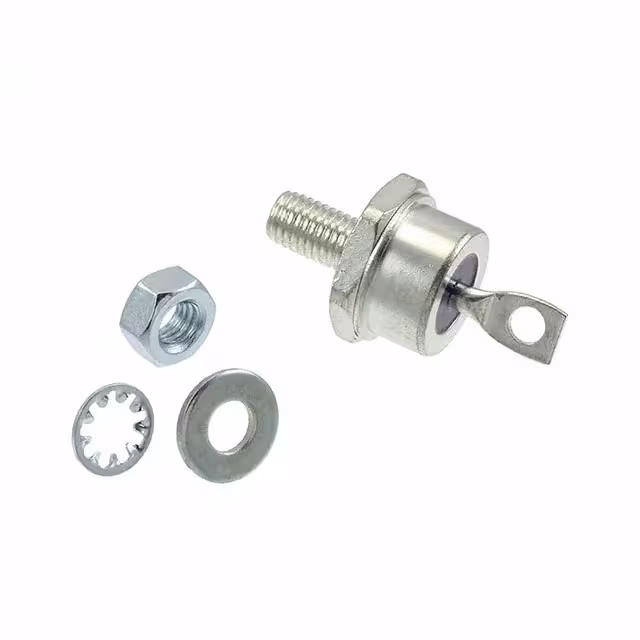

S40MDIODE GEN PURP 1KV 40A DO5 |
3,555 | 8.69 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 10 µA @ 100 V | 1000 V | 40A | -65°C ~ 190°C | 1.1 V @ 40 A | |
|
S40QRDIODE GEN PURP REV 1.2KV 40A DO5 |
3,755 | 8.69 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 10 µA @ 100 V | 1200 V | 40A | -65°C ~ 190°C | 1.1 V @ 40 A | |
|
|
S40VRDIODE GEN PURP REV 1.4KV 40A DO5 |
3,343 | 8.69 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 10 µA @ 100 V | 1400 V | 40A | -65°C ~ 160°C | 1.1 V @ 40 A | |
|
|
FR12K05DIODE GEN PURP 800V 12A DO4 |
3,843 | 8.72 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | 500 ns | 25 µA @ 100 V | 800 V | 12A | -65°C ~ 150°C | 800 mV @ 12 A | |
|

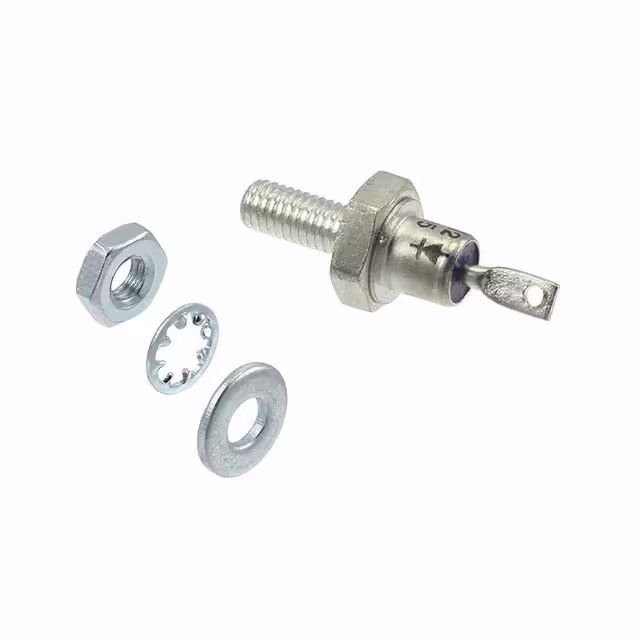

FR12M05DIODE GEN PURP 1KV 12A DO4 |
2,134 | 8.72 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | 500 ns | 25 µA @ 100 V | 1000 V | 12A | -65°C ~ 150°C | 800 mV @ 12 A | |
|
|
FR12KR05DIODE GEN PURP REV 800V 12A DO4 |
2,694 | 8.79 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | 500 ns | 25 µA @ 100 V | 800 V | 12A | -65°C ~ 150°C | 800 mV @ 12 A | |
|
|
FR12MR05DIODE GEN PURP REV 1KV 12A DO4 |
2,581 | 8.79 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | 500 ns | 25 µA @ 100 V | 1000 V | 12A | -65°C ~ 150°C | 1.4 V @ 12 A | |
|
1N3214RDIODE GEN PURP REV 600V 15A DO5 |
2,307 | 8.81 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 10 µA @ 50 V | 600 V | 15A | -65°C ~ 175°C | 1.5 V @ 15 A | |
|
|
1N3208DIODE GEN PURP 50V 15A DO5 |
3,813 | 8.81 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 10 µA @ 50 V | 50 V | 15A | -65°C ~ 175°C | 1.5 V @ 15 A | |
|
|
1N3208RDIODE GEN PURP REV 50V 15A DO5 |
3,683 | 8.81 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 10 µA @ 50 V | 50 V | 15A | -65°C ~ 175°C | 1.5 V @ 15 A | |
|
|
1N3209DIODE GEN PURP 100V 15A DO5 |
3,662 | 8.81 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 10 µA @ 50 V | 100 V | 15A | -65°C ~ 175°C | 1.5 V @ 15 A | |
|
|
1N3209RDIODE GEN PURP REV 100V 15A DO5 |
2,430 | 8.81 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 10 µA @ 50 V | 100 V | 15A | -65°C ~ 175°C | 1.5 V @ 15 A |
