| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GD30MPS12J1200V 30A TO-263-7 SIC SCHOTTKY |
928 | 12.49 |
RFQ |
Tube | SiC Schottky MPS™ | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Surface Mount | - | 0 ns | - | 1200 V | 30A (DC) | 175°C | - | |
|

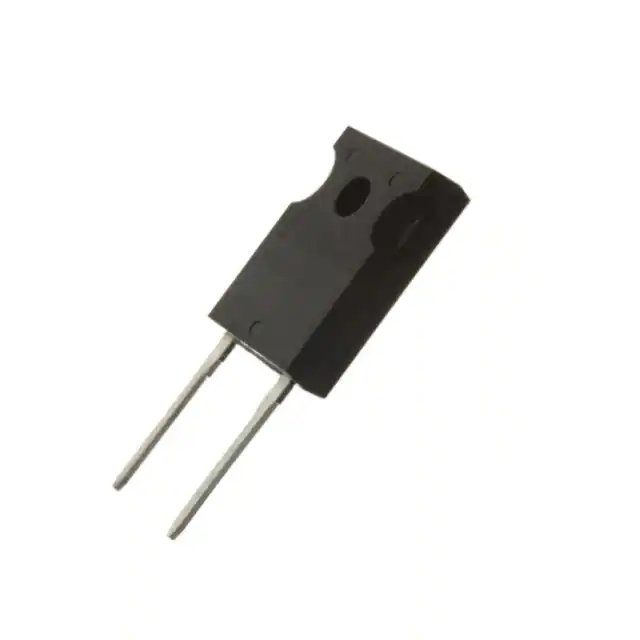

GD50MPS12H1200V 50A TO-247-2 SIC SCHOTTKY |
491 | 19.60 |
RFQ |
Datasheet |
Tube | SiC Schottky MPS™ | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 1.835nF @ 1V, 1MHz | 0 ns | 15 µA @ 1200 V | 1200 V | 92A (DC) | -55°C ~ 175°C | 1.8 V @ 50 A |
|
GD60MPS17HDIODE SCHOTTKY 1700V 60A TO-247- |
484 | 42.53 |
RFQ |
Datasheet |
Tube | SiC Schottky MPS™ | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 4577pF @ 1V, 1MHz | - | 40 µA @ 1700 V | 1700 V | 122A (DC) | -55°C ~ 175°C | 1.8 V @ 60 A |
|
GC02MPS12-220SIC DIODE 1200V 2A TO-220-2 |
137 | 2.25 |
RFQ |
Datasheet |
Tube | SiC Schottky MPS™ | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 127pF @ 1V, 1MHz | 0 ns | 2 µA @ 1200 V | 1200 V | 12A (DC) | -55°C ~ 175°C | 1.8 V @ 2 A |
|
|
S85BRDIODE GEN PURP REV 100V 85A DO5 |
200 | 18.32 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 10 µA @ 100 V | 100 V | 85A | -65°C ~ 180°C | 1.1 V @ 85 A | |
|
MUR5010RDIODE GEN PURP REV 100V 50A DO5 |
195 | 25.25 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | 75 ns | 10 µA @ 50 V | 100 V | 50A | -55°C ~ 150°C | 1 V @ 50 A | |
|
GB50MPS17-247SIC DIODE 1700V 50A TO-247-2 |
555 | 36.03 |
RFQ |
Datasheet |
Tube | SiC Schottky MPS™ | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Not For New Designs | Through Hole | 3193pF @ 1V, 1MHz | 0 ns | 60 µA @ 1700 V | 1700 V | 216A (DC) | -55°C ~ 175°C | 1.8 V @ 50 A |
|
GB01SLT12-214DIODE SCHOTTKY 1.2KV 2.5A SMB |
3,920 | 3.15 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SiC Schottky MPS™ | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Surface Mount | 69pF @ 1V, 1MHz | 0 ns | 10 µA @ 1200 V | 1200 V | 2.5A | -55°C ~ 175°C | 1.8 V @ 1 A |
|
|
GC50MPS06-247SIC DIODE 650V 50A TO-247-2 |
2,246 | 14.75 |
RFQ |
Datasheet |
Tube | SiC Schottky MPS™ | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | - | 0 ns | - | 650 V | 50A (DC) | 175°C (Max) | - |
|
|
GB25MPS17-247SIC DIODE 1700V 25A TO-247-2 |
3,033 | 19.80 |
RFQ |
Datasheet |
Tube | SiC Schottky MPS™ | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 1596pF @ 1V, 1MHz | 0 ns | 30 µA @ 1700 V | 1700 V | 110A (DC) | -55°C ~ 175°C | 1.8 V @ 25 A |
|
1N3210DIODE GEN PURP 200V 15A DO5 |
2,023 | 6.59 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Stud Mount | - | - | 10 µA @ 50 V | 200 V | 15A | -65°C ~ 175°C | 1.5 V @ 15 A | |
|
S40QDIODE GEN PURP 1.2KV 40A DO5 |
2,463 | 10.21 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 10 µA @ 100 V | 1200 V | 40A | -65°C ~ 190°C | 1.1 V @ 40 A | |
|
|
GC20MPS12-220SIC DIODE 1200V 20A TO-220-2 |
340 | 10.52 |
RFQ |
Datasheet |
Tube | SiC Schottky MPS™ | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 1298pF @ 1V, 1MHz | 0 ns | 18 µA @ 1200 V | 1200 V | 94A (DC) | -55°C ~ 175°C | 1.8 V @ 20 A |
|

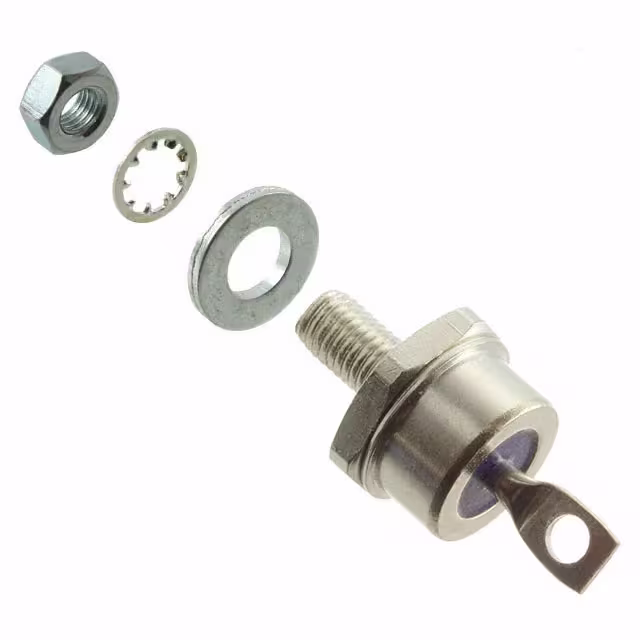

1N1184ADIODE GEN PURP 100V 40A DO5 |
3,808 | 11.78 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 10 µA @ 50 V | 100 V | 40A | -65°C ~ 200°C | 1.1 V @ 40 A | |
|

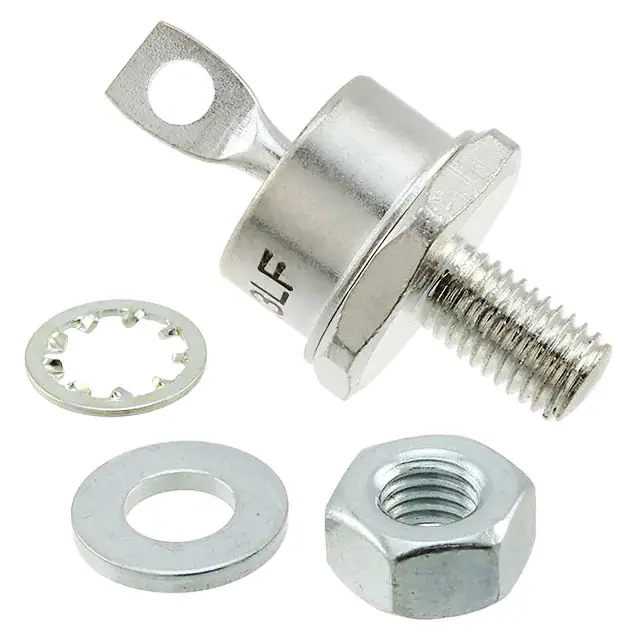

1N3214DIODE GEN PURP 600V 15A DO5 |
2,353 | 12.33 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 10 µA @ 50 V | 600 V | 15A | -65°C ~ 175°C | 1.5 V @ 15 A | |
|
1N2131ARDIODE GEN PURP REV 200V 60A DO5 |
2,442 | 13.71 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 10 µA @ 50 V | 200 V | 60A | -65°C ~ 200°C | 1.1 V @ 60 A | |
|

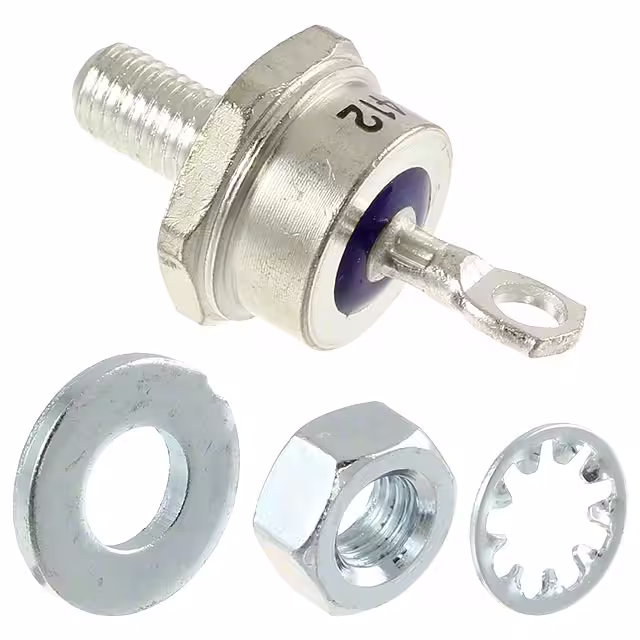

S85YRDIODE GEN PURP REV 1.6KV 85A DO5 |
3,249 | 15.15 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 10 µA @ 100 V | 1600 V | 85A | -65°C ~ 150°C | 1.1 V @ 85 A | |
|
1N6095RDIODE SCHOTTKY REV 30V DO4 |
3,070 | 22.90 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 2 mA @ 20 V | 30 V | 25A | -55°C ~ 150°C | 580 mV @ 25 A | |
|
S380YDIODE GEN PURP 1.6KV 380A DO205 |
3,855 | 40.55 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 10 µA @ 1600 V | 1600 V | 380A | -60°C ~ 180°C | 1.2 V @ 380 A | |
|
150KR60ADIODE GEN PURP 600V 150A DO205AA |
3,788 | 46.69 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 35 mA @ 600 V | 600 V | 150A | -40°C ~ 200°C | 1.33 V @ 150 A |
