| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S12GRDIODE GEN PURP REV 400V 12A DO4 |
3,640 | 4.81 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 10 µA @ 50 V | 400 V | 12A | -65°C ~ 175°C | 1.1 V @ 12 A | |
|
|
S12JDIODE GEN PURP 600V 12A DO4 |
3,758 | 4.81 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 10 µA @ 50 V | 600 V | 12A | -65°C ~ 175°C | 1.1 V @ 12 A | |
|
|
S12JRDIODE GEN PURP REV 600V 12A DO4 |
2,643 | 4.81 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 10 µA @ 50 V | 600 V | 12A | -65°C ~ 175°C | 1.1 V @ 12 A | |
|
|
S12KDIODE GEN PURP 800V 12A DO4 |
2,390 | 4.81 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 10 µA @ 50 V | 800 V | 12A | -65°C ~ 175°C | 1.1 V @ 12 A | |
|
|
S12KRDIODE GEN PURP REV 800V 12A DO4 |
3,622 | 4.81 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 10 µA @ 50 V | 800 V | 12A | -65°C ~ 175°C | 1.1 V @ 12 A | |
|
|
S12MDIODE GEN PURP 1000V 12A DO4 |
3,318 | 4.81 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 10 µA @ 50 V | 1000 V | 12A | -65°C ~ 175°C | 1.1 V @ 12 A | |
|
|
S12MRDIODE GEN PURP REV 1KV 12A DO4 |
3,677 | 4.81 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 10 µA @ 50 V | 1000 V | 12A | -65°C ~ 175°C | 1.1 V @ 12 A | |
|

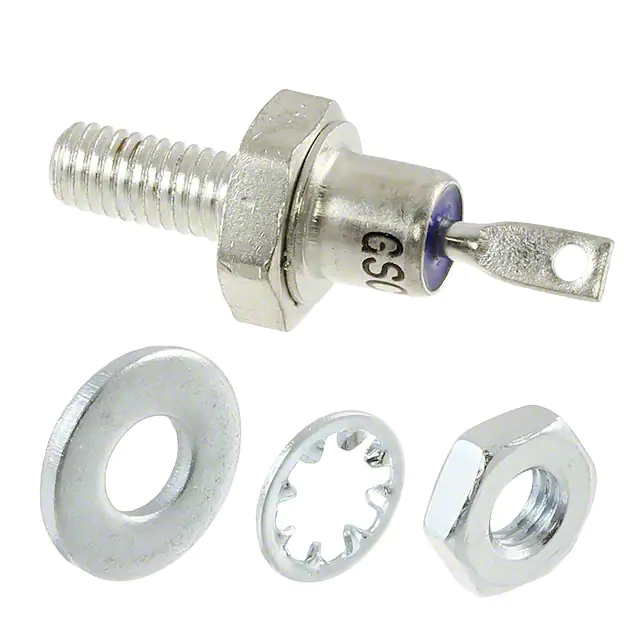

S12QDIODE GEN PURP 1200V 12A DO4 |
3,134 | 4.81 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 10 µA @ 50 V | 1200 V | 12A | -65°C ~ 175°C | 1.1 V @ 12 A | |
|
|
S12QRDIODE GEN PURP REV 1.2KV 12A DO4 |
2,452 | 4.81 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 10 µA @ 50 V | 1200 V | 12A | -65°C ~ 175°C | 1.1 V @ 12 A | |
|
|
1N3890RDIODE GEN PURP REV 100V 12A DO4 |
3,415 | 8.49 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | 200 ns | 25 µA @ 50 V | 100 V | 12A | -65°C ~ 150°C | 1.4 V @ 12 A | |
|
|
1N3891RDIODE GEN PURP REV 200V 12A DO4 |
2,144 | 8.49 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | 200 ns | 25 µA @ 50 V | 200 V | 12A | -65°C ~ 150°C | 1.4 V @ 12 A | |
|
|
FR12BR05DIODE GEN PURP REV 100V 12A DO4 |
3,993 | 8.49 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | 500 ns | 25 µA @ 100 V | 100 V | 12A | -65°C ~ 150°C | 800 mV @ 12 A | |
|
|
FR12DR05DIODE GEN PURP REV 200V 12A DO4 |
2,580 | 8.49 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | 500 ns | 25 µA @ 100 V | 200 V | 12A | -65°C ~ 150°C | 800 mV @ 12 A | |
|
|
FR12GR05DIODE GEN PURP REV 400V 12A DO4 |
3,080 | 8.49 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | 500 ns | 25 µA @ 100 V | 400 V | 12A | -65°C ~ 150°C | 800 mV @ 12 A | |
|
|
FR12JR05DIODE GEN PURP REV 600V 12A DO4 |
3,294 | 8.49 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | 500 ns | 25 µA @ 100 V | 600 V | 12A | -65°C ~ 150°C | 800 mV @ 12 A | |
|
|
1N1183ADIODE GEN PURP 50V 40A DO203AB |
2,649 | 8.69 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 10 µA @ 50 V | 50 V | 40A | -65°C ~ 200°C | 1.1 V @ 40 A | |
|
|
1N1183ARDIODE GEN PURP REV 50V 40A DO5 |
3,817 | 8.69 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 10 µA @ 50 V | 50 V | 40A | -65°C ~ 200°C | 1.1 V @ 40 A | |
|
1N1184ARDIODE GEN PURP REV 100V 40A DO5 |
2,676 | 8.69 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 10 µA @ 50 V | 100 V | 40A | -65°C ~ 200°C | 1.1 V @ 40 A | |
|
|
1N1188ADIODE GEN PURP 400V 40A DO5 |
2,496 | 8.69 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 10 µA @ 50 V | 400 V | 40A | -65°C ~ 200°C | 1.1 V @ 40 A | |
|
|
1N1188ARDIODE GEN PURP REV 400V 40A DO5 |
3,339 | 8.69 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 10 µA @ 50 V | 400 V | 40A | -65°C ~ 200°C | 1.1 V @ 40 A |
