| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GB02SHT01-46DIODE SCHOTTKY 100V 4A |
2,074 | 47.71 |
RFQ |
Datasheet |
Bulk | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 76pF @ 1V, 1MHz | 0 ns | 5 µA @ 100 V | 100 V | 4A (DC) | -55°C ~ 210°C | 1.6 V @ 1 A | |
|
GB02SHT06-46DIODE SCHOTTKY 600V 4A |
2,244 | 56.02 |
RFQ |
Datasheet |
Bulk | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 76pF @ 1V, 1MHz | 0 ns | 5 µA @ 600 V | 600 V | 4A (DC) | -55°C ~ 225°C | 1.6 V @ 1 A | |
|
1N6098DIODE SCHOTTKY 40V 50A DO5 |
2,258 | 28.96 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Chassis, Stud Mount | - | - | 5 mA @ 30 V | 40 V | 50A | -65°C ~ 150°C | 700 mV @ 50 A | |
|
|
MBR8045DIODE SCHOTTKY 45V 80A DO5 |
3,877 | 29.96 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Chassis, Stud Mount | - | - | 1 mA @ 45 V | 45 V | 80A | -55°C ~ 150°C | 650 mV @ 80 A | |
|
GC05MPS12-220SIC DIODE 1200V 5A TO-220-2 |
2,061 | 4.52 |
RFQ |
Datasheet |
Tube | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Not For New Designs | Through Hole | 359pF @ 1V, 1MHz | 0 ns | 4 µA @ 1200 V | 1200 V | 29A (DC) | -55°C ~ 175°C | 1.8 V @ 5 A | |
|

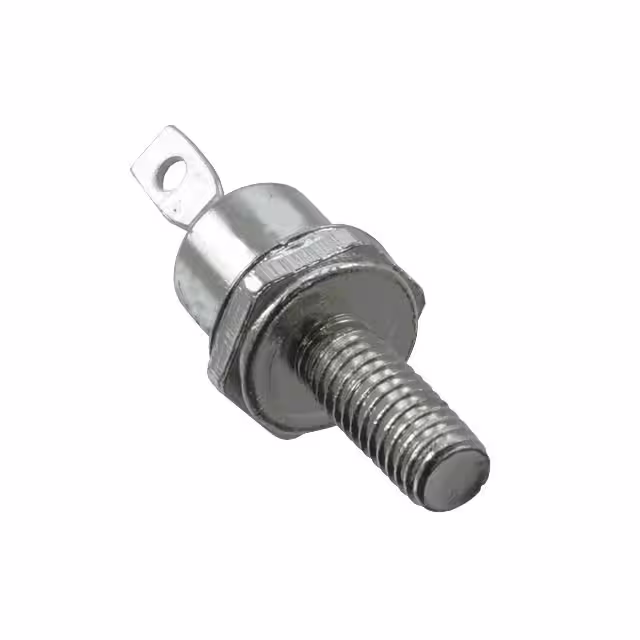

1N1199ARDIODE GEN PURP REV 50V 12A DO4 |
2,748 | 4.81 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 10 µA @ 50 V | 50 V | 12A | -65°C ~ 200°C | 1.1 V @ 12 A | |
|

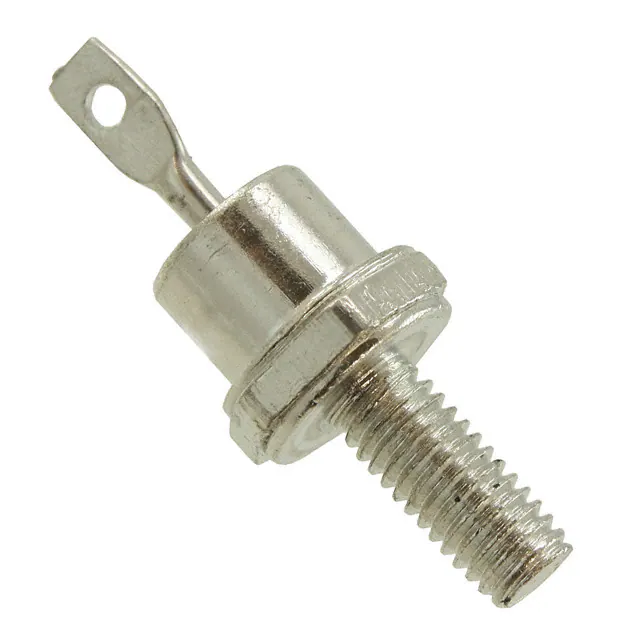

1N1206ADIODE GEN PURP 600V 12A DO4 |
3,019 | 4.81 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 10 µA @ 50 V | 600 V | 12A | -65°C ~ 200°C | 1.1 V @ 12 A | |
|
1N1206ARDIODE GEN PURP REV 600V 12A DO4 |
3,195 | 4.81 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 10 µA @ 50 V | 600 V | 12A | -65°C ~ 200°C | 1.1 V @ 12 A | |
|
1N3671ARDIODE GEN PURP REV 800V 12A DO4 |
3,525 | 4.81 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 10 µA @ 50 V | 800 V | 12A | -65°C ~ 200°C | 1.1 V @ 12 A | |
|
1N3673ADIODE GEN PURP 1KV 12A DO4 |
2,232 | 4.81 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 10 µA @ 50 V | 1000 V | 12A | -65°C ~ 200°C | 1.1 V @ 12 A | |
|
1N1199ADIODE GEN PURP 50V 12A DO4 |
2,680 | 4.81 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 10 µA @ 50 V | 50 V | 12A | -65°C ~ 200°C | 1.1 V @ 12 A | |
|
|
1N1200ARDIODE GEN PURP REV 100V 12A DO4 |
2,831 | 4.81 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 10 µA @ 50 V | 100 V | 12A | -65°C ~ 200°C | 1.1 V @ 12 A | |
|
|
1N1202ADIODE GEN PURP 200V 12A DO4 |
3,672 | 4.81 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 10 µA @ 50 V | 200 V | 12A | -65°C ~ 200°C | 1.1 V @ 12 A | |
|
|
1N1204ADIODE GEN PURP 400V 12A DO4 |
2,285 | 4.81 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 10 µA @ 50 V | 400 V | 12A | -65°C ~ 200°C | 1.1 V @ 12 A | |
|
1N1204ARDIODE GEN PURP REV 400V 12A DO4 |
2,374 | 4.81 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 10 µA @ 50 V | 400 V | 12A | -65°C ~ 200°C | 1.1 V @ 12 A | |
|
1N3671ADIODE GEN PURP 800V 12A DO4 |
2,537 | 4.81 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 10 µA @ 50 V | 800 V | 12A | -65°C ~ 200°C | 1.1 V @ 12 A | |
|
|
S12BRDIODE GEN PURP REV 100V 12A DO4 |
2,835 | 4.81 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 10 µA @ 50 V | 100 V | 12A | -65°C ~ 175°C | 1.1 V @ 12 A | |
|
S12DDIODE GEN PURP 200V 12A DO4 |
3,039 | 4.81 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 10 µA @ 50 V | 200 V | 12A | -65°C ~ 175°C | 1.1 V @ 12 A | |
|
|
S12DRDIODE GEN PURP REV 200V 12A DO4 |
2,220 | 4.81 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 10 µA @ 50 V | 200 V | 12A | -65°C ~ 175°C | 1.1 V @ 12 A | |
|
|
S12GDIODE GEN PURP 400V 12A DO4 |
2,822 | 4.81 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 10 µA @ 50 V | 400 V | 12A | -65°C ~ 175°C | 1.1 V @ 12 A |
