| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MBR7530DIODE SCHOTTKY 30V 75A DO5 |
2,421 | 23.28 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Chassis, Stud Mount | - | - | 5 mA @ 20 V | 30 V | 75A | -65°C ~ 150°C | 650 mV @ 75 A | |
|
|
MBR7535DIODE SCHOTTKY 35V 75A DO5 |
3,565 | 23.28 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Chassis, Stud Mount | - | - | 1 mA @ 35 V | 35 V | 75A | -55°C ~ 150°C | 750 mV @ 75 A | |
|
|
MBR7540DIODE SCHOTTKY 40V 75A DO5 |
3,950 | 23.28 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Chassis, Stud Mount | - | - | 5 mA @ 20 V | 40 V | 75A | -65°C ~ 150°C | 650 mV @ 75 A | |
|
|
MBR7545DIODE SCHOTTKY 45V 75A DO5 |
2,960 | 23.28 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Chassis, Stud Mount | - | - | 1 mA @ 45 V | 45 V | 75A | -55°C ~ 150°C | 650 mV @ 75 A | |
|
|
MBR7560DIODE SCHOTTKY 60V 75A DO5 |
2,682 | 23.28 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Chassis, Stud Mount | - | - | 1 mA @ 60 V | 60 V | 75A | -55°C ~ 150°C | 750 mV @ 75 A | |
|
|
MBR7580DIODE SCHOTTKY 80V 75A DO5 |
2,320 | 23.28 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Chassis, Stud Mount | - | - | 1 mA @ 80 V | 80 V | 75A | -55°C ~ 150°C | 840 mV @ 75 A | |
|
|
MBR80100DIODE SCHOTTKY 100V 80A DO5 |
2,426 | 23.60 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Chassis, Stud Mount | - | - | 1 mA @ 100 V | 100 V | 80A | -55°C ~ 150°C | 840 mV @ 80 A | |
|
|
MBR8020DIODE SCHOTTKY 20V 80A DO5 |
3,226 | 23.60 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Chassis, Stud Mount | - | - | 1 mA @ 20 V | 20 V | 80A | -55°C ~ 150°C | 750 mV @ 80 A | |
|
|
MBR8030DIODE SCHOTTKY 30V 80A DO5 |
3,464 | 23.60 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Chassis, Stud Mount | - | - | 1 mA @ 30 V | 30 V | 80A | -55°C ~ 150°C | 750 mV @ 80 A | |
|
|
MBR8035DIODE SCHOTTKY 35V 80A DO5 |
2,773 | 23.60 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Chassis, Stud Mount | - | - | 1 mA @ 35 V | 35 V | 80A | -65°C ~ 150°C | 750 mV @ 80 A | |
|
|
MBR8040DIODE SCHOTTKY 40V 80A DO5 |
3,520 | 23.60 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Chassis, Stud Mount | - | - | 1 mA @ 35 V | 40 V | 80A | -55°C ~ 150°C | 750 mV @ 80 A | |
|
|
MBR8060DIODE SCHOTTKY 60V 80A DO5 |
3,925 | 23.60 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Chassis, Stud Mount | - | - | 5 mA @ 20 V | 60 V | 80A | -55°C ~ 150°C | 750 mV @ 80 A | |
|
|
MBR8080DIODE SCHOTTKY 80V 80A DO5 |
2,892 | 23.60 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Chassis, Stud Mount | - | - | 1 mA @ 80 V | 80 V | 80A | -55°C ~ 150°C | 840 mV @ 80 A | |
|
|
FR12BR02DIODE GEN PURP REV 100V 12A DO4 |
2,872 | 10.48 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | 200 ns | 25 µA @ 100 V | 100 V | 12A | -65°C ~ 150°C | 800 mV @ 12 A | |
|
|
FR12DR02DIODE GEN PURP REV 200V 12A DO4 |
3,070 | 10.48 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | 200 ns | 25 µA @ 100 V | 200 V | 12A | -65°C ~ 150°C | 800 mV @ 12 A | |
|
|
FR12GR02DIODE GEN PURP REV 400V 12A DO4 |
2,489 | 10.48 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | 200 ns | 25 µA @ 100 V | 400 V | 12A | -65°C ~ 150°C | 800 mV @ 12 A | |
|

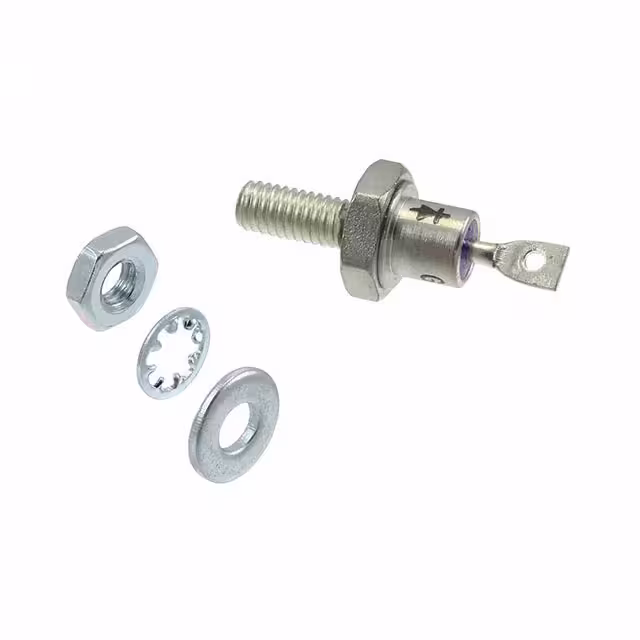

FR12JR02DIODE GEN PURP REV 600V 12A DO4 |
3,666 | 10.48 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | 250 ns | 25 µA @ 100 V | 600 V | 12A | -65°C ~ 150°C | 800 mV @ 12 A | |
|
|
S380ZDIODE GEN PURP 2KV 380A DO205 |
2,111 | 87.82 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 10 µA @ 1600 V | 2000 V | 380A | -60°C ~ 180°C | 1.2 V @ 380 A | |
|
|
FR20A02DIODE GEN PURP 50V 20A DO5 |
3,006 | 10.82 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | 200 ns | 25 µA @ 50 V | 50 V | 20A | -40°C ~ 125°C | 1 V @ 20 A | |
|
|
FR20B02DIODE GEN PURP 100V 20A DO5 |
3,745 | 10.82 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | 200 ns | 25 µA @ 50 V | 100 V | 20A | -40°C ~ 125°C | 1 V @ 20 A |
