| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UF4003UF Rect, 200V, 1.00A, 50ns |
3,801 | 0.07 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 50 ns | 5 µA @ 200 V | 200 V | 1A | -50°C ~ 175°C | 1 V @ 1 A | |
|
SD101CWSchottkyD, 40V, 0.015A |
2,637 | 0.20 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 2.2pF @ 0V, 1MHz | 1 ns | 200 nA @ 30 V | 40 V | 15mA | -55°C ~ 125°C | 900 mV @ 15 mA | |
|
SK34SMBSchottkyD, 40V, 3A |
2,744 | 0.34 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 100 µA @ 40 V | 40 V | 3A | -50°C ~ 150°C | 550 mV @ 3 A | |
|
S1M-AQST Rect, 1000V, 1A |
2,068 | 0.07 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1.5 µs | 5 µA @ 1000 V | 1000 V | 1A | -50°C ~ 150°C | 1.1 V @ 1 A | |
|
|
SD101AWSchottkyD, 60V, 0.015A |
2,329 | 0.20 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 2pF @ 0V, 1MHz | 1 ns | 200 nA @ 50 V | 60 V | 15mA | -55°C ~ 125°C | 1 V @ 15 mA | |
|
SK36-AQSchottkyD, 60V, 3A |
2,198 | 0.34 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 30 µA @ 60 V | 60 V | 3A | -50°C ~ 150°C | 750 mV @ 3 A | |
|
S1J-AQST Rect, 600V, 1A |
2,087 | 0.07 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1.5 µs | 5 µA @ 600 V | 600 V | 1A | -50°C ~ 150°C | 1.1 V @ 1 A | |
|
|
SD101BWSchottkyD, 50V, 0.015A |
2,941 | 0.20 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 2.1pF @ 0V, 1MHz | 1 ns | 200 nA @ 40 V | 50 V | 15mA | -55°C ~ 125°C | 950 mV @ 15 mA | |
|
S5MST Rect, 1000V, 5A |
3,909 | 0.34 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1.5 µs | 10 µA @ 1000 V | 1000 V | 8A | -50°C ~ 150°C | 1.1 V @ 5 A | |
|

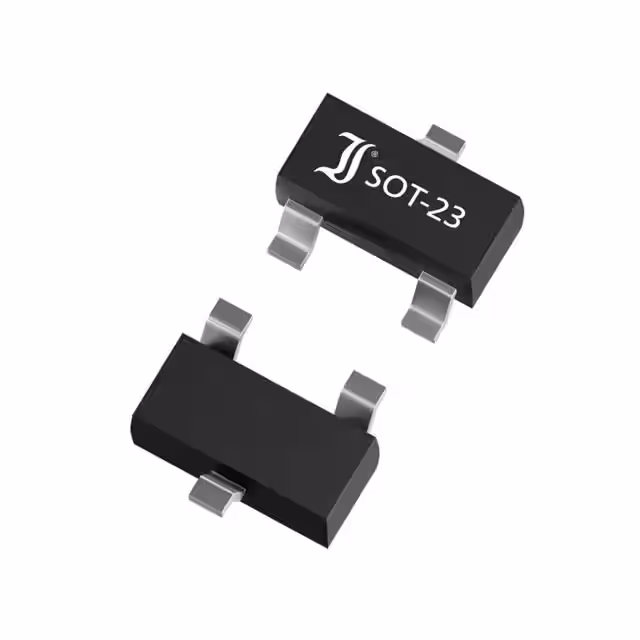

MMBTRC101SS-AQDigital Transt. SOT-23, 50V |
2,272 | 0.07 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | - | Standard | Active | - | - | - | - | 50 V | - | - | - | |
|
RGP30KFast Rect. 800V, 3.00A, 500ns |
3,349 | 0.20 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | - | Standard | Active | - | - | 500 ns | - | 800 V | 3A | - | - | |
|
FR3AFast Rect., 50V, 3.00A, 150ns |
2,331 | 0.34 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | - | Standard | Active | - | - | 150 ns | - | 50 V | 3A | - | - | |
|
BAS70SchottkyD, 70V, 0.07A |
2,137 | 0.08 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 2pF @ 0V, 1MHz | 5 ns | 100 nA @ 50 V | 70 V | 70mA | -55°C ~ 150°C | 1 V @ 15 mA | |
|
SM518ST Rect, 1800V, 1A |
2,060 | 0.20 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1.5 µs | 5 µA @ 1800 V | 1800 V | 1A | -50°C ~ 175°C | 1.1 V @ 1 A | |
|
|
BYG10JST Rect, 600V, 1.5A |
3,897 | 0.08 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Avalanche | Active | Surface Mount | - | 1.5 µs | 5 µA @ 600 V | 600 V | 1.5A | -50°C ~ 150°C | 1.15 V @ 1.5 A | |
|
ER2DSMASF Rect, 200V, 2.000A, 35ns |
2,160 | 0.20 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 35 ns | 5 µA @ 200 V | 200 V | 2A | -50°C ~ 150°C | 1 V @ 2 A | |
|
SD103CWSchottky, 20V, 0.35A, 0.6V, 2.0A |
3,232 | 0.08 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 50pF @ 0V, 1MHz | 10 ns | 5 µA @ 10 V | 16 V | 350mA | -55°C ~ 125°C | 600 mV @ 200 mA | |
|
|
SK3H10SMBSchottkyD, 100V, 3A |
3,532 | 0.34 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 2 µA @ 100 V | 100 V | 3A | -50°C ~ 175°C | 820 mV @ 3 A | |
|
|
FR2GFast Rect., 400V, 2.00A, 150ns |
2,220 | 0.20 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | - | Standard | Active | - | - | 150 ns | - | 400 V | 2A | - | - | |
|
MMBTRC118SS-AQDigital Transt. SOT-23, 50V |
2,515 | 0.08 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | - | Standard | Active | - | - | - | - | 50 V | - | - | - |
