| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMS390SchottkyD, 90V, 3A |
3,826 | 0.52 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 500 µA @ 90 V | 90 V | 3A | -50°C ~ 150°C | 790 mV @ 3 A | |
|
BYP35A6ST Rect, 600V, 35A |
3,191 | 2.19 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 100 µA @ 600 V | 600 V | 35A | -50°C ~ 200°C | 1.1 V @ 35 A | |
|

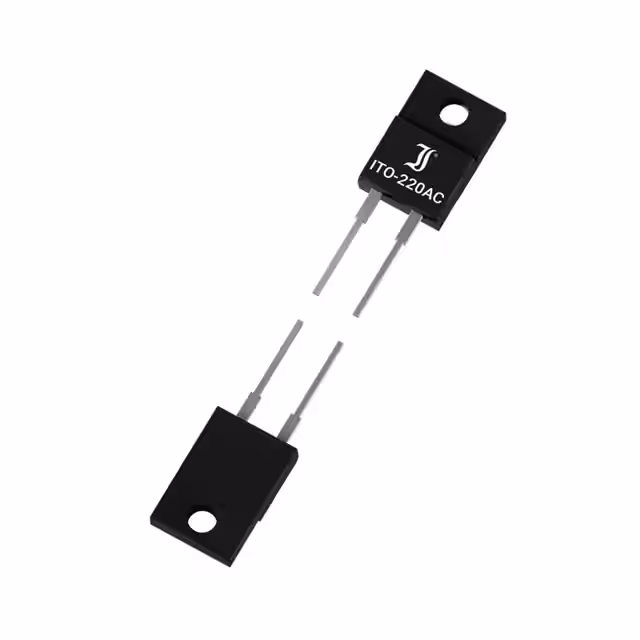

ERJ3006UF Rect, 600V, 30A, 50ns |
2,669 | 1.96 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 50 ns | 50 µA @ 600 V | 600 V | 30A | -50°C ~ 150°C | 1.2 V @ 30 A | |
|
|
BYP35K6ST Rect, 600V, 35A |
3,357 | 2.19 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 100 µA @ 600 V | 600 V | 35A | -50°C ~ 200°C | 1.1 V @ 35 A | |
|
|
BYP35A05ST Rect, 50V, 35A |
3,921 | 2.19 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 100 µA @ 50 V | 50 V | 35A | -50°C ~ 200°C | 1.1 V @ 35 A | |
|
FT2000AGFast Rect., 400V, 20.00A, 200ns |
3,961 | 1.97 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 200 ns | 5 µA @ 400 V | 400 V | 20A | -50°C ~ 150°C | 960 mV @ 20 A | |
|
SB540SchottkyD, 40V, 5A |
2,473 | 0.52 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 500 µA @ 40 V | 40 V | 5A | -50°C ~ 150°C | 550 mV @ 5 A | |
|
|
BYP35K05ST Rect, 50V, 35A |
2,987 | 2.19 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 100 µA @ 50 V | 50 V | 35A | -50°C ~ 200°C | 1.1 V @ 35 A | |
|
P2000DTLST Rect, 200V, 20A |
2,022 | 1.97 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 10 µA @ 200 V | 200 V | 20A | -50°C ~ 175°C | 1.1 V @ 20 A | |
|
|
SB560SchottkyD, 60V, 5A |
2,609 | 0.52 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 500 µA @ 60 V | 60 V | 5A | -50°C ~ 150°C | 670 mV @ 5 A | |
|
|
BYP35A3ST Rect, 300V, 35A |
3,073 | 2.19 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 100 µA @ 300 V | 300 V | 35A | -50°C ~ 200°C | 1.1 V @ 35 A | |
|
|
P2000GTLST Rect, 400V, 20A |
3,259 | 1.99 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 10 µA @ 400 V | 400 V | 20A | -50°C ~ 175°C | 1.1 V @ 20 A | |
|
SK515SchottkyD, 150V, 5A |
3,574 | 0.52 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 200 µA @ 150 V | 150 V | 5A | -50°C ~ 150°C | 870 mV @ 5 A | |
|
|
BYP35K2ST Rect, 200V, 35A |
3,745 | 2.19 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 100 µA @ 200 V | 200 V | 35A | -50°C ~ 200°C | 1.1 V @ 35 A | |
|
S3G-AQ-CTCUT-TAPE VERSION. STANDARD RECO |
3,593 | 1.99 |
RFQ |
Datasheet |
Strip | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1.5 µs | 5 µA @ 400 V | 400 V | 3A | -50°C ~ 150°C | 1 V @ 3 A | |
|
|
SMS5100-3GSchottkyD, 100V, 5A |
3,010 | 0.53 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 2 µA @ 100 V | 100 V | 5A | -50°C ~ 150°C | 790 mV @ 5 A | |
|
SB1250Schottky, 50V, 12A |
2,322 | 2.22 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 500 µA @ 50 V | 50 V | 12A | -50°C ~ 150°C | 680 mV @ 12 A | |
|
|
P2000JTLST Rect, 600V, 20A |
2,790 | 2.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 10 µA @ 600 V | 600 V | 20A | -50°C ~ 175°C | 1.1 V @ 20 A | |
|
|
SB590SchottkyD, 90V, 5A |
2,836 | 0.53 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 500 µA @ 90 V | 90 V | 5A | -50°C ~ 150°C | 790 mV @ 5 A | |
|
S3JSMB-AQ-CTCUT-TAPE VERSION. STANDARD RECO |
2,526 | 2.26 |
RFQ |
Datasheet |
Strip | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1.5 µs | 5 µA @ 600 V | 600 V | 3A | -50°C ~ 150°C | 1.1 V @ 3 A |
