| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRL1J-Q-CTCUT-TAPE VERSION. STANDARD RECO |
2,181 | 0.56 |
RFQ |
Datasheet |
Strip | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1 µs | 1 µA @ 600 V | 600 V | 1A | -50°C ~ 150°C | 1.1 V @ 1 A | |
|
S3M-AQ-CTCUT-TAPE VERSION. STANDARD RECO |
3,324 | 2.02 |
RFQ |
Datasheet |
Strip | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1.5 µs | 5 µA @ 1000 V | 1000 V | 3A | -50°C ~ 150°C | 1 V @ 3 A | |
|
S8MST Rect, 1000V, 8A |
3,218 | 0.57 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1.5 µs | 10 µA @ 1000 V | 1000 V | 8A | -50°C ~ 150°C | 980 mV @ 8 A | |
|
BYP25A1ST Rect, 100V, 25A |
3,620 | 2.05 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 100 µA @ 100 V | 100 V | 25A | -50°C ~ 215°C | 1.1 V @ 25 A | |
|
PPS5150Schottky, 150V, 5.0A, 0.85V |
3,294 | 0.57 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 15 µA @ 150 V | 150 V | 5A | -50°C ~ 150°C | 850 mV @ 5 A | |
|
|
BYP25K05ST Rect, 50V, 25A |
3,131 | 2.05 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 100 µA @ 50 V | 50 V | 25A | -50°C ~ 215°C | 1.1 V @ 25 A | |
|
SL84-3GSchottkyD, 40V, 8A |
3,414 | 0.57 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 140 µA @ 40 V | 40 V | 8A | -50°C ~ 150°C | 490 mV @ 8 A | |
|
|
BYP25K6ST Rect, 600V, 25A |
2,481 | 2.05 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 100 µA @ 600 V | 600 V | 25A | -50°C ~ 215°C | 1.1 V @ 25 A | |
|

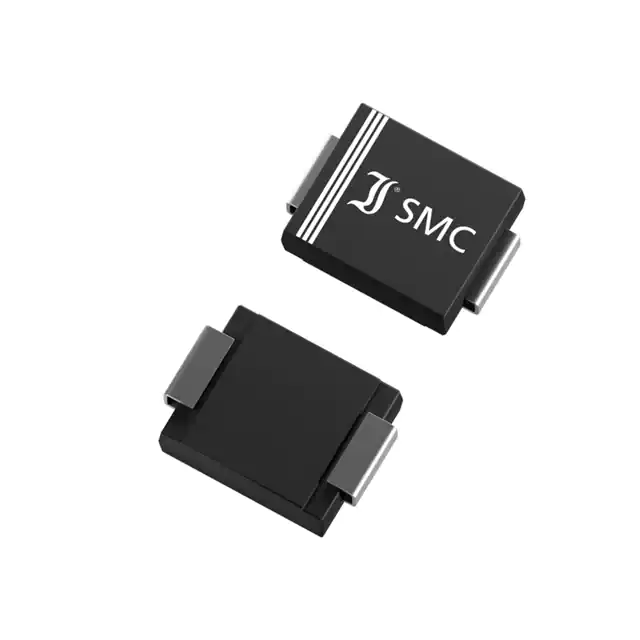

SK84-AQSchottky Diode, SMC, 40V, 8A |
2,725 | 0.58 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 200 µA @ 40 V | 40 V | 8A | -50°C ~ 150°C | 550 mV @ 8 A | |
|
|
BYP25A05ST Rect, 50V, 25A |
3,687 | 2.05 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 100 µA @ 50 V | 50 V | 25A | -50°C ~ 215°C | 1.1 V @ 25 A | |
|
|
BYP25K3ST Rect, 300V, 25A |
3,397 | 2.05 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 100 µA @ 300 V | 300 V | 25A | -50°C ~ 215°C | 1.1 V @ 25 A | |
|
F11K120Fast Rect. 120V, 11.00A, 350ns |
3,416 | 0.58 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 350 ns | 5 µA @ 120 V | 120 V | 11A | -50°C ~ 175°C | 1.1 V @ 11 A | |
|
|
BYP25A6ST Rect, 600V, 25A |
2,877 | 2.05 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 100 µA @ 600 V | 600 V | 25A | -50°C ~ 215°C | 1.1 V @ 25 A | |
|
ER2DSMA-AQSuperfastD, 200V, 2A, 35ns |
3,516 | 0.59 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 35 ns | 5 A @ 200 V | 200 V | 2A | -50°C ~ 150°C | 1 V @ 2 µA |
|
|
BYP25K2ST Rect, 200V, 25A |
2,051 | 2.05 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 100 µA @ 200 V | 200 V | 25A | -50°C ~ 215°C | 1.1 V @ 25 A | |
|
SK86-3GSchottky, 60V, 8A |
3,981 | 0.59 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 50 µA @ 60 V | 60 V | 8A | -50°C ~ 150°C | 550 mV @ 8 A | |
|
|
BYP25A4ST Rect, 400V, 25A |
2,830 | 2.05 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 100 µA @ 400 V | 400 V | 25A | -50°C ~ 215°C | 1.1 V @ 25 A | |
|
|
BYP25A3ST Rect, 300V, 25A |
2,526 | 2.05 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 100 µA @ 300 V | 300 V | 25A | -50°C ~ 215°C | 1.1 V @ 25 A | |
|
|
F5K120Fast Rect. 120V, 5.00A, 350ns |
3,850 | 0.59 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 350 ns | 5 µA @ 120 V | 120 V | 5A | -50°C ~ 175°C | 990 mV @ 5 A | |
|
|
BYP25A2ST Rect, 200V, 25A |
3,635 | 2.05 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 100 µA @ 200 V | 200 V | 25A | -50°C ~ 215°C | 1.1 V @ 25 A |
