| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

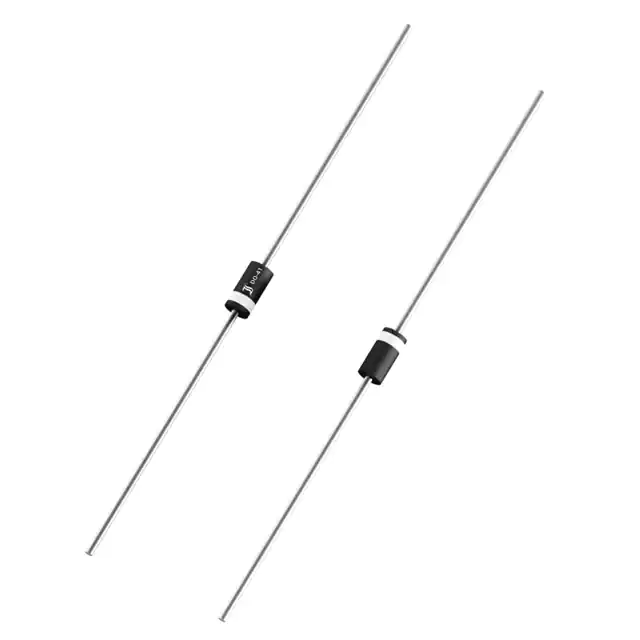

MUR140SF Rect, 400V, 1.00A, 50ns |
2,163 | 0.19 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 75 ns | 5 µA @ 400 V | 400 V | 1A | -50°C ~ 175°C | 1.25 V @ 1 A | |
|
MBR360Schottky, 60V, 3A, 0.74V, 70A |
2,922 | 0.33 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 500 µA @ 60 V | 60 V | 3A | -50°C ~ 150°C | 740 mV @ 3 A | |
|
UST1KUF Rect, 800V, 1.00A, 75ns |
2,782 | 0.07 |
RFQ |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 75 ns | 5 µA @ 800 V | 800 V | 1A | -50°C ~ 150°C | 1.7 V @ 1 A | ||
|
FR2BFast Rect., 100V, 2.00A, 150ns |
3,370 | 0.19 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | - | Standard | Active | - | - | 150 ns | - | 100 V | 2A | - | - | |
|
|
UST1BUF Rect, 100V, 1.00A, 50ns |
2,679 | 0.07 |
RFQ |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 50 ns | 5 µA @ 100 V | 100 V | 1A | -50°C ~ 150°C | 1 V @ 1 A | ||
|
SDB13HS-AQSchottkyD, 30V, 1A |
3,897 | 0.19 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 30pF @ 10V, 1MHz | - | 200 µA @ 30 V | 30 V | 1A | -40°C ~ 125°C | 470 mV @ 1 A | |
|
1N5399Std Rect, 1000V, 1.5A |
3,753 | 0.07 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 5 µA @ 1000 V | 1000 V | 1.5A | -50°C ~ 175°C | 1.3 V @ 1.5 A | |
|
EAL1JSF Rect, 600V, 1.00A, 75ns |
3,863 | 0.19 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Avalanche | Active | Surface Mount | - | 75 ns | 3 µA @ 600 V | 600 V | 1A | -50°C ~ 175°C | 1.8 V @ 1 A | |
|
|
1N5062Std Rect, 800V, 2A |
3,977 | 0.07 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 5 µA @ 800 V | 800 V | 2A | -50°C ~ 150°C | 1.1 V @ 2 A | |
|
SFE1DSF Rect, 200V, 1.00A, 50ns |
3,001 | 0.19 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 50 ns | 5 µA @ 200 V | 200 V | 1A | -50°C ~ 150°C | 1 V @ 1 A | |
|
SK14Schottky D, 40V, 1.00A |
2,143 | 0.07 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 500 µA @ 40 V | 40 V | 1A | -50°C ~ 150°C | 500 mV @ 1 A | |
|
|
FR2DFast Rect., 200V, 2.00A, 150ns |
3,744 | 0.19 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | - | Standard | Active | - | - | 150 ns | - | 200 V | 2A | - | - | |
|
|
SK13Schottky D, 30V, 1.00A |
3,579 | 0.07 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 500 µA @ 30 V | 30 V | 1A | -50°C ~ 150°C | 500 mV @ 1 A | |
|
|
ER1M-AQSF Rect, 1000V, 1.00A, 75ns |
3,282 | 0.19 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 75 ns | 5 µA @ 1000 V | 1000 V | 1A | -50°C ~ 150°C | 1.7 V @ 1 A |
|
SK36SMA-AQSchottkyD, 60V, 3A |
2,368 | 0.34 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 100 µA @ 60 V | 60 V | 3A | -50°C ~ 150°C | 700 mV @ 3 A | |
|
AM2000ST Rect, 1600V, 1A |
2,804 | 0.20 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Avalanche | Active | Surface Mount | - | 1.5 µs | 5 µA @ 1600 V | 1600 V | 1A | -50°C ~ 150°C | 1.1 V @ 1 A | |
|
|
SK310SMASchottkyD, 100V, 3A |
2,353 | 0.34 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 100 µA @ 100 V | 100 V | 3A | -50°C ~ 150°C | 850 mV @ 3 A | |
|
BYG10DST Rect, 200V, 1.5A |
3,173 | 0.07 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Avalanche | Active | Surface Mount | - | 1.5 µs | 5 µA @ 200 V | 200 V | 1.5A | -50°C ~ 150°C | 1.15 V @ 1.5 A | |
|
|
SM5403ST Rect, 300V, 3A |
2,518 | 0.20 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1.5 µs | 5 µA @ 300 V | 300 V | 3A | -50°C ~ 175°C | 1.2 V @ 3 A | |
|
|
SMS540-3GSchottky, 40V, 5A, 0.50V, 80A |
3,933 | 0.34 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 90 µA @ 40 V | 40 V | 5A | -50°C ~ 150°C | 500 mV @ 5 A |
