| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SKL34-AQSchottkyD, 40V, 3A |
2,275 | 0.27 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 200 µA @ 40 V | 40 V | 3A | -50°C ~ 150°C | 500 mV @ 3 A | |
|

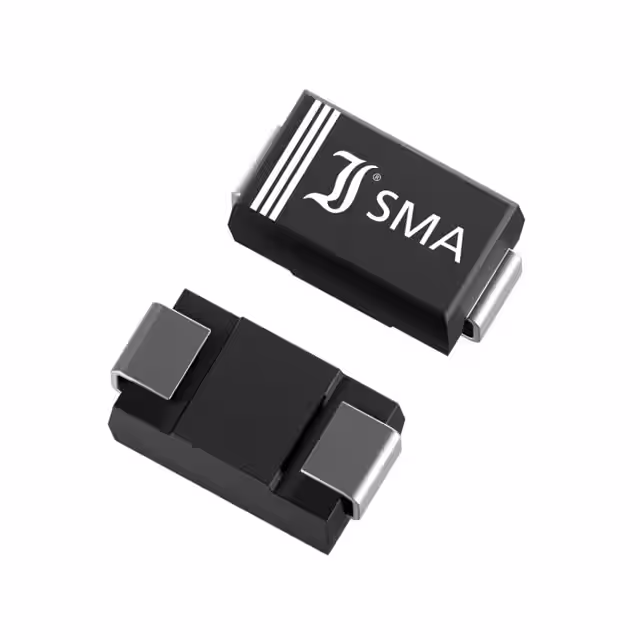

SK115-AQSchottky,150V, 1A, 0.85V, 30A |
2,048 | 0.31 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 20 µA @ 150 V | 150 V | 1A | -50°C ~ 150°C | 850 mV @ 1 A | |
|
SFE1BSF Rect, 100V, 1.00A, 50ns |
2,439 | 0.18 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 50 ns | 5 µA @ 100 V | 100 V | 1A | -50°C ~ 150°C | 1 V @ 1 A | |
|
SFE1MSF Rect, 1000V, 1.00A, 75ns |
3,046 | 0.27 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 75 ns | 5 µA @ 1000 V | 1000 V | 1A | -50°C ~ 150°C | 1.7 V @ 1 A | |
|
S5BST Rect, 100V, 5A |
2,424 | 0.31 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1.5 µs | 10 µA @ 100 V | 100 V | 8A | -50°C ~ 150°C | 1.1 V @ 5 A | |
|
SGL2-60-3GSchottky, 60V, 2A, 0.65V, 20A |
2,650 | 0.18 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 20 µA @ 60 V | 60 V | 2A | -50°C ~ 150°C | 650 mV @ 2 A | |
|
UF5404UF Rect, 400V, 3.00A, 50ns |
2,538 | 0.27 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 50 ns | 5 µA @ 400 V | 400 V | 3A | -50°C ~ 175°C | 1.25 V @ 3 A | |
|
SM5819SchottkyD, 40V, 1A |
2,374 | 0.31 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 1 mA @ 40 V | 40 V | 1A | -50°C ~ 150°C | 900 mV @ 1 A | |
|
2CL72AUF Rect, 10000V, 0.005A, 80ns |
3,721 | 0.27 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Through Hole | - | 80 ns | 2 µA @ 10000 V | 10000 V | 5mA | -40°C ~ 120°C | 45 V @ 10 mA | |
|
|
S3G-AQST Rect, 400V, 3A |
2,281 | 0.31 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1.5 µs | 5 µA @ 400 V | 400 V | 3A | -50°C ~ 150°C | 1 V @ 3 A | |
|
SGL34-90SchottkyD, 90V, 0.5A |
2,833 | 0.28 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 500 µA @ 90 V | 90 V | 500mA | -50°C ~ 150°C | 650 mV @ 500 mA | |
|
|
S3J-AQST Rect, 600V, 3A |
3,079 | 0.31 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1.5 µs | 5 µA @ 600 V | 600 V | 3A | -50°C ~ 150°C | 1 V @ 3 A | |
|
SM5402ST Rect, 200V, 3A |
2,995 | 0.18 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1.5 µs | 5 µA @ 200 V | 200 V | 3A | -50°C ~ 175°C | 1.2 V @ 3 A | |
|
BY500-600Fast Rect. 600V, 5.00A, 200ns |
3,195 | 0.28 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | - | Standard | Active | - | - | 200 ns | - | 600 V | 5A | - | - | |
|
S3M-AQST Rect, 1000V, 3A |
3,755 | 0.31 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1.5 µs | 5 µA @ 1000 V | 1000 V | 3A | -50°C ~ 150°C | 1 V @ 3 A | |
|
ERL1DSF Rect, , 200V, 1.000A, 35ns |
2,583 | 0.18 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 35 ns | 5 µA @ 200 V | 200 V | 1A | -50°C ~ 150°C | 950 mV @ 1 A | |
|
SK34-AQSchottky, 40V, 3A, 0.50V, 100A |
3,281 | 0.28 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 500 µA @ 40 V | 40 V | 3A | -50°C ~ 150°C | 500 mV @ 3 A | |
|

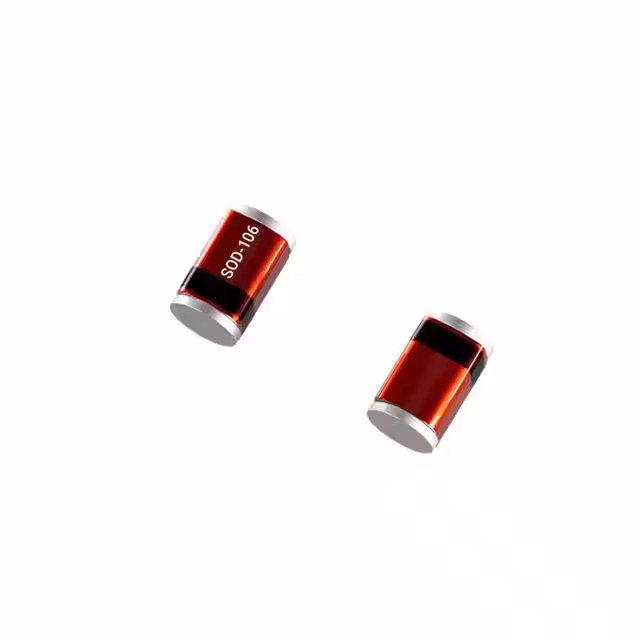

MCL103CSchottkyD, 20V, 0.35A |
3,085 | 0.31 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 50pF @ 0V, 1MHz | 10 ns | 5 µA @ 10 V | 20 V | 350mA | -55°C ~ 125°C | 600 mV @ 200 mA | |
|
|
ERL1JSF Rect, , 600V, 1.000A, 35ns |
3,088 | 0.18 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 35 ns | 5 µA @ 600 V | 600 V | 1A | -50°C ~ 150°C | 1.7 V @ 1 A | |
|
|
SMS160SchottkyD, 60V, 1A |
2,914 | 0.28 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 500 µA @ 60 V | 60 V | 1A | -50°C ~ 150°C | 700 mV @ 1 A |
