| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SGL1-100SchottkyD, 100V, 1A |
2,864 | 0.31 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 500 µA @ 100 V | 100 V | 1A | -50°C ~ 150°C | 820 mV @ 1 A | |
|
ERL1BSF Rect, , 100V, 1.0A, 35ns |
3,299 | 0.18 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 35 ns | 5 µA @ 100 V | 100 V | 1A | -50°C ~ 150°C | 950 mV @ 1 A | |
|
ES1ASF Rect, 50V, 1.00A, 15ns |
2,905 | 0.28 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 15 ns | 5 µA @ 50 V | 50 V | 1A | -50°C ~ 150°C | 920 mV @ 1 A | |
|

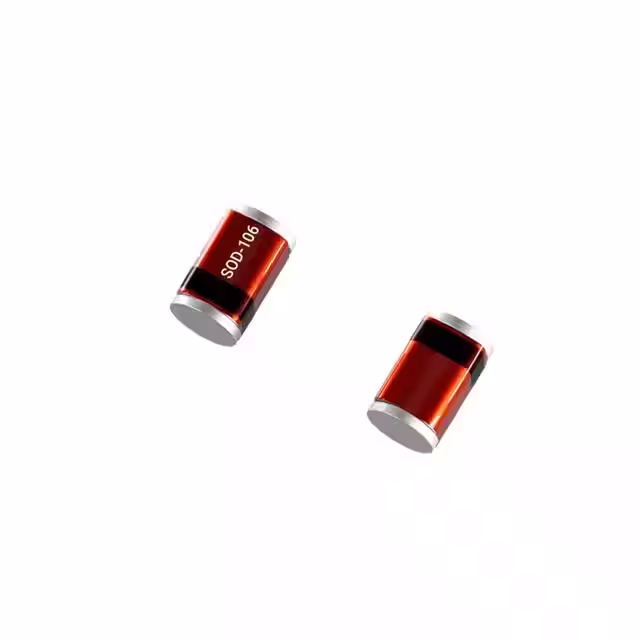

MCL103BSchottkyD, 30V, 0.35A |
3,497 | 0.31 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 50pF @ 0V, 1MHz | 10 ns | 5 µA @ 20 V | 30 V | 350mA | -55°C ~ 125°C | 600 mV @ 200 mA | |
|
BY296Fast Rect. 100V, 2.00A, 500ns |
2,135 | 0.18 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | - | Standard | Active | - | - | 500 ns | - | 100 V | 2A | - | - | |
|
S5DST Rect, 200V, 5A |
3,919 | 0.31 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1.5 µs | 10 µA @ 200 V | 200 V | 8A | -50°C ~ 150°C | 1.1 V @ 5 A | |
|
|
ES1BSF Rect, 100V, 1.00A, 15ns |
3,977 | 0.28 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 15 ns | 5 µA @ 100 V | 100 V | 1A | -50°C ~ 150°C | 920 mV @ 1 A | |
|
|
BY299Fast Rect. 800V, 2.00A, 500ns |
2,183 | 0.18 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | - | Standard | Active | - | - | 500 ns | - | 800 V | 2A | - | - | |
|
GL1B-CTCUT-TAPE VERSION. STANDARD RECO |
2,364 | 0.32 |
RFQ |
Datasheet |
Strip | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1.5 µs | 5 µA @ 100 V | 100 V | 1A | -50°C ~ 175°C | 1.2 V @ 1 A | |
|
SKL32SchottkyD, 20V, 3A |
3,749 | 0.28 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 200 µA @ 20 V | 20 V | 3A | -50°C ~ 150°C | 500 mV @ 3 A | |
|
|
BY297Fast Rect. 200V, 2.00A, 500ns |
2,925 | 0.18 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | - | Standard | Active | - | - | 500 ns | - | 200 V | 2A | - | - | |
|
BAT54WS-AQSchottky, 30V, 0.2A, 0.8V, 0.6A |
2,407 | 0.07 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 10pF @ 0V, 1MHz | 6 ns | 2 µA @ 25 V | 30 V | 200mA | -55°C ~ 150°C | 800 mV @ 100 mA | |
|
|
RGL1MR13Fast Rect. 1000V, 1.00A, 500ns |
3,353 | 0.18 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 500 ns | 5 µA @ 1000 V | 1000 V | 1A | -50°C ~ 175°C | 1.3 V @ 1 A | |
|
S1.5GST Rect, 400V, 1.5A |
3,324 | 0.07 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1.5 µs | 5 µA @ 400 V | 400 V | 1.5A | -50°C ~ 150°C | 1.1 V @ 1 A | |
|
|
SKL110-AQSchottkyD, 100V, 1A |
3,076 | 0.32 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 200 µA @ 100 V | 100 V | 1A | -50°C ~ 150°C | 850 mV @ 1 A | |
|
|
RGL1MFast Rect. 1000V, 1.00A, 500ns |
2,354 | 0.19 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 500 ns | 5 µA @ 1000 V | 1000 V | 1A | -50°C ~ 175°C | 1.3 V @ 1 A | |
|
|
S5GST Rect, 400V, 5A |
3,217 | 0.32 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1.5 µs | 10 µA @ 400 V | 400 V | 8A | -50°C ~ 150°C | 1.1 V @ 5 A | |
|
SDB14HS-AQSchottky, 40V, 1A, 0.52V, 4.40A |
3,806 | 0.19 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 30pF @ 10V, 1MHz | - | 200 µA @ 40 V | 40 V | 1A | -40°C ~ 125°C | 520 mV @ 700 mA | |
|
S1A-CTCUT-TAPE VERSION. STANDARD RECO |
3,661 | 0.32 |
RFQ |
Datasheet |
Strip | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1.5 µs | 5 µA @ 50 V | 50 V | 1A | -50°C ~ 150°C | 1.1 V @ 1 A | |
|

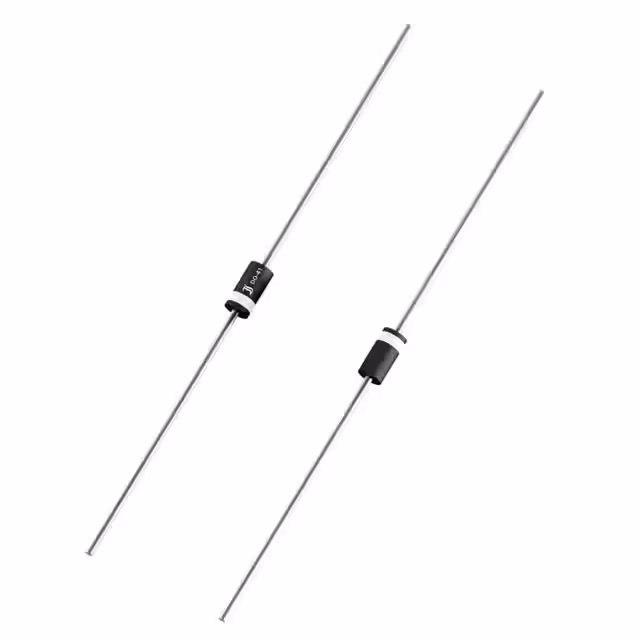

HV2HV Rect., 2000V, 0.50A, 400ns |
2,143 | 0.19 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | - | Standard | Active | - | - | 400 ns | - | 2000 V | 500mA | - | - |
