| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PPS5100SCHOTTKY TO-277B 100V 20A |
5,000 | 0.27 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 15 µA @ 100 V | 100 V | 5A | -50°C ~ 150°C | 820 mV @ 5 A | |
|

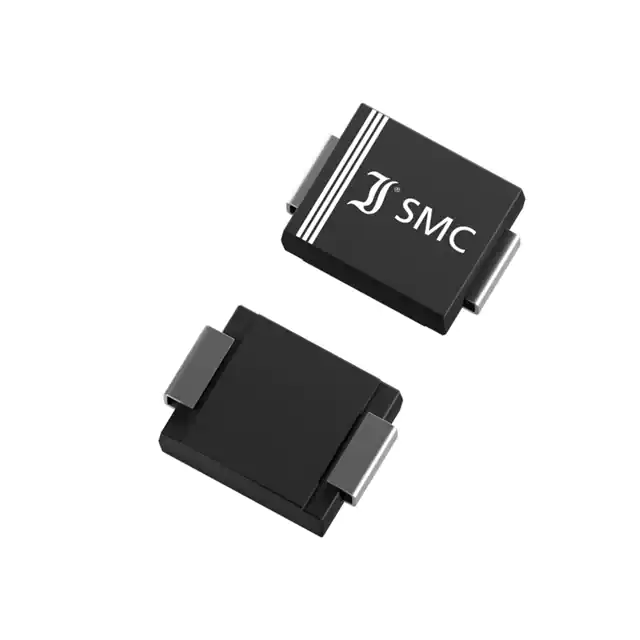

SK85SCHOTTKY SMC 50V 8A |
81,000 | 0.27 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 200 µA @ 50 V | 50 V | 8A | -50°C ~ 150°C | 700 mV @ 8 A | |
|
SK86-3GSCHOTTKY SMC 60V 8A |
3,000 | 0.27 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 50 µA @ 60 V | 60 V | 8A | -50°C ~ 150°C | 550 mV @ 8 A | |
|
|
SK86SCHOTTKY SMC 60V 8A |
3,000 | 0.27 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 200 µA @ 60 V | 60 V | 8A | -50°C ~ 150°C | 700 mV @ 8 A | |
|
|
SK420SCHOTTKY SMC 200V 4A |
5,980 | 0.27 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 100 µA @ 200 V | 200 V | 4A | -50°C ~ 150°C | 860 mV @ 4 A | |
|
SK3H15SMB-AQSCHOTTKY SMB 150V 3A |
3,000 | 0.27 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 2 µA @ 150 V | 150 V | 3A | -50°C ~ 175°C | 820 mV @ 3 A | |
|
F5K120DIODE FR DO-201 120V 5A |
1,700 | 0.27 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 350 ns | 5 µA @ 120 V | 120 V | 5A | -50°C ~ 175°C | 990 mV @ 5 A | |
|
|
S3TDIODE STD SMC 1300V 3A |
411,000 | 0.28 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1.5 µs | 5 µA @ 1300 V | 1300 V | 3A | -50°C ~ 150°C | 1.15 V @ 3 A | |
|

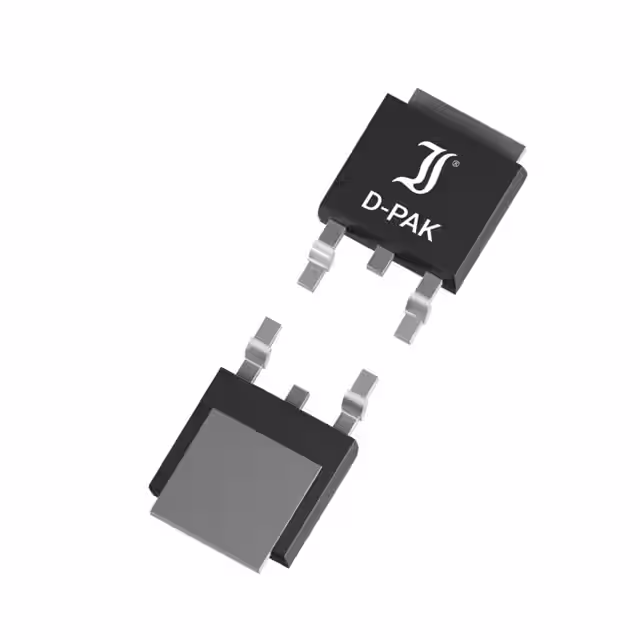

SK1040D1SCHOTTKY DPAK 40V 10A |
20,990 | 0.28 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 300 µA @ 40 V | 40 V | 10A | -50°C ~ 150°C | 550 mV @ 10 A | |
|
SK1060D1SCHOTTKY DPAK 60V 10A |
14,995 | 0.28 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 200 µA @ 60 V | 60 V | 10A | -50°C ~ 150°C | 700 mV @ 10 A | |
|
|
SK1020D1SCHOTTKY DPAK 20V 10A |
3,000 | 0.28 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 300 µA @ 20 V | 20 V | 10A | -50°C ~ 150°C | 550 mV @ 10 A | |
|
|
SK1050D1SCHOTTKY DPAK 50V 10A |
3,000 | 0.28 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 200 µA @ 50 V | 50 V | 10A | -50°C ~ 150°C | 700 mV @ 10 A | |
|
|
SK1045D1SCHOTTKY DPAK 45V 10A |
3,000 | 0.28 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 300 µA @ 45 V | 45 V | 10A | -50°C ~ 150°C | 550 mV @ 10 A | |
|
|
SK1030D1SCHOTTKY DPAK 30V 10A |
3,000 | 0.28 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 300 µA @ 30 V | 30 V | 10A | -50°C ~ 150°C | 550 mV @ 10 A | |
|
|
SK1080D1SCHOTTKY DPAK 80V 10A |
3,000 | 0.28 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 200 µA @ 80 V | 80 V | 10A | -50°C ~ 150°C | 830 mV @ 10 A | |
|
|
SK10100D1SCHOTTKY DPAK 100V 10A |
3,000 | 0.28 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 200 µA @ 100 V | 100 V | 10A | -50°C ~ 150°C | 830 mV @ 10 A | |
|
BY880-600DIODE STD D5.4X7.5 600V 8A |
1,250 | 0.28 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 5 µA @ 600 V | 600 V | 8A | -50°C ~ 175°C | 1.1 V @ 8 A | |
|
SB860-3GSCHOTTKY D5.4X7.5 60V 8A |
5,000 | 0.29 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 50 µA @ 60 V | 60 V | 8A | -50°C ~ 150°C | 550 mV @ 8 A | |
|
BY2000DIODE STD DO-201 2000V 3A |
1,700 | 0.29 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 5 µA @ 2000 V | 2000 V | 3A | -50°C ~ 150°C | 1.1 V @ 3 A | |
|
|
BY880-800DIODE STD D5.4X7.5 800V 8A |
1,250 | 0.29 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 5 µA @ 800 V | 800 V | 8A | -50°C ~ 175°C | 1.1 V @ 8 A |
