| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SI-A1125HV DIODE D55X23 3200V 6A |
3,005 | 60.59 |
RFQ |
Datasheet |
Box | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | 1.5 µs | 5 µA @ 3200 V | 3200 V | 6A | -50°C ~ 150°C | 3 V @ 5 A | |
|
SI-A1750HV DIODE D55X23 4800V 4A |
3,281 | 62.15 |
RFQ |
Datasheet |
Box | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | 1.5 µs | 5 µA @ 4800 V | 4800 V | 4A | -50°C ~ 150°C | 4 V @ 4 A | |
|
|

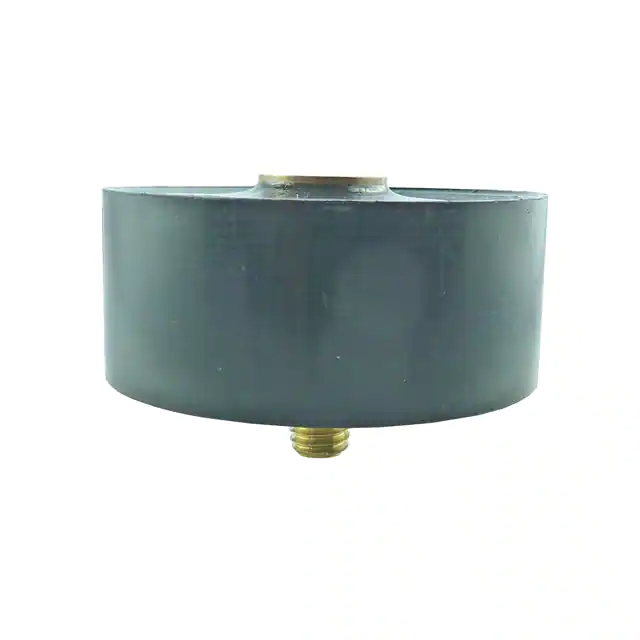

SI-A3000HV DIODE D55X23 8000V 2.5A |
3,388 | 64.50 |
RFQ |
Datasheet |
Box | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | 1.5 µs | 5 µA @ 8000 V | 8000 V | 2.5A | -50°C ~ 150°C | 6 V @ 3 A | |
|
|
SI-A8000HV DIODE D55X23 24000V 1.8A |
3,100 | 68.89 |
RFQ |
Datasheet |
Box | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | 1.5 µs | 5 µA @ 24000 V | 24000 V | 1.8A | -50°C ~ 150°C | 15 V @ 2 A | |
|
P600SDIODE STD D8X7.5 1200V 6A |
1,000 | 0.29 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 10 µA @ 1200 V | 1200 V | 6A | -50°C ~ 175°C | 1.1 V @ 6 A | |
|
|
FE6ADIODE SFR D8X7.5 50V 6A |
1,000 | 0.33 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 50 ns | 5 µA @ 50 V | 50 V | 6A | -50°C ~ 175°C | 980 mV @ 5 A | |
|
|
UF600BDIODE UFR D8X7.5 100V 6A |
1,000 | 0.34 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 75 ns | 10 µA @ 100 V | 100 V | 6A | -50°C ~ 175°C | 1 V @ 5 A | |
|
|
UF600GDIODE UFR D8X7.5 400V 6A |
1,000 | 0.34 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 75 ns | 10 µA @ 400 V | 400 V | 6A | -50°C ~ 175°C | 1.25 V @ 5 A | |
|
|
FE6BDIODE SFR D8X7.5 100V 6A |
1,000 | 0.34 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 50 ns | 5 µA @ 100 V | 100 V | 6A | -50°C ~ 175°C | 980 mV @ 5 A | |
|
P600UDIODE STD D8X7.5 1400V 6A |
1,000 | 0.40 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 10 µA @ 1400 V | 1400 V | 6A | -50°C ~ 175°C | 1.1 V @ 6 A | |
|
|
FE6FDIODE SFR D8X7.5 300V 6A |
1,000 | 0.40 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 50 ns | 5 µA @ 300 V | 300 V | 6A | -50°C ~ 175°C | 1 V @ 5 A | |
|
|
FE6GDIODE SFR D8X7.5 400V 6A |
1,000 | 0.42 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 50 ns | 5 µA @ 400 V | 400 V | 6A | -50°C ~ 175°C | 1.3 V @ 5 A | |
|
|
P1000BDIODE STD D8X7.5 100V 10A |
1,000 | 0.43 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 10 µA @ 100 V | 100 V | 10A | -50°C ~ 175°C | 1.05 V @ 10 A | |
|
|
P1000DDIODE STD D8X7.5 200V 10A |
1,000 | 0.45 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 10 µA @ 200 V | 200 V | 10A | -50°C ~ 175°C | 1.05 V @ 10 A | |
|
|
P1200ADIODE STD D8X7.5 50V 12A |
1,000 | 0.45 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | - | 10 µA @ 50 V | 50 V | 12A | -50°C ~ 150°C | 950 mV @ 12 A | |
|
|
P1000GDIODE STD D8X7.5 400V 10A |
1,000 | 0.46 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 10 µA @ 400 V | 400 V | 10A | -50°C ~ 175°C | 1.05 V @ 10 A | |
|
|
P1200BDIODE STD D8X7.5 100V 12A |
1,000 | 0.46 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | - | 10 µA @ 100 V | 100 V | 12A | -50°C ~ 150°C | 950 mV @ 12 A | |
|
|
P1000JDIODE STD D8X7.5 600V 10A |
1,000 | 0.46 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 10 µA @ 600 V | 600 V | 10A | -50°C ~ 175°C | 1.05 V @ 10 A | |
|
|
P1000KDIODE STD D8X7.5 800V 10A |
1,000 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 10 µA @ 800 V | 800 V | 10A | -50°C ~ 175°C | 1.05 V @ 10 A | |
|
|
P1200DDIODE STD D8X7.5 200V 12A |
1,000 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | - | 10 µA @ 200 V | 200 V | 12A | -50°C ~ 150°C | 950 mV @ 12 A |
