| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P1000MDIODE STD D8X7.5 1000V 10A |
1,000 | 0.48 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 10 µA @ 1000 V | 1000 V | 10A | -50°C ~ 175°C | 1.05 V @ 10 A | |
|
P1200GDIODE STD D8X7.5 400V 12A |
1,000 | 0.48 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | - | 10 µA @ 400 V | 400 V | 12A | -50°C ~ 150°C | 950 mV @ 12 A | |
|
SBT1090SCHOTTKY TO-220AC 90V 10A |
1,000 | 0.50 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 300 µA @ 90 V | 90 V | 10A | -50°C ~ 150°C | 850 mV @ 10 A | |
|
|
SBT1050SCHOTTKY TO-220AC 50V 10A |
1,000 | 0.50 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 300 µA @ 50 V | 50 V | 10A | -50°C ~ 150°C | 700 mV @ 10 A | |
|
|
SBT1060SCHOTTKY TO-220AC 60V 10A |
1,000 | 0.50 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 300 µA @ 60 V | 60 V | 10A | -50°C ~ 150°C | 700 mV @ 10 A | |
|
SBT1020SCHOTTKY DIODE, TO-220AC, 20V, 1 |
1,000 | 0.50 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 300 µA @ 20 V | 20 V | 10A | -50°C ~ 150°C | 550 mV @ 10 A | |
|
|
SBT1040SCHOTTKY DIODE, TO-220AC, 40V, 1 |
1,000 | 0.50 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 300 µA @ 40 V | 40 V | 10A | -50°C ~ 150°C | 550 mV @ 10 A | |
|
|
SBT1030SCHOTTKY DIODE, TO-220AC, 30V, 1 |
1,000 | 0.50 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 300 µA @ 30 V | 30 V | 10A | -50°C ~ 150°C | 550 mV @ 10 A | |
|
SK2545YD2SCHOTTKY D2PAK 45V 25A |
1,000 | 0.54 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 200 µA @ 45 V | 45 V | 25A | -50°C ~ 150°C | 580 mV @ 25 A | |
|

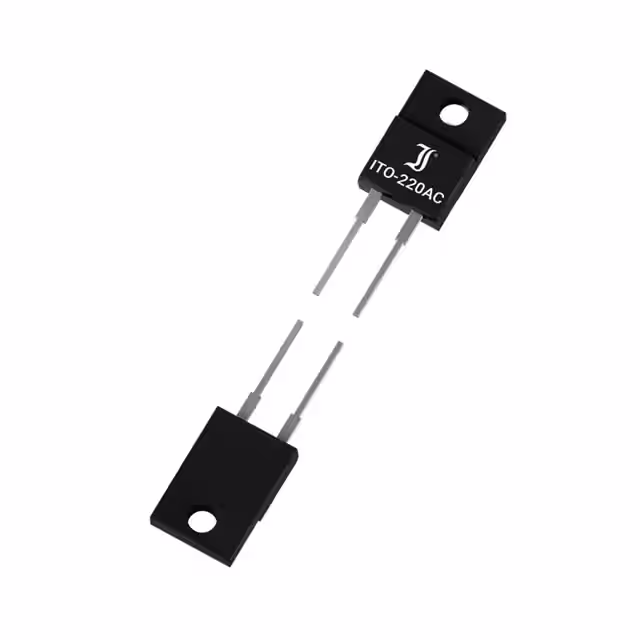

SBJ1845SCHOTTKY ITO-220AC 45V 18A |
1,000 | 0.55 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 500 µA @ 45 V | 45 V | 18A | -50°C ~ 150°C | 580 V @ 18 A | |
|
|
SBJ1840SCHOTTKY ITO-220AC 40V 18A |
1,000 | 0.55 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 500 µA @ 40 V | 40 V | 18A | -50°C ~ 150°C | 580 mV @ 18 A | |
|
|
PX1500BDIODE STD D8X7.5 100V 15A |
1,000 | 0.58 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 10 µA @ 100 V | 100 V | 15A | -50°C ~ 175°C | 1 V @ 15 A | |
|
|
F1200BDIODE FR D8X7.5 100V 12A |
1,000 | 0.59 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 200 ns | 5 µA @ 100 V | 100 V | 12A | -50°C ~ 150°C | 910 mV @ 12 A | |
|
|
PX1500DDIODE STD D8X7.5 200V 15A |
1,000 | 0.60 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 10 µA @ 200 V | 200 V | 15A | -50°C ~ 175°C | 1 V @ 15 A | |
|
|
PX1500JDIODE STD D8X7.5 600V 15A |
1,000 | 0.62 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 10 µA @ 600 V | 600 V | 15A | -50°C ~ 175°C | 1 V @ 15 A | |
|
|
PX1500KDIODE STD D8X7.5 800V 15A |
1,000 | 0.63 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 10 µA @ 800 V | 800 V | 15A | -50°C ~ 175°C | 1 V @ 15 A | |
|
|
P1000SDIODE STD D8X7.5 1200V 10A |
1,000 | 0.64 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 10 µA @ 1200 V | 1200 V | 10A | -50°C ~ 175°C | 1.05 V @ 10 A | |
|
|
PX1500MDIODE STD D8X7.5 1000V 15A |
1,000 | 0.64 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 10 µA @ 1000 V | 1000 V | 15A | -50°C ~ 175°C | 1 V @ 15 A | |
|
|
F1200GDIODE FR D8X7.5 400V 12A |
1,000 | 0.66 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 200 ns | 5 µA @ 400 V | 400 V | 12A | -50°C ~ 150°C | 910 mV @ 12 A | |
|
SBT1840-3GSCHOTTKY TO-220AC 40V 18A |
1,000 | 0.67 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 100 µA @ 40 V | 40 V | 18A | -50°C ~ 150°C | 535 mV @ 18 A |
