| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SB840SCHOTTKY D5.4X7.5 40V 8A |
1,250 | 0.29 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 500 µA @ 40 V | 40 V | 8A | -50°C ~ 150°C | 550 mV @ 8 A | |
|
SK810SCHOTTKY SMC 100V 8A |
15,000 | 0.30 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 200 µA @ 100 V | 100 V | 8A | -50°C ~ 150°C | 850 mV @ 8 A | |
|
|
SK88SCHOTTKY SMC 80V 8A |
6,000 | 0.30 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 200 µA @ 80 V | 80 V | 8A | -50°C ~ 150°C | 850 mV @ 8 A | |
|
PPL5150SCHOTTKY TO-277B 150V 20A |
5,000 | 0.30 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 300 µA @ 150 V | 150 V | 20A | -50°C ~ 150°C | 760 mV @ 5 A | |
|
|
SK815SCHOTTKY SMC 150V 8A |
3,000 | 0.30 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 200 µA @ 150 V | 150 V | 8A | -50°C ~ 150°C | 870 mV @ 8 A | |
|
|
BY880-1000DIODE STD D5.4X7.5 1000V 8A |
1,250 | 0.30 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 5 µA @ 1000 V | 1000 V | 8A | -50°C ~ 175°C | 1.1 V @ 8 A | |
|
ES3JSMBDIODE SFR SMB 600V 3A |
48,000 | 0.31 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 30 ns | 5 µA @ 600 V | 600 V | 3A | -50°C ~ 150°C | 1.7 V @ 3 A | |
|
|
BY880-1200DIODE STD D5.4X7.5 1200V 8A |
1,250 | 0.31 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 5 µA @ 1200 V | 1200 V | 8A | -50°C ~ 175°C | 1.1 V @ 8 A | |
|
|
S3WDIODE STD SMC 1600V 3A |
3,000 | 0.32 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1.5 µs | 5 µA @ 1600 V | 1600 V | 3A | -50°C ~ 150°C | 1.15 V @ 3 A | |
|
|

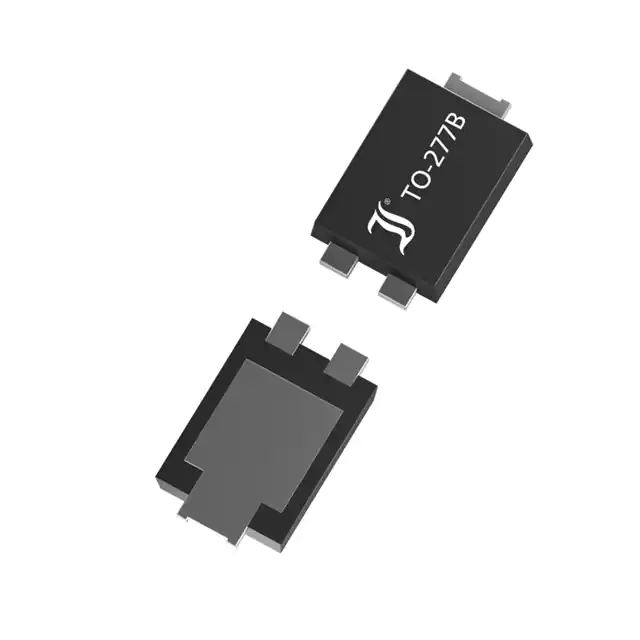

PPS1545-3GSCHOTTKY TO-277B 45V 15A |
5,000 | 0.32 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 500 µA @ 45 V | 45 V | 15A | -50°C ~ 150°C | 550 mV @ 15 A | |
|
|
BY880-1400DIODE STD D5.4X7.5 1400V 8A |
1,250 | 0.33 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 5 µA @ 1400 V | 1400 V | 8A | -50°C ~ 175°C | 1.1 V @ 8 A | |
|
2CL75HV DIODE D2.5X12 16000V 0.005A |
5,000 | 0.33 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Through Hole | - | 80 ns | 2 µA @ 16000 V | 16000 V | 5mA | -40°C ~ 120°C | 60 V @ 10 mA | |
|
PPS1060SCHOTTKY TO-277B 60V 10A |
5,000 | 0.33 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 300 µA @ 60 V | 60 V | 10A | -50°C ~ 150°C | 630 mV @ 10 A | |
|
UF600DDIODE UFR D8X7.5 200V 6A |
102,500 | 0.34 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 75 ns | 10 µA @ 200 V | 200 V | 6A | -50°C ~ 175°C | 1 V @ 5 A | |
|
|
UF600ADIODE UFR D8X7.5 50V 6A |
2,000 | 0.34 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 75 ns | 10 µA @ 50 V | 50 V | 6A | -50°C ~ 175°C | 1 V @ 5 A | |
|
|
UF600JDIODE UFR D8X7.5 600V 6A |
7,500 | 0.34 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 100 ns | 10 µA @ 600 V | 600 V | 6A | -50°C ~ 175°C | 1.7 V @ 5 A | |
|
|
UF600MDIODE UFR D8X7.5 1000V 6A |
101,000 | 0.34 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 100 ns | 10 µA @ 1000 V | 1000 V | 6A | -50°C ~ 175°C | 1.7 V @ 5 A | |
|
|
UF600KDIODE UFR D8X7.5 800V 6A |
14,000 | 0.34 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 100 ns | 10 µA @ 800 V | 800 V | 6A | -50°C ~ 175°C | 1.7 V @ 5 A | |
|
|
S3XDIODE STD SMC 1800V 3A |
3,000 | 0.35 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1.5 µs | 5 µA @ 1800 V | 1800 V | 3A | -50°C ~ 150°C | 1.15 V @ 3 A | |
|
SI-E8000-4HV DIODE D49X281 24000V 4A |
2,736 | 197.53 |
RFQ |
Datasheet |
Box | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | 1.5 µs | 5 µA @ 24000 V | 24000 V | 4A | -50°C ~ 150°C | 12 V @ 4 A |
