| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

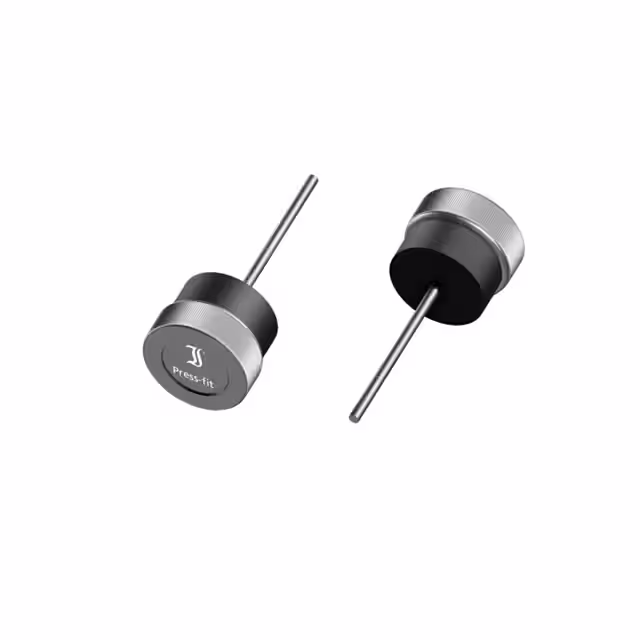

BYP60K1DIODE STD D13X10.7W 100V 60A |
12,000 | 1.27 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 100 µA @ 100 V | 100 V | 60A | -50°C ~ 200°C | 1.1 V @ 60 A | |
|
BYP60A6DIODE STD D13X10.7W 600V 60A |
12,000 | 1.27 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 100 µA @ 600 V | 600 V | 60A | -50°C ~ 200°C | 1.1 V @ 60 A | |
|
|
BYP60A3DIODE STD D13X10.7W 300V 60A |
12,000 | 1.27 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 100 µA @ 300 V | 300 V | 60A | -50°C ~ 200°C | 1.1 V @ 60 A | |
|
|
BYP60A2DIODE STD D13X10.7W 200V 60A |
12,000 | 1.27 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 100 µA @ 200 V | 200 V | 60A | -50°C ~ 200°C | 1.1 V @ 60 A | |
|
|
BYP60A4DIODE STD D13X10.7W 400V 60A |
12,000 | 1.27 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 100 µA @ 400 V | 400 V | 60A | -50°C ~ 200°C | 1.1 V @ 60 A | |
|
|
BYP60K4DIODE STD D13X10.7W 400V 60A |
12,000 | 1.27 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 100 µA @ 400 V | 400 V | 60A | -50°C ~ 200°C | 1.1 V @ 60 A | |
|
|
BYP60K6DIODE STD D13X10.7W 600V 60A |
12,000 | 1.27 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 100 µA @ 600 V | 600 V | 60A | -50°C ~ 200°C | 1.1 V @ 60 A | |
|
|
BYP60K3DIODE STD D13X10.7W 300V 60A |
12,000 | 1.27 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 100 µA @ 300 V | 300 V | 60A | -50°C ~ 200°C | 1.1 V @ 60 A | |
|
|
BYP60A1DIODE STD D13X10.7W 100V 60A |
12,000 | 1.27 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 100 µA @ 100 V | 100 V | 60A | -50°C ~ 200°C | 1.1 V @ 60 A | |
|
|
BYP60K2DIODE STD D13X10.7W 200V 60A |
12,000 | 1.27 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 100 µA @ 200 V | 200 V | 60A | -50°C ~ 200°C | 1.1 V @ 60 A | |
|
|
BYP60K05DIODE STD D13X10.7W 50V 60A |
300 | 1.27 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 100 µA @ 50 V | 50 V | 60A | -50°C ~ 200°C | 1.1 V @ 60 A | |
|
|
BYP60A05DIODE STD D13X10.7W 50V 60A |
300 | 1.27 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 100 µA @ 50 V | 50 V | 60A | -50°C ~ 200°C | 1.1 V @ 60 A | |
|
P2500WDIODE STD D8X7.5 1600V 25A |
1,000 | 1.28 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Avalanche | Active | Through Hole | - | 1.5 µs | 10 µA @ 1600 V | 1600 V | 25A | -55°C ~ 175°C | 1.1 V @ 25 A | |
|
|
P2500TDIODE STD D8X7.5 1300V 25A |
1,000 | 1.33 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Avalanche | Active | Through Hole | - | 1.5 µs | 10 µA @ 130 V | 1300 V | 25A | -55°C ~ 175°C | 1.1 V @ 25 A | |
|
BY4HV DIODE D7.3X22 4000V 1A |
2,000 | 1.36 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 1 µA @ 4000 V | 4000 V | 1A | -50°C ~ 150°C | 4 V @ 1 A | |
|
|
P2500XDIODE STD D8X7.5 1800V 25A |
1,000 | 1.42 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Avalanche | Active | Through Hole | - | 1.5 µs | 10 µA @ 1800 V | 1800 V | 25A | -55°C ~ 175°C | 1.1 V @ 25 A | |
|
S2B-AQDIODE STD SMB 100V 2A |
6,000 | 0.08 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1.5 µs | 5 µA @ 100 V | 100 V | 2A | -50°C ~ 150°C | 1.15 V @ 2 A | |
|
S2M-AQDIODE STD SMB 1000V 2A |
3,000 | 0.08 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1.5 µs | 5 µA @ 1000 V | 1000 V | 2A | -50°C ~ 150°C | 1.15 V @ 2 A | |
|
|
S2G-AQDIODE STD SMB 400V 2A |
3,000 | 0.08 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1.5 µs | 5 µA @ 400 V | 400 V | 2A | -50°C ~ 150°C | 1.15 V @ 2 A | |
|
|
S2J-AQDIODE STD SMB 600V 2A |
3,000 | 0.08 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1.5 µs | 5 µA @ 600 V | 600 V | 2A | -50°C ~ 150°C | 1.15 V @ 2 A |
