| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeConfiguration | DiodeType | Voltage-DCReverse(Vr)(Max) | Current-AverageRectified(Io)(perDiode) | Voltage-Forward(Vf)(Max)@If | Speed | ReverseRecoveryTime(trr) | Current-ReverseLeakage@Vr | OperatingTemperature-Junction | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DSEI2X61-02ADIODE MODULE 200V 71A SOT227B |
2,137 | 21.38 |
RFQ |
Datasheet |
Tube | FRED | Active | 2 Independent | Standard | 200 V | 71A | 1.08 V @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 50 µA @ 200 V | - | Chassis Mount |
|
DHH55-36N1FDIODE ARRAY GP 1800V 60A I4PAC |
674 | 21.70 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Series Connection | Standard | 1800 V | 60A | 2.04 V @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | 230 ns | 200 µA @ 1800 V | -55°C ~ 150°C | Through Hole |
|
|
DSEP2X61-03ADIODE MODULE 300V 60A SOT227B |
2,342 | 24.01 |
RFQ |
Datasheet |
Tube | HiPerFRED™ | Active | 2 Independent | Standard | 300 V | 60A | 1.68 V @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 650 µA @ 300 V | - | Chassis Mount |
|
|
DSEP2X61-06ADIODE MODULE 600V 60A SOT227B |
3,219 | 25.22 |
RFQ |
Datasheet |
Tube | HiPerFRED™ | Active | 2 Independent | Standard | 600 V | 60A | 2.01 V @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 650 µA @ 600 V | - | Chassis Mount |
|
|
DSEI2X101-12ADIODE MODULE 1.2KV 91A SOT227B |
3,071 | 25.98 |
RFQ |
Datasheet |
Tube | - | Active | 2 Independent | Standard | 1200 V | 91A | 1.87 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | 150 ns | 3 mA @ 1200 V | - | Chassis Mount |
|
|
DSEP2X101-04ADIODE MODULE 400V 100A SOT227B |
3,270 | 27.79 |
RFQ |
Datasheet |
Tube | - | Active | 2 Independent | Standard | 400 V | 100A | 1.54 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 1 mA @ 400 V | - | Chassis Mount |
|
|
DSEP2X91-03ADIODE MODULE 300V 90A SOT227B |
3,259 | 27.79 |
RFQ |
Datasheet |
Tube | HiPerFRED™ | Active | 2 Independent | Standard | 300 V | 90A | 1.54 V @ 90 A | Fast Recovery =< 500ns, > 200mA (Io) | 40 ns | 1 mA @ 300 V | - | Chassis Mount |
|
|
DSEP2X25-12CDIODE MODULE 1.2KV 25A SOT227B |
2,242 | 28.99 |
RFQ |
Datasheet |
Tube | HiPerDynFRED™ | Active | 2 Independent | Standard | 1200 V | 25A | 4.71 V @ 25 A | Fast Recovery =< 500ns, > 200mA (Io) | 15 ns | 250 µA @ 1200 V | - | Chassis Mount |
|
|
DSEP2X91-06ADIODE MODULE 600V 90A SOT227B |
2,163 | 29.18 |
RFQ |
Datasheet |
Tube | HiPerFRED™ | Active | 2 Independent | Standard | 600 V | 90A | 2.05 V @ 90 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 1 mA @ 600 V | - | Chassis Mount |
|
|
DSEP2X60-12ADIODE MODULE 1.2KV 60A SOT227B |
3,140 | 31.96 |
RFQ |
Datasheet |
Tube | HiPerFRED™ | Active | 2 Independent | Standard | 1200 V | 60A | 2.42 V @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | 40 ns | 1 mA @ 1200 V | - | Chassis Mount |
|
|
DSEP2X61-12ADIODE MODULE 1.2KV 60A SOT227B |
3,775 | 31.96 |
RFQ |
Datasheet |
Tube | HiPerFRED™ | Active | 2 Independent | Standard | 1200 V | 60A | 2.42 V @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | 40 ns | 1 mA @ 1200 V | - | Chassis Mount |
|
MEE75-12DADIODE MODULE 1.2KV 75A TO240AA |
3,398 | 33.13 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1200 V | 75A | 2.17 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | 300 ns | 2 mA @ 1200 V | - | Chassis Mount |
|
|
MEK75-12DADIODE MODULE 1.2KV 75A TO240AA |
3,133 | 33.13 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Standard | 1200 V | 75A | 2.17 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | 300 ns | 2 mA @ 1200 V | - | Chassis Mount |
|
|
DH2X60-18ADIODE MODULE 1.8KV 60A SOT227B |
3,472 | 36.13 |
RFQ |
Datasheet |
Tube | - | Active | 2 Independent | Standard | 1800 V | 60A | 2.01 V @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | 230 ns | 200 µA @ 1800 V | - | Chassis Mount |
|
|
MDMA110P1600TGDIODE MODULE 1.6KV 110A TO240AA |
2,270 | 37.28 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1600 V | 110A | 1.18 V @ 110 A | Standard Recovery >500ns, > 200mA (Io) | - | 200 µA @ 1600 V | - | Chassis Mount |
|
|
MDA72-16N1BDIODE MODULE 1.6KV 113A TO240AA |
3,959 | 38.03 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Anode | Standard | 1600 V | 113A | 1.6 V @ 300 A | Standard Recovery >500ns, > 200mA (Io) | - | 15 mA @ 1600 V | - | Chassis Mount |
|
|
MDMA140P1600TGDIODE MODULE 1.6KV 140A TO240AA |
3,381 | 38.97 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1600 V | 140A | 1.18 V @ 140 A | Standard Recovery >500ns, > 200mA (Io) | - | 200 µA @ 1600 V | - | Chassis Mount |
|
|
DPF240X400NADIODE MODULE 400V 120A SOT227B |
2,487 | 27.79 |
RFQ |
Datasheet |
Tube | HiPerFRED²™ | Active | 2 Independent | Standard | 400 V | 120A | 1.25 V @ 120 A | Fast Recovery =< 500ns, > 200mA (Io) | 45 ns | 5 µA @ 400 V | - | Chassis Mount |
|
|
DSEC240-06ADIODE MODULE 600V 120A SOT227B |
3,169 | 53.22 |
RFQ |
Datasheet |
Tube | HiPerFRED™ | Active | 1 Pair Common Cathode | Standard | 600 V | 120A | 1.91 V @ 120 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 2 mA @ 600 V | - | Chassis Mount |
|

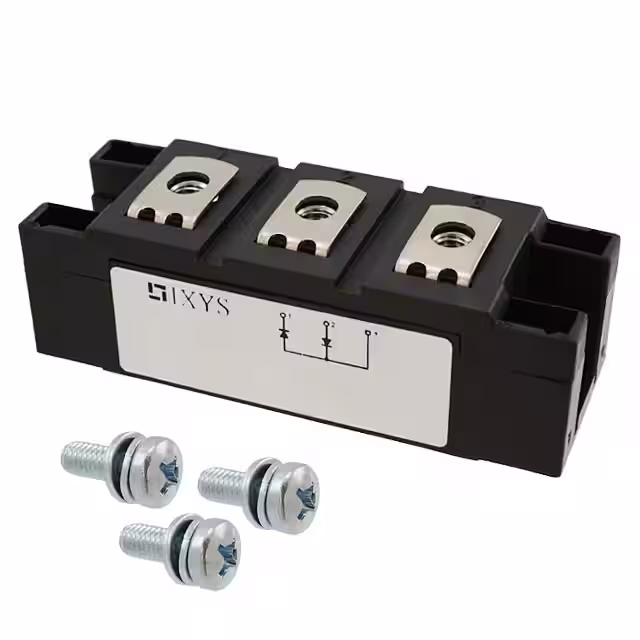

MDD142-16N1DIODE MODULE 1.6KV 165A Y4-M6 |
2,996 | 53.39 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1600 V | 165A | 1.3 V @ 300 A | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 1600 V | - | Chassis Mount |
