| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeConfiguration | DiodeType | Voltage-DCReverse(Vr)(Max) | Current-AverageRectified(Io)(perDiode) | Voltage-Forward(Vf)(Max)@If | Speed | ReverseRecoveryTime(trr) | Current-ReverseLeakage@Vr | OperatingTemperature-Junction | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MDD172-18N1DIODE MODULE 1.8KV 190A Y4-M6 |
2,382 | 58.98 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1800 V | 190A | 1.15 V @ 300 A | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 1800 V | - | Chassis Mount |
|

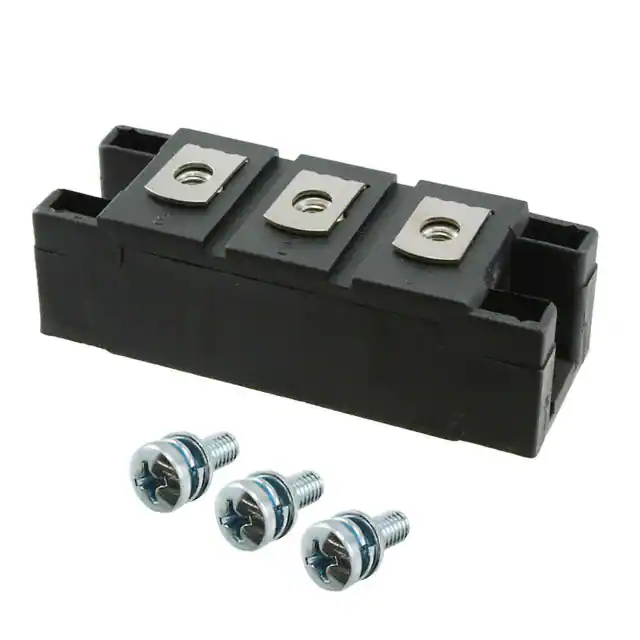

MEK250-12DADIODE MODULE 1.2KV 260A Y4-M6 |
3,986 | 77.25 |
RFQ |
Datasheet |
Bulk | FRED | Active | 1 Pair Common Cathode | Standard | 1200 V | 260A | 1.8 V @ 260 A | Fast Recovery =< 500ns, > 200mA (Io) | 500 ns | 12 mA @ 1200 V | - | Chassis Mount |
|
MDD312-16N1DIODE MODULE 1.6KV 310A Y1-CU |
3,033 | 152.37 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1600 V | 310A | 1.32 V @ 600 A | Standard Recovery >500ns, > 200mA (Io) | - | 30 mA @ 1600 V | - | Chassis Mount |
|

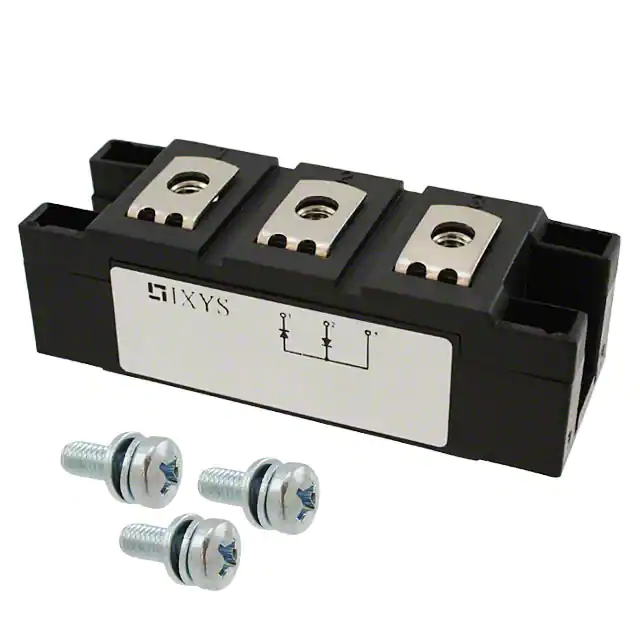

MEK300-06DADIODE MODULE 600V 304A Y4-M6 |
2,883 | 73.75 |
RFQ |
Datasheet |
Bulk | FRED | Active | 1 Pair Common Cathode | Standard | 600 V | 304A | 1.36 V @ 260 A | Fast Recovery =< 500ns, > 200mA (Io) | 300 ns | 12 mA @ 600 V | - | Chassis Mount |
|
DSEC16-06ADIODE ARRAY GP 600V 10A TO220AB |
2,247 | 2.75 |
RFQ |
Datasheet |
Tube | HiPerFRED™ | Active | 1 Pair Common Cathode | Standard | 600 V | 10A | 2.1 V @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 60 µA @ 600 V | -55°C ~ 175°C | Through Hole |
|
|
DSEC16-12ADIODE ARRAY GP 1200V 10A TO220AB |
3,826 | 3.04 |
RFQ |
Datasheet |
Tube | HiPerFRED™ | Active | 1 Pair Common Cathode | Standard | 1200 V | 10A | 2.94 V @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | 40 ns | 60 µA @ 1200 V | -55°C ~ 175°C | Through Hole |
|
DSEK60-02ADIODE ARRAY GP 200V 34A TO247AD |
3,392 | 5.86 |
RFQ |
Datasheet |
Tube | FRED | Active | 1 Pair Common Cathode | Standard | 200 V | 34A | 1.1 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 200 µA @ 200 V | -40°C ~ 150°C | Through Hole |
|
DSP25-16ARDIODE ARRAY 1600V 28A ISOPLUS247 |
3,727 | 6.92 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Series Connection | Standard | 1600 V | 28A | 1.6 V @ 55 A | Standard Recovery >500ns, > 200mA (Io) | - | 2 mA @ 1600 V | -40°C ~ 180°C | Through Hole |
|
DSEE55-24N1FDIODE ARRAY GP 1200V 60A I4PAC |
3,727 | 19.19 |
RFQ |
Datasheet |
Tube | HiPerFRED™ | Active | 1 Pair Series Connection | Standard | 1200 V | 60A | 2.45 V @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | 220 ns | 1 mA @ 1200 V | -55°C ~ 175°C | Through Hole |
|
DSEI2X61-04CDIODE MODULE 400V 60A SOT227B |
3,147 | 20.62 |
RFQ |
Datasheet |
Tube | FRED | Active | 2 Independent | Standard | 400 V | 60A | 1.8 V @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 200 µA @ 400 V | - | Chassis Mount |
|
MDMA140P1200TGDIODE MODULE 1.2KV 140A TO240AA |
3,552 | 38.39 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1200 V | 140A | 1.18 V @ 140 A | Standard Recovery >500ns, > 200mA (Io) | - | 200 µA @ 1200 V | - | Chassis Mount |
|
DSEI2X161-12PDIODE MODULE 1.2KV 128A ECO-PAC2 |
3,518 | 48.89 |
RFQ |
Datasheet |
Bulk | - | Active | 2 Independent | Standard | 1200 V | 128A | 1.9 V @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | 40 ns | 12 mA @ 1200 V | - | Chassis Mount |
|
|
MDMA380P1600KCDIODE MODULE 1.6KV 380A |
3,927 | 153.17 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1600 V | 380A | 1.07 V @ 300 A | Standard Recovery >500ns, > 200mA (Io) | - | 500 µA @ 1600 V | - | Chassis Mount |
|
|
DPG20C400PBDIODE ARRAY GP 400V 10A TO220AB |
2,666 | 2.19 |
RFQ |
Datasheet |
Tube | HiPerFRED²™ | Active | 1 Pair Common Cathode | Standard | 400 V | 10A | 1.32 V @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | 45 ns | 1 µA @ 400 V | -55°C ~ 175°C | Through Hole |
|
DPG60C300PC-TRLDIODE ARRAY GP 300V 30A TO263 |
2,693 | 3.60 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HiPerFRED™ | Active | 1 Pair Common Cathode | Standard | 300 V | 30A | 1.35 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 1 µA @ 300 V | -55°C ~ 175°C | Surface Mount |
|
|
DPG30C300PBDIODE ARRAY GP 300V 15A TO220AB |
100 | 2.43 |
RFQ |
Datasheet |
Tube | HiPerFRED™ | Active | 1 Pair Common Cathode | Standard | 300 V | 15A | 1.26 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 1 µA @ 300 V | -55°C ~ 175°C | Through Hole |
|
|
DHG10C600PBDIODE ARRAY GP 600V 5A TO220AB |
3,765 | 2.63 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Standard | 600 V | 5A | 2.2 V @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 10 µA @ 600 V | -55°C ~ 150°C | Through Hole |
|
|
DPG60C300PC-TUBPOWER DIODE DISCRETES-FRED TO-26 |
3,190 | 3.93 |
RFQ |
Tube | DPG60C300PC | Active | 1 Pair Common Cathode | Standard | 300 V | 30A | 1.35 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 1 µA @ 300 V | -55°C ~ 175°C | Surface Mount | |
|
|
DPH30IS600HIDIODE ARRAY 600V 30A ISOPLUS247 |
3,251 | 6.73 |
RFQ |
Datasheet |
Tube | HiPerDynFRED™ | Active | 1 Pair Series Connection | Standard | 600 V | 30A | 2.48 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 1 µA @ 600 V | -55°C ~ 175°C | Through Hole |
.jpg)
|
DPF60C200HBDIODE ARRAY GP 200V 60A TO247AD |
2,340 | 5.02 |
RFQ |
Tube | - | Active | 1 Pair Common Cathode | Standard | 200 V | 60A | 1.3 V @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | 55 ns | 5 µA @ 200 V | -55°C ~ 175°C | Through Hole |
