| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeConfiguration | DiodeType | Voltage-DCReverse(Vr)(Max) | Current-AverageRectified(Io)(perDiode) | Voltage-Forward(Vf)(Max)@If | Speed | ReverseRecoveryTime(trr) | Current-ReverseLeakage@Vr | OperatingTemperature-Junction | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DSEI2X101-06ADIODE MODULE 600V 96A SOT227B |
2,569 | 24.80 |
RFQ |
Datasheet |
Tube | - | Active | 2 Independent | Standard | 600 V | 96A | 1.25 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 3 mA @ 600 V | - | Chassis Mount |
|
MDD172-16N1DIODE MODULE 1.6KV 190A Y4-M6 |
3,665 | 56.52 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1600 V | 190A | 1.15 V @ 300 A | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 1600 V | - | Chassis Mount |
|
DSP8-08AS-TRLDIODE ARRAY GP 800V 11A TO263 |
3,497 | 2.55 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Series Connection | Standard | 800 V | 11A | 1.15 V @ 7 A | Standard Recovery >500ns, > 200mA (Io) | - | 5 µA @ 800 V | -55°C ~ 175°C | Surface Mount |
|
|
DSP8-08AS-TUBDIODE ARRAY GP 800V 11A TO263 |
3,114 | 2.87 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Series Connection | Standard | 800 V | 11A | 1.15 V @ 7 A | Standard Recovery >500ns, > 200mA (Io) | - | 5 µA @ 800 V | -55°C ~ 175°C | Surface Mount |
|
|
DSEI2X61-12BDIODE MODULE 1.2KV 52A SOT227B |
3,166 | 21.62 |
RFQ |
Datasheet |
Tube | FRED | Active | 2 Independent | Standard | 1200 V | 52A | 2.5 V @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | 60 ns | 2.2 mA @ 1200 V | - | Chassis Mount |
|
MDD95-18N1BDIODE MODULE 1.8KV 120A TO240AA |
3,768 | 38.73 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1800 V | 120A | 1.43 V @ 300 A | Standard Recovery >500ns, > 200mA (Io) | - | 15 mA @ 1800 V | - | Chassis Mount |
|
MEE300-06DADIODE MODULE 600V 304A Y4-M6 |
2,776 | 73.75 |
RFQ |
Datasheet |
Bulk | FRED | Active | 1 Pair Series Connection | Standard | 600 V | 304A | 1.36 V @ 260 A | Fast Recovery =< 500ns, > 200mA (Io) | 300 ns | 12 mA @ 600 V | - | Chassis Mount |
|

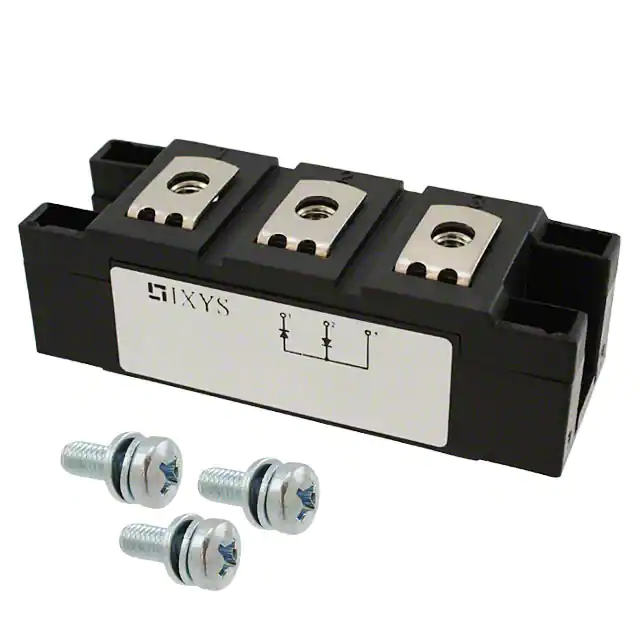

MEE250-12DADIODE MODULE 1.2KV 260A Y4-M6 |
3,929 | 77.25 |
RFQ |
Datasheet |
Bulk | FRED | Active | 1 Pair Series Connection | Standard | 1200 V | 260A | 1.8 V @ 260 A | Fast Recovery =< 500ns, > 200mA (Io) | 500 ns | 12 mA @ 1200 V | - | Chassis Mount |
|
LSIC2SD120N120PASIC SCHOTTKY DIODE 1200V 2X60A |
3,315 | 115.39 |
RFQ |
Datasheet |
Tube | - | Active | 2 Independent | Silicon Carbide Schottky | 1200 V | 120A (DC) | 1.8 V @ 60 A | No Recovery Time > 500mA (Io) | 0 ns | 100 µA @ 1200 V | -55°C ~ 175°C | Chassis Mount |
|
DPG20C300PBDIODE ARRAY GP 300V 10A TO220AB |
2,810 | 2.19 |
RFQ |
Datasheet |
Tube | HiPerFRED™ | Active | 1 Pair Common Cathode | Standard | 300 V | 10A | 1.27 V @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 1 µA @ 300 V | -55°C ~ 175°C | Through Hole |
|
DPG20C300PNDIODE ARRAY GP 300V 10A TO220FP |
3,147 | 2.19 |
RFQ |
Datasheet |
Tube | HiPerFRED²™ | Active | 1 Pair Common Cathode | Standard | 300 V | 10A | 1.27 V @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 1 µA @ 300 V | -55°C ~ 175°C | Through Hole |
|
DPG20C400PNDIODE ARRAY GP 400V 10A TO220FP |
3,303 | 2.19 |
RFQ |
Datasheet |
Tube | HiPerFRED²™ | Active | 1 Pair Common Cathode | Standard | 400 V | 10A | 1.32 V @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | 45 ns | 1 µA @ 400 V | -55°C ~ 175°C | Through Hole |
|
|
DSP8-08ADIODE ARRAY GP 800V 11A TO220AB |
2,919 | 2.35 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Series Connection | Standard | 800 V | 11A | 1.15 V @ 7 A | Standard Recovery >500ns, > 200mA (Io) | - | 5 µA @ 800 V | -55°C ~ 175°C | Through Hole |
|
|
DPG30C200PBDIODE ARRAY GP 200V 15A TO220AB |
2,587 | 2.43 |
RFQ |
Datasheet |
Tube | HiPerFRED™ | Active | 1 Pair Common Cathode | Standard | 200 V | 15A | 1.26 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 1 µA @ 200 V | -55°C ~ 175°C | Through Hole |
|
|
DSP8-12ADIODE ARRAY GP 1200V 11A TO220AB |
2,965 | 2.47 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Series Connection | Standard | 1200 V | 11A | 1.15 V @ 7 A | Standard Recovery >500ns, > 200mA (Io) | - | 5 µA @ 1200 V | -55°C ~ 175°C | Through Hole |
|
|
DHG20C1200PBDIODE ARRAY GP 1200V 10A TO220AB |
2,628 | 3.16 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Standard | 1200 V | 10A | 2.22 V @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | 200 ns | 10 µA @ 1200 V | -55°C ~ 150°C | Through Hole |
|
DSP45-16ADIODE ARRAY GP 1600V 45A TO247AD |
2,695 | 6.57 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Series Connection | Standard | 1600 V | 45A | 1.28 V @ 45 A | Standard Recovery >500ns, > 200mA (Io) | - | 20 µA @ 1600 V | -40°C ~ 175°C | Through Hole |
|
|
DSP45-12ADIODE ARRAY GP 1200V 45A TO247AD |
3,941 | 6.69 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Series Connection | Standard | 1200 V | 45A | 1.28 V @ 45 A | Standard Recovery >500ns, > 200mA (Io) | - | 20 µA @ 1200 V | -40°C ~ 175°C | Through Hole |
|
|
DSEC60-12ADIODE ARRAY GP 1200V 30A TO247AD |
2,281 | 7.02 |
RFQ |
Datasheet |
Tube | HiPerFRED™ | Active | 1 Pair Common Cathode | Standard | 1200 V | 30A | 2.74 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 40 ns | 250 µA @ 1200 V | -55°C ~ 175°C | Through Hole |
.jpg)
|
DPG30C200HBDIODE ARRAY GP 200V 15A TO247AD |
3,630 | 3.82 |
RFQ |
Datasheet |
Tube | HiPerFRED™ | Active | 1 Pair Common Cathode | Standard | 200 V | 15A | 1.25 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 1 µA @ 200 V | -55°C ~ 175°C | Through Hole |
