| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeConfiguration | DiodeType | Voltage-DCReverse(Vr)(Max) | Current-AverageRectified(Io)(perDiode) | Voltage-Forward(Vf)(Max)@If | Speed | ReverseRecoveryTime(trr) | Current-ReverseLeakage@Vr | OperatingTemperature-Junction | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DSEI2X31-06CDIODE MODULE 600V 30A SOT227B |
363 | 19.50 |
RFQ |
Datasheet |
Tube | - | Active | 2 Independent | Standard | 600 V | 30A | 1.6 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 100 µA @ 600 V | - | Chassis Mount |
|
|
DSEI2X61-06CDIODE MODULE 600V 60A SOT227B |
2,334 | 20.62 |
RFQ |
Datasheet |
Tube | FRED | Active | 2 Independent | Standard | 600 V | 60A | 1.8 V @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 200 µA @ 600 V | - | Chassis Mount |
|
|
DSI2X55-12ADIODE MODULE 1.2KV 56A SOT227B |
3,298 | 21.87 |
RFQ |
Datasheet |
Tube | - | Active | 2 Independent | Standard | 1200 V | 56A | 1.2 V @ 60 A | Standard Recovery >500ns, > 200mA (Io) | - | 300 µA @ 1200 V | - | Chassis Mount |
|
|
DH2X61-18ADIODE MODULE 1.8KV 60A SOT227B |
3,679 | 36.13 |
RFQ |
Datasheet |
Tube | - | Active | 2 Independent | Standard | 1800 V | 60A | 2.01 V @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | 230 ns | 200 µA @ 1800 V | - | Chassis Mount |
|
DSEC60-06ADIODE ARRAY GP 600V 30A TO247AD |
127 | 6.40 |
RFQ |
Datasheet |
Tube | HiPerFRED™ | Active | 1 Pair Common Cathode | Standard | 600 V | 30A | 1.6 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 250 µA @ 600 V | -55°C ~ 175°C | Through Hole |
|
|
DSEI2X30-06CDIODE MODULE 600V 30A SOT227B |
3,038 | 19.50 |
RFQ |
Datasheet |
Tube | - | Active | 2 Independent | Standard | 600 V | 30A | 1.6 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 100 µA @ 600 V | - | Chassis Mount |
|
MEK95-06DADIODE MODULE 600V 95A TO240AA |
521 | 31.64 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Standard | 600 V | 95A | 1.55 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | 300 ns | 2 mA @ 600 V | - | Chassis Mount |
|
|
MDD95-16N1BDIODE MODULE 1.6KV 120A TO240AA |
185 | 40.03 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1600 V | 120A | 1.43 V @ 300 A | Standard Recovery >500ns, > 200mA (Io) | - | 15 mA @ 1600 V | - | Chassis Mount |
.jpg)
|
DPG80C300HBDIODE ARRAY GP 300V 40A TO247AD |
130 | 6.00 |
RFQ |
Datasheet |
Tube | HiPerFRED²™ | Active | 1 Pair Common Cathode | Standard | 300 V | 40A | 1.36 V @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 1 µA @ 300 V | -55°C ~ 175°C | Through Hole |
|
|
DCG45X1200NADIODE MOD SCHOTTKY 1200V SOT227B |
260 | 91.32 |
RFQ |
Datasheet |
Tube | - | Active | 2 Independent | Silicon Carbide Schottky | 1200 V | 22A | 1.8 V @ 20 A | No Recovery Time > 500mA (Io) | 0 ns | 200 µA @ 1200 V | -40°C ~ 175°C | Chassis Mount |
|
|
DCG85X1200NADIODE MOD SCHOTTKY 1200V SOT227B |
3,108 | 154.27 |
RFQ |
Datasheet |
Tube | - | Active | 2 Independent | Silicon Carbide Schottky | 1200 V | 43A | 1.8 V @ 40 A | No Recovery Time > 500mA (Io) | 0 ns | 400 µA @ 1200 V | -40°C ~ 175°C | Chassis Mount |
|
|
DCG100X1200NADIODE MOD SCHOTTKY 1200V SOT227B |
2,979 | 158.24 |
RFQ |
Datasheet |
Tube | - | Active | 2 Independent | Silicon Carbide Schottky | 1200 V | 49A | 1.8 V @ 50 A | No Recovery Time > 500mA (Io) | 0 ns | 500 µA @ 1200 V | -40°C ~ 175°C | Chassis Mount |
|
|
DCG130X1200NADIODE MOD SCHOTTKY 1200V SOT227B |
133 | 230.93 |
RFQ |
Datasheet |
Tube | - | Active | 2 Independent | Silicon Carbide Schottky | 1200 V | 64A | 1.8 V @ 60 A | No Recovery Time > 500mA (Io) | 0 ns | 800 µA @ 1200 V | -40°C ~ 175°C | Chassis Mount |
|

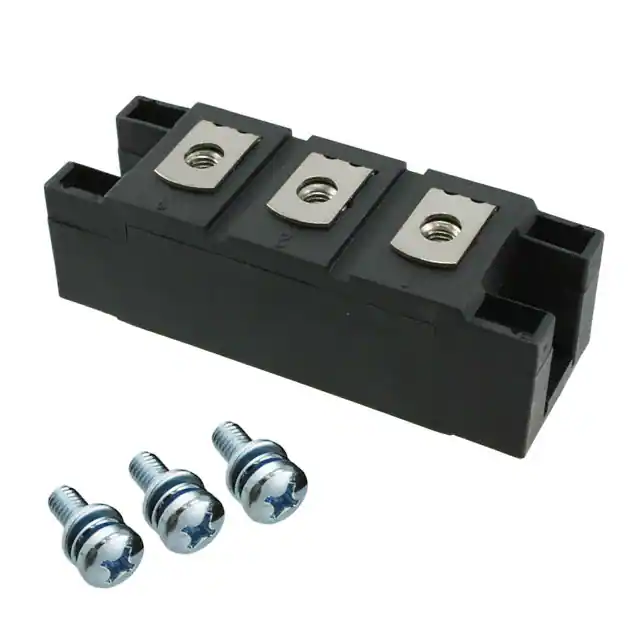

MEK350-02DADIODE MODULE 200V 356A Y4-M6 |
100 | 70.24 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Standard | 200 V | 356A | 1.07 V @ 260 A | Fast Recovery =< 500ns, > 200mA (Io) | 200 ns | 3 mA @ 200 V | - | Chassis Mount |
|
|
DSEI2X31-10BDIODE MODULE 1KV 30A SOT227B |
3,692 | 20.04 |
RFQ |
Datasheet |
Tube | - | Active | 2 Independent | Standard | 1000 V | 30A | 2.4 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 750 µA @ 1000 V | - | Chassis Mount |
|
|
MDD26-16N1BDIODE MODULE 1.6KV 36A TO240AA |
3,618 | 26.20 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1600 V | 36A | 1.38 V @ 80 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 mA @ 1600 V | - | Chassis Mount |
|
|
DHG40C1200HBDIODE ARRAY GP 1200V 20A TO247AD |
2,382 | 6.62 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Standard | 1200 V | 20A | 2.69 V @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | 75 ns | 30 µA @ 1200 V | -55°C ~ 150°C | Through Hole |
|
|
DHG60C600HBDIODE ARRAY GP 600V 30A TO247AD |
2,842 | 6.80 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Standard | 600 V | 30A | 2.36 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 50 µA @ 600 V | -55°C ~ 150°C | Through Hole |
|
|
DHG40C600HBDIODE ARRAY GP 600V 20A TO247AD |
2,145 | 6.00 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Standard | 600 V | 20A | 2.31 V @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 30 µA @ 600 V | -55°C ~ 150°C | Through Hole |
|
|
DSEC60-06BDIODE ARRAY GP 600V 30A TO247AD |
3,581 | 6.40 |
RFQ |
Datasheet |
Tube | HiPerFRED™ | Active | 1 Pair Common Cathode | Standard | 600 V | 30A | 2.51 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 250 µA @ 600 V | -55°C ~ 175°C | Through Hole |
