| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeConfiguration | DiodeType | Voltage-DCReverse(Vr)(Max) | Current-AverageRectified(Io)(perDiode) | Voltage-Forward(Vf)(Max)@If | Speed | ReverseRecoveryTime(trr) | Current-ReverseLeakage@Vr | OperatingTemperature-Junction | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MDD172-08N1DIODE MODULE 800V 190A Y4-M6 |
2,158 | 53.31 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 800 V | 190A | 1.15 V @ 300 A | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 800 V | - | Chassis Mount |
|
LSIC2SD120N80PASIC SCHOTTKY DIODE 1200V 2X40A |
3,168 | 81.00 |
RFQ |
Datasheet |
Tube | - | Active | 2 Independent | Silicon Carbide Schottky | 1200 V | 75A (DC) | 1.8 V @ 40 A | No Recovery Time > 500mA (Io) | 0 ns | 100 µA @ 1200 V | -55°C ~ 175°C | Chassis Mount |
|
MDD312-12N1DIODE MODULE 1.2KV 310A Y1-CU |
2,423 | 139.14 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1200 V | 310A | 1.32 V @ 600 A | Standard Recovery >500ns, > 200mA (Io) | - | 30 mA @ 1200 V | - | Chassis Mount |
|
|
MDD312-18N1DIODE MODULE 1.8KV 310A Y1-CU |
3,785 | 152.57 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1800 V | 310A | 1.32 V @ 600 A | Standard Recovery >500ns, > 200mA (Io) | - | 30 mA @ 1800 V | - | Chassis Mount |
|
|
MDD255-20N1DIODE MODULE 2KV 270A Y1-CU |
3,560 | 157.40 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 2000 V | 270A | 1.4 V @ 600 A | Standard Recovery >500ns, > 200mA (Io) | - | 30 mA @ 2000 V | - | Chassis Mount |
|

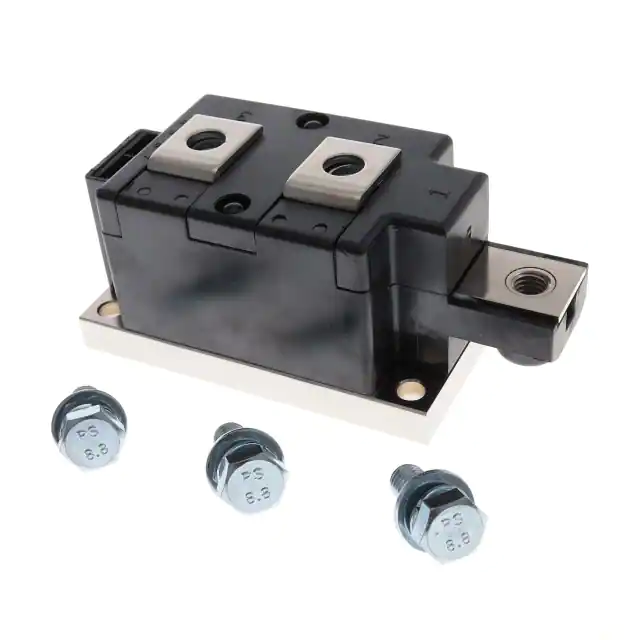

MDD255-22N1DIODE MODULE 2.2KV 270A Y1-CU |
2,444 | 169.51 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 2200 V | 270A | 1.4 V @ 600 A | Standard Recovery >500ns, > 200mA (Io) | - | 30 mA @ 2200 V | - | Chassis Mount |
|

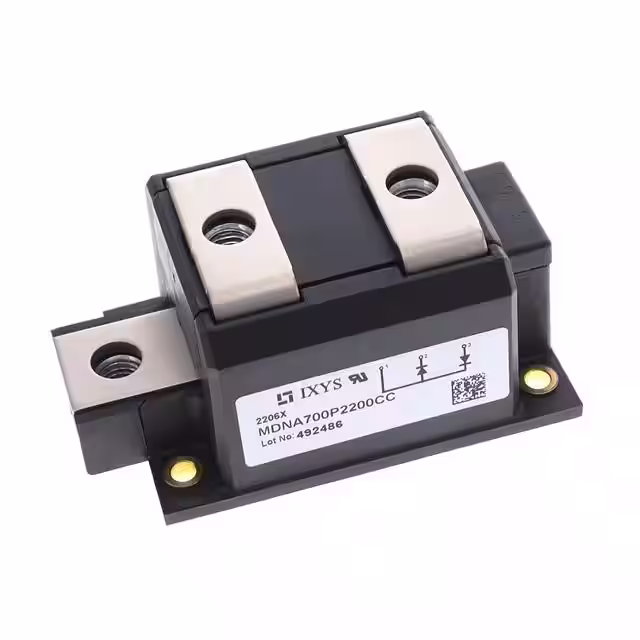

MDNA700P2200CCCOMPACK |
3,541 | 248.89 |
RFQ |
Box | - | Active | 1 Pair Series Connection | Standard | 2200 V | 700A | 1.14 V @ 700 A | Standard Recovery >500ns, > 200mA (Io) | - | 500 µA @ 2200 V | -40°C ~ 150°C | Chassis Mount | |
|
|
MDD175-34N1DIODE MODULE 3.4KV 240A Y1-CU |
3,247 | 278.48 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 3400 V | 240A | 1.07 V @ 200 A | Standard Recovery >500ns, > 200mA (Io) | - | 1 mA @ 3400 V | - | Chassis Mount |
|
DPG30C300PC-TRLDIODE ARRAY GP 300V 15A TO263 |
800 | 1.63 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HiPerFRED²™ | Active | 1 Pair Common Cathode | Standard | 300 V | 15A | 1.26 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 1 µA @ 300 V | -55°C ~ 175°C | Surface Mount |
|
|
DSA20C150PNDIODE ARRAY SCHOTTKY 150V TO220F |
2,732 | 1.82 |
RFQ |
Datasheet |
Tube | - | Discontinued at Mosen | 1 Pair Common Cathode | Schottky | 150 V | 10A | 880 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 300 µA @ 150 V | -55°C ~ 175°C | Through Hole |
|
DSA30C60PBDIODE ARRAY SCHOTTKY 60V TO220AB |
100 | 1.93 |
RFQ |
Datasheet |
Tube | - | Discontinued at Mosen | 1 Pair Common Cathode | Schottky | 60 V | 15A | 850 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 60 V | -55°C ~ 175°C | Through Hole |
|
|
DSB30C45PBDIODE ARRAY SCHOTTKY 45V TO220AB |
100 | 1.93 |
RFQ |
Datasheet |
Tube | - | Discontinued at Mosen | 1 Pair Common Cathode | Schottky | 45 V | 15A | 590 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 mA @ 45 V | -55°C ~ 150°C | Through Hole |
|
|
DSB30C60PBDIODE ARRAY SCHOTTKY 60V TO220AB |
3,203 | 1.93 |
RFQ |
Datasheet |
Tube | - | Discontinued at Mosen | 1 Pair Common Cathode | Schottky | 60 V | 15A | 780 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 mA @ 60 V | -55°C ~ 150°C | Through Hole |
|
|
DSA30C100PBDIODE ARRAY SCHOTTKY 100V TO220 |
2,283 | 2.01 |
RFQ |
Datasheet |
Tube | - | Discontinued at Mosen | 1 Pair Common Cathode | Schottky | 100 V | 15A | 910 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 300 µA @ 100 V | -55°C ~ 175°C | Through Hole |
|
|
DSA60C60PBDIODE ARRAY SCHOTTKY 60V TO220AB |
3,689 | 2.69 |
RFQ |
Datasheet |
Tube | - | Discontinued at Mosen | 1 Pair Common Cathode | Schottky | 60 V | 30A | 850 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 60 V | -55°C ~ 175°C | Through Hole |
|
|
DSA60C45PBDIODE ARRAY SCHOTTKY 45V TO220AB |
3,263 | 2.69 |
RFQ |
Datasheet |
Tube | - | Discontinued at Mosen | 1 Pair Common Cathode | Schottky | 45 V | 30A | 790 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 900 µA @ 45 V | -55°C ~ 175°C | Through Hole |
|
|
DSA60C100PBDIODE ARRAY SCHOTTKY 100V TO220 |
2,044 | 2.84 |
RFQ |
Datasheet |
Tube | - | Discontinued at Mosen | 1 Pair Common Cathode | Schottky | 100 V | 30A | 950 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 100 V | -55°C ~ 175°C | Through Hole |
|
|
DSSK48-0025BDIODE ARRAY SCHOTTKY 25V TO220AB |
3,754 | 3.27 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 Pair Common Cathode | Schottky | 25 V | 25A | 440 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 20 mA @ 25 V | -55°C ~ 150°C | Through Hole |
.jpg)
|
DSA30C100HBDIODE ARRAY SCHOTTKY 100V TO247 |
2,910 | 3.40 |
RFQ |
Datasheet |
Tube | - | Discontinued at Mosen | 1 Pair Common Cathode | Schottky | 100 V | 15A | 910 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 250 µA @ 100 V | -55°C ~ 175°C | Through Hole |
|
|
DSA30C150HBDIODE ARRAY SCHOTTKY 150V TO247 |
2,515 | 3.57 |
RFQ |
Datasheet |
Tube | - | Discontinued at Mosen | 1 Pair Common Cathode | Schottky | 150 V | 15A | 880 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 300 nA @ 150 V | -55°C ~ 175°C | Through Hole |
