| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ALS70A474NF025CAP ALUM 470000UF 20% 25V SCREW |
2,377 | 63.01 |
RFQ |
Datasheet |
Bulk | ALS70 | Active | 470000 µF | ±20% | 25 V | 9mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 28 A @ 100 Hz | 28.6 A @ 10 kHz | 10 mOhms | 1.252 (31.80mm) | 3.031 Dia (77.00mm) | 4.213 (107.00mm) | - | Chassis Mount |
|
ALS80A433NF100CAP ALUM 43000UF 20% 100V SCREW |
2,107 | 66.89 |
RFQ |
Datasheet |
Bulk | ALS80 | Active | 43000 µF | ±20% | 100 V | 13mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 22 A @ 100 Hz | 24.2 A @ 10 kHz | 12 mOhms | 1.252 (31.80mm) | 3.031 Dia (77.00mm) | 4.213 (107.00mm) | - | Chassis Mount |
|
ALF70G162EL400CAP ALUM 1600UF 20% 400V SNAP |
2,286 | 20.52 |
RFQ |
Datasheet |
Bulk | ALF70 | Active | 1600 µF | ±20% | 400 V | 92mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.27 A @ 100 Hz | 10.65 A @ 10 kHz | 51 mOhms | 0.984 (25.00mm) | 1.575 Dia (40.00mm) | 3.228 (82.00mm) | - | Through Hole, Press-Fit |
|
|
ALS70A134NF063CAP ALUM 130000UF 20% 63V SCREW |
3,504 | 66.99 |
RFQ |
Datasheet |
Bulk | ALS70 | Active | 130000 µF | ±20% | 63 V | 9mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 27.3 A @ 100 Hz | 28.9 A @ 10 kHz | 10 mOhms | 1.252 (31.80mm) | 3.031 Dia (77.00mm) | 4.213 (107.00mm) | - | Chassis Mount |
|
ALS30A473DF025CAP ALUM 47000UF 20% 25V SCREW |
2,875 | 21.30 |
RFQ |
Datasheet |
Box | ALS30 | Active | 47000 µF | ±20% | 25 V | 9mOhm @ 100Hz | 11000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 16.6 A @ 100 Hz | 17.4 A @ 10 kHz | 7 mOhms | 0.504 (12.80mm) | 1.417 Dia (36.00mm) | 4.134 (105.00mm) | - | Chassis Mount |
|
ALC10A102DL400CAP ALUM 1000UF 20% 400V SNAP |
3,158 | 21.39 |
RFQ |
Datasheet |
Box | ALC10 | Active | 1000 µF | ±20% | 400 V | 112mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.98 A @ 100 Hz | 6.32 A @ 10 kHz | 77 mOhms | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 3.150 (80.00mm) | - | Through Hole |
|
|
ALS70A164NP063CAP ALUM 160000UF 20% 63V SCREW |
3,522 | 72.13 |
RFQ |
Datasheet |
Bulk | ALS70 | Active | 160000 µF | ±20% | 63 V | 8mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 30.6 A @ 100 Hz | 32.2 A @ 10 kHz | 9 mOhms | 1.252 (31.80mm) | 3.031 Dia (77.00mm) | 5.827 (148.00mm) | - | Chassis Mount |
|
ALS40A472DF100CAP ALUM 4700UF 20% 100V SCREW |
2,112 | 22.06 |
RFQ |
Datasheet |
Box | ALS40 | Active | 4700 µF | ±20% | 100 V | 26mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 8.1 A @ 100 Hz | 9.3 A @ 10 kHz | 21 mOhms | 0.504 (12.80mm) | 1.417 Dia (36.00mm) | 4.134 (105.00mm) | - | Chassis Mount |
|
|
ALS70A103NP350CAP ALUM 10000UF 20% 350V SCREW |
2,152 | 76.05 |
RFQ |
Datasheet |
Bulk | ALS70 | Active | 10000 µF | ±20% | 350 V | 24mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 19.1 A @ 100 Hz | 26.2 A @ 10 kHz | 16 mOhms | 1.252 (31.80mm) | 3.031 Dia (77.00mm) | 5.827 (148.00mm) | - | Chassis Mount |
|
ALC70A102EL500CAP ALUM 1000UF 20% 500V SNAP |
2,424 | 22.44 |
RFQ |
Datasheet |
Bulk | ALC70 | Active | 1000 µF | ±20% | 500 V | 209mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.42 A @ 100 Hz | 8.53 A @ 10 kHz | 150 mOhms | 0.394 (10.00mm) | 1.575 Dia (40.00mm) | 3.228 (82.00mm) | - | Through Hole |
|

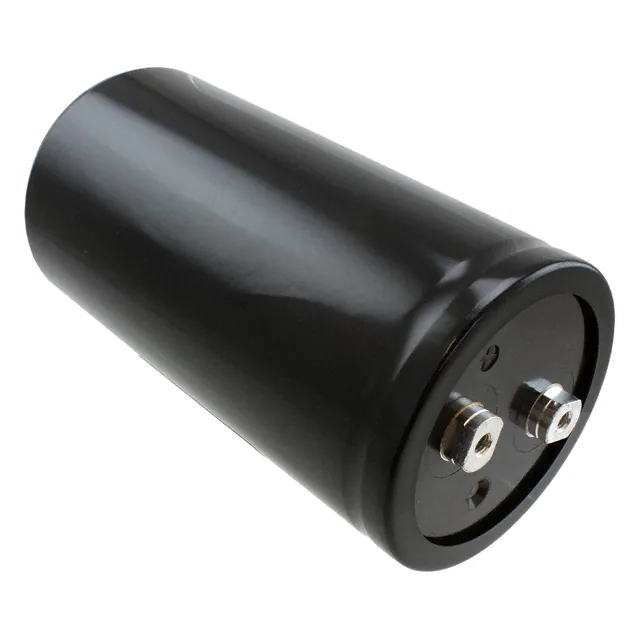

ALS41A154NP040CAP ALUM 150000UF 20% 40V SCREW |
2,262 | 80.24 |
RFQ |
Datasheet |
Bulk | ALS41 | Active | 150000 µF | ±20% | 40 V | 5mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 31.3 A @ 100 Hz | 31.6 A @ 10 kHz | 5 mOhms | 1.252 (31.80mm) | 3.032 Dia (77.00mm) | 5.827 (148.00mm) | - | Chassis Mount |
|
|
ALS30A682DF100CAP ALUM 6800UF 20% 100V SCREW |
3,992 | 23.52 |
RFQ |
Datasheet |
Box | ALS30 | Active | 6800 µF | ±20% | 100 V | 23mOhm @ 100Hz | 11000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 10 A @ 100 Hz | 11.1 A @ 10 kHz | 19 mOhms | 0.504 (12.80mm) | 1.417 Dia (36.00mm) | 4.134 (105.00mm) | - | Chassis Mount |
|
PEH169HA4470QU2CAP ALUM 4700UF 25V SCREW |
3,493 | 23.76 |
RFQ |
Datasheet |
Bulk | PEH169 | Active | 4700 µF | -10%, +30% | 25 V | 41mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.512 (13.00mm) | 1.378 Dia (35.00mm) | 2.047 (52.00mm) | - | Chassis Mount |
|
PEH169KA4330QB2CAP ALUM 3300UF 40V SCREW |
2,967 | 24.42 |
RFQ |
Datasheet |
Box | PEH169 | Active | 3300 µF | -10%, +30% | 40 V | 41mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.6 A @ 100 Hz | 17.6 A @ 10 kHz | - | 0.512 (13.00mm) | 1.441 Dia (36.60mm) | 2.028 (51.50mm) | - | Chassis Mount |
|
|
ALS70A562NP500CAP ALUM 5600UF 20% 500V SCREW |
2,368 | 88.77 |
RFQ |
Datasheet |
Bulk | ALS70 | Active | 5600 µF | ±20% | 500 V | 49mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 16.6 A @ 100 Hz | 24 A @ 10 kHz | 38 mOhms | 1.252 (31.80mm) | 3.031 Dia (77.00mm) | 5.827 (148.00mm) | - | Chassis Mount |
|
PEH169PA4100QB2CAP ALUM 1000UF 100V SCREW |
2,941 | 25.75 |
RFQ |
Datasheet |
Bulk | PEH169 | Active | 1000 µF | -10%, +30% | 100 V | 110mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.512 (13.00mm) | 1.378 Dia (35.00mm) | 2.047 (52.00mm) | - | Chassis Mount |
|
ALC10C102EJ450CAP ALUM 1000UF 20% 450V SNAP |
3,598 | 26.15 |
RFQ |
Datasheet |
Bulk | ALC10 | Active | 1000 µF | ±20% | 450 V | 142mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.42 A @ 100 Hz | 8.42 A @ 10 kHz | 93 mOhms | 0.886 (22.50mm) | 1.575 Dia (40.00mm) | 2.835 (72.00mm) | - | Through Hole |
|
|
ALS30A222KE250CAP ALUM 2200UF 20% 250V SCREW |
2,059 | 29.72 |
RFQ |
Datasheet |
Box | ALS30 | Active | 2200 µF | ±20% | 250 V | 69mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.7 A @ 100 Hz | 9.1 A @ 10 kHz | 55 mOhms | 0.874 (22.20mm) | 2.008 Dia (51.00mm) | 3.228 (82.00mm) | - | Chassis Mount |
|
|
ALS70A334QS063CAP ALUM 330000UF 20% 63V SCREW |
2,525 | 122.70 |
RFQ |
Datasheet |
Bulk | ALS70 | Active | 330000 µF | ±20% | 63 V | 5mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 41.7 A @ 100 Hz | 43.3 A @ 10 kHz | 7 mOhms | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 7.717 (196.00mm) | - | Chassis Mount |
|
|
ALF70G272FP400CAP ALUM 2700UF 20% 400V SNAP |
2,679 | 32.29 |
RFQ |
Datasheet |
Bulk | ALF70 | Active | 2700 µF | ±20% | 400 V | 55mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.49 A @ 100 Hz | 15.09 A @ 10 kHz | 30 mOhms | 0.984 (25.00mm) | 1.772 Dia (45.00mm) | 4.213 (107.00mm) | - | Through Hole, Press-Fit |
