| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ALS70A473QS200CAP ALUM 47000UF 20% 200V SCREW |
2,220 | 137.23 |
RFQ |
Datasheet |
Bulk | ALS70 | Active | 47000 µF | ±20% | 200 V | 11mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 31.9 A @ 100 Hz | 37 A @ 10 kHz | 10 mOhms | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 7.717 (196.00mm) | - | Chassis Mount |
|
|
ALS70A183QS400CAP ALUM 18000UF 20% 400V SCREW |
2,627 | 143.99 |
RFQ |
Datasheet |
Bulk | ALS70 | Active | 18000 µF | ±20% | 400 V | 13mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 27.8 A @ 100 Hz | 37 A @ 10 kHz | 10 mOhms | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 7.717 (196.00mm) | - | Chassis Mount |
|
ALS80A303QT250CAP ALUM 30000UF 20% 250V SCREW |
3,523 | 145.43 |
RFQ |
Datasheet |
Bulk | ALS80 | Active | 30000 µF | ±20% | 250 V | 11mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 26.4 A @ 100 Hz | 32.5 A @ 10 kHz | 10 mOhms | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 8.740 (222.00mm) | - | Chassis Mount |
|
ALS30A103KE100CAP ALUM 10000UF 20% 100V SCREW |
3,018 | 34.15 |
RFQ |
Datasheet |
Bulk | ALS30 | Active | 10000 µF | ±20% | 100 V | 28mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 10.1 A @ 100 Hz | 10.5 A @ 10 kHz | 24 mOhms | 0.874 (22.20mm) | 2.008 Dia (51.00mm) | 3.307 (84.00mm) | - | Chassis Mount |
|

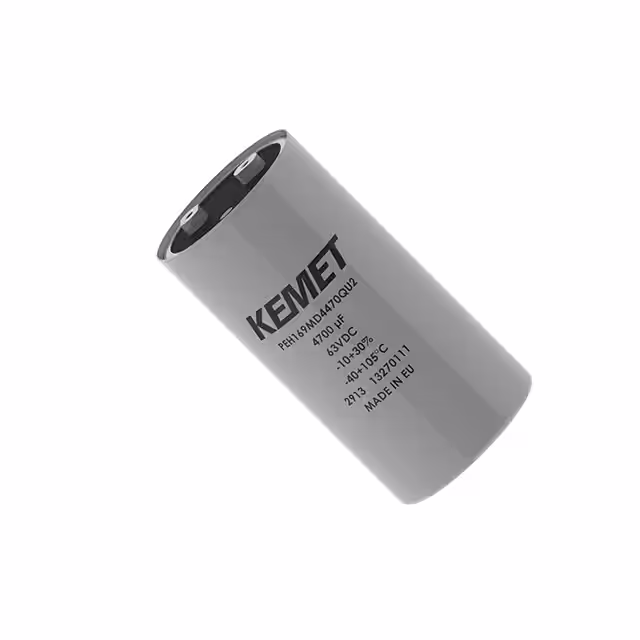

PEH169MD4470QB2CAP ALUM 4700UF 63V SCREW |
3,221 | 35.92 |
RFQ |
Datasheet |
Bulk | PEH169 | Active | 4700 µF | -10%, +30% | 63 V | 22mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | 11 mOhms | 0.512 (13.00mm) | 1.441 Dia (36.60mm) | 3.839 (97.50mm) | - | Chassis Mount |
|
ALC70C272KP450CAP ALUM 2700UF 20% 450V SNAP |
3,857 | 40.39 |
RFQ |
Datasheet |
Bulk | ALC70 | Active | 2700 µF | ±20% | 450 V | 53mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8.45 A @ 100 Hz | 15.99 A @ 10 kHz | 31 mOhms | 0.886 (22.50mm) | 1.969 Dia (50.00mm) | 4.213 (107.00mm) | - | Through Hole |
|
ALF70G362KP400CAP ALUM 3600UF 20% 400V SNAP |
3,882 | 41.00 |
RFQ |
Datasheet |
Bulk | ALF70 | Active | 3600 µF | ±20% | 400 V | 43mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8.98 A @ 100 Hz | 16.52 A @ 10 kHz | 25 mOhms | 0.984 (25.00mm) | 1.969 Dia (50.00mm) | 4.213 (107.00mm) | - | Through Hole, Press-Fit |
|
|
ALS30A102KF500CAP ALUM 1000UF 20% 500V SCREW |
2,227 | 42.82 |
RFQ |
Datasheet |
Bulk | ALS30 | Active | 1000 µF | ±20% | 500 V | 165mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | 130 mOhms | 0.874 (22.20mm) | 2.008 Dia (51.00mm) | 4.213 (107.00mm) | - | Chassis Mount |
|
PEH169VH3470QB2CAP ALUM 470UF 400V SCREW |
2,614 | 46.78 |
RFQ |
Datasheet |
Box | PEH169 | Active | 470 µF | -10%, +30% | 400 V | 160mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4 A @ 100 Hz | 13.5 A @ 10 kHz | - | 0.866 (22.00mm) | 2.031 Dia (51.60mm) | 2.933 (74.50mm) | - | Chassis Mount |
|
|
ALS30A222KF400CAP ALUM 2200UF 20% 400V SCREW |
2,812 | 47.52 |
RFQ |
Datasheet |
Bulk | ALS30 | Active | 2200 µF | ±20% | 400 V | 78mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8.4 A @ 100 Hz | 13.5 A @ 10 kHz | 56 mOhms | 0.874 (22.20mm) | 2.008 Dia (51.00mm) | 4.213 (107.00mm) | - | Chassis Mount |
|
ALS31A103NF200CAP ALUM 10000UF 20% 200V SCREW |
2,849 | 68.22 |
RFQ |
Datasheet |
Box | ALS31 | Active | 10000 µF | ±20% | 200 V | 28mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 14.9 A @ 100 Hz | 15.9 A @ 10 kHz | 25 mOhms | 1.252 (31.80mm) | 3.031 Dia (77.00mm) | 4.134 (105.00mm) | - | Chassis Mount |
|
ALS30A472NJ450CAP ALUM 4700UF 20% 450V SCREW |
2,320 | 95.60 |
RFQ |
Datasheet |
Bulk | ALS30 | Active | 4700 µF | ±20% | 450 V | 13mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 14.93 A @ 100 Hz | 22.76 A @ 10 kHz | 20 mOhms | 1.252 (31.80mm) | 3.032 Dia (77.00mm) | 4.606 (117.00mm) | - | Chassis Mount |
|
ALS30A332NP450CAP ALUM 3300UF 20% 450V SCREW |
2,515 | 72.48 |
RFQ |
Datasheet |
Box | ALS30 | Active | 3300 µF | ±20% | 450 V | 39mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 16.1 A @ 100 Hz | 25.1 A @ 10 kHz | 27 mOhms | 1.252 (31.80mm) | 3.031 Dia (77.00mm) | 5.748 (146.00mm) | - | Chassis Mount |
|
PEH169MT5220QB2CAP ALUM 22000UF 63V SCREW |
2,420 | 77.93 |
RFQ |
Datasheet |
Bulk | PEH169 | Active | 22000 µF | -10%, +30% | 63 V | 6mOhm @ 100Hz | 13000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 1.260 (32.00mm) | 2.953 Dia (75.00mm) | 4.173 (106.00mm) | - | Chassis Mount |
|
|
ALS31A472NF400CAP ALUM 4700UF 20% 400V SCREW |
3,944 | 79.90 |
RFQ |
Datasheet |
Box | ALS31 | Active | 4700 µF | ±20% | 400 V | 38mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 14.6 A @ 100 Hz | 20.9 A @ 10 kHz | 26 mOhms | 1.252 (31.80mm) | 3.031 Dia (77.00mm) | 4.134 (105.00mm) | - | Chassis Mount |
|
|
ALS31A104NP063CAP ALUM 100000UF 20% 63V SCREW |
3,424 | 82.05 |
RFQ |
Datasheet |
Box | ALS31 | Active | 100000 µF | ±20% | 63 V | 6mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 34.8 A @ 100 Hz | 35.4 A @ 10 kHz | 6 mOhms | 1.252 (31.80mm) | 3.031 Dia (77.00mm) | 5.748 (146.00mm) | - | Chassis Mount |
|
PEH200MO5470MB2CAP ALUM 47000UF 20% 63V SCREW |
2,169 | 84.59 |
RFQ |
Datasheet |
Bulk | PEH200 | Active | 47000 µF | ±20% | 63 V | 10mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 21.8 A @ 100 Hz | - | - | 1.122 (28.50mm) | 2.622 Dia (66.60mm) | 4.213 (107.00mm) | - | Chassis Mount |
|

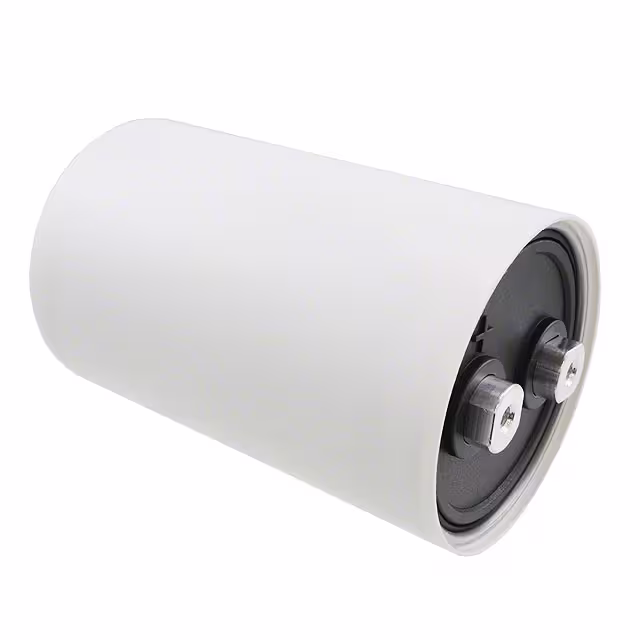

PEH200YU433CMB2CAP ALUM 3300UF 20% 450V SCREW |
2,295 | 140.73 |
RFQ |
Datasheet |
Bulk | PEH200 | Active | 3300 µF | ±20% | 450 V | 30mOhm @ 100Hz | 19000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | 17 mOhms | 1.260 (32.00mm) | 3.016 Dia (76.60mm) | 4.685 (119.00mm) | - | Chassis Mount |
|
ALS70A472QP630CAP ALUM 4700UF 20% 630V SCREW |
2,990 | 141.42 |
RFQ |
Datasheet |
Bulk | ALS70 | Active | 4700 µF | ±20% | 630 V | 36mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 19.4 A @ 100 Hz | 30.3 A @ 10 kHz | 25 mOhms | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 5.748 (146.00mm) | - | Chassis Mount |
|
EDK226M6R3A9BAACAP ALUM 22UF 20% 6.3V SMD |
2,129 | 0.39 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | EDK | Active | 22 µF | ±20% | 6.3 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 20 mA @ 120 Hz | 25 mA @ 10 kHz | - | - | 0.157 Dia (4.00mm) | 0.222 (5.65mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
