| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ELG687M100AQ1AACAP ALUM 680UF 20% 100V SNAP |
2,224 | 2.48 |
RFQ |
Datasheet |
Bulk | ELG | Active | 680 µF | ±20% | 100 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.2 A @ 120 Hz | 1.392 A @ 10 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
ELH109M025AR2AACAP ALUM 10000UF 20% 25V SNAP |
400 | 3.14 |
RFQ |
Datasheet |
Bulk | ELH | Active | 10000 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.15 A @ 120 Hz | 3.654 A @ 10 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
ELH107M400AQ2AACAP ALUM 100UF 20% 400V SNAP |
2,169 | 3.22 |
RFQ |
Datasheet |
Bulk | ELH | Active | 100 µF | ±20% | 400 V | 582mOhm @ 20kHz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 900 mA @ 120 Hz | 1.305 A @ 10 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
ELG107M450AR2AACAP ALUM 100UF 20% 450V SNAP |
2,213 | 4.30 |
RFQ |
Datasheet |
Bulk | ELG | Active | 100 µF | ±20% | 450 V | 628mOhm @ 20kHz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 600 mA @ 120 Hz | 870 mA @ 10 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
ELH228M100AS2AVCAP ALUM 2200UF 20% 100V SNAP |
3,314 | 4.59 |
RFQ |
Datasheet |
Box | ELH | Active | 2200 µF | ±20% | 100 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.55 A @ 120 Hz | 4.118 A @ 10 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
ALC80A471DG450CAP ALUM 470UF 20% 450V SNAP |
2,642 | 11.99 |
RFQ |
Datasheet |
Bulk | ALC80 | Active | 470 µF | ±20% | 450 V | 278mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.82 A @ 100 Hz | 7.62 A @ 10 kHz | 160 mOhms | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 2.244 (57.00mm) | - | Through Hole |
|
A331FB221M400ACAP ALUM 220UF 20% 400V SCREW |
3,005 | 14.46 |
RFQ |
Datasheet |
Bulk,Box | ALS30 | Active | 220 µF | ±20% | 400 V | 570mOhm @ 100Hz | 11000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.1 A @ 100 Hz | 4.4 A @ 10 kHz | 387 mOhms | 0.504 (12.80mm) | 1.417 Dia (36.00mm) | 2.126 (54.00mm) | - | Chassis Mount |
|

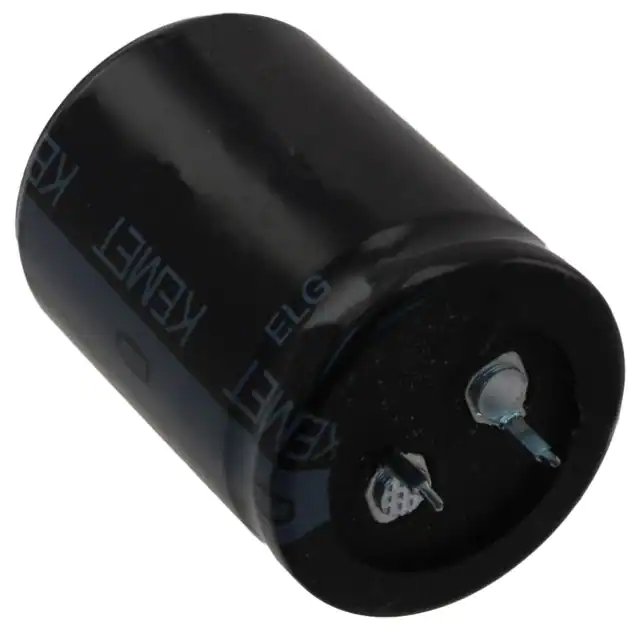

ELG108M200AS4AACAP ALUM 1000UF 20% 200V SNAP |
2,435 | 5.91 |
RFQ |
Datasheet |
Bulk,Bulk | ELG | Active | 1000 µF | ±20% | 200 V | 90mOhm @ 20kHz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.3 A @ 120 Hz | 3.45 A @ 10 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
ALS70A511DA400CAP ALUM 510UF 20% 400V SCREW |
2,563 | 15.31 |
RFQ |
Datasheet |
Bulk | ALS70 | Active | 510 µF | ±20% | 400 V | 304mOhm @ 100Hz | 11000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.1 A @ 100 Hz | 6.9 A @ 10 kHz | 172 mOhms | 0.504 (12.80mm) | 1.417 Dia (36.00mm) | 2.126 (54.00mm) | - | Chassis Mount |
|
ALS80A821DE400CAP ALUM 820UF 20% 400V SCREW |
3,929 | 19.76 |
RFQ |
Datasheet |
Bulk | ALS80 | Active | 820 µF | ±20% | 400 V | 163mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.8 A @ 100 Hz | 9.1 A @ 10 kHz | 92 mOhms | 0.504 (12.80mm) | 1.417 Dia (36.00mm) | 3.307 (84.00mm) | - | Chassis Mount |
|
|
ALS80A393DB025CAP ALUM 39000UF 20% 25V SCREW |
3,853 | 16.36 |
RFQ |
Datasheet |
Bulk | ALS80 | Active | 39000 µF | ±20% | 25 V | 38mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 9.8 A @ 100 Hz | 11.7 A @ 10 kHz | 34 mOhms | 0.504 (12.80mm) | 1.417 Dia (36.00mm) | 2.520 (64.00mm) | - | Chassis Mount |
|
ELH478M080AS3AACAP ALUM 4700UF 20% 80V SNAP |
2,357 | 6.54 |
RFQ |
Bulk | ELH | Active | 4700 µF | ±20% | 80 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.457 (37.00mm) | - | Through Hole | |
|
|
ALS80A471DB450CAP ALUM 470UF 20% 450V SCREW |
3,734 | 17.64 |
RFQ |
Datasheet |
Bulk | ALS80 | Active | 470 µF | ±20% | 450 V | 328mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.8 A @ 100 Hz | 7.1 A @ 10 kHz | 202 mOhms | 0.504 (12.80mm) | 1.417 Dia (36.00mm) | 2.520 (64.00mm) | - | Chassis Mount |
|
|
ALC80A102BB100CAP ALUM 1000UF 20% 100V SNAP |
3,736 | 7.12 |
RFQ |
Datasheet |
Bulk | ALC80 | Active | 1000 µF | ±20% | 100 V | 289mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.36 A @ 100 Hz | 3.4 A @ 10 kHz | 237 mOhms | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
|
ALS70A363DE040CAP ALUM 36000UF 20% 40V SCREW |
2,180 | 19.39 |
RFQ |
Datasheet |
Bulk | ALS70 | Active | 36000 µF | ±20% | 40 V | 27mOhm @ 100Hz | 11000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 12.7 A @ 100 Hz | 15.1 A @ 10 kHz | 23 mOhms | 0.504 (12.80mm) | 1.417 Dia (36.00mm) | 3.307 (84.00mm) | - | Chassis Mount |
|
|
ALS70A823DF025CAP ALUM 82000UF 20% 25V SCREW |
3,479 | 20.34 |
RFQ |
Datasheet |
Bulk | ALS70 | Active | 82000 µF | ±20% | 25 V | 20mOhm @ 100Hz | 11000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 14.6 A @ 100 Hz | 16.1 A @ 10 kHz | 19 mOhms | 0.504 (12.80mm) | 1.417 Dia (36.00mm) | 4.213 (107.00mm) | - | Chassis Mount |
|
|
ALS70A243DF063CAP ALUM 24000UF 20% 63V SCREW |
2,035 | 21.68 |
RFQ |
Datasheet |
Bulk | ALS70 | Active | 24000 µF | ±20% | 63 V | 22mOhm @ 100Hz | 11000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 13.2 A @ 100 Hz | 16.4 A @ 10 kHz | 18 mOhms | 0.504 (12.80mm) | 1.417 Dia (36.00mm) | 4.213 (107.00mm) | - | Chassis Mount |
|
|
ALC80A103CD040CAP ALUM 10000UF 20% 40V SNAP |
2,367 | 8.74 |
RFQ |
Datasheet |
Bulk | ALC80 | Active | 10000 µF | ±20% | 40 V | 51mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 6.51 A @ 100 Hz | 9.23 A @ 10 kHz | 41 mOhms | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
ALC70A332DC100CAP ALUM 3300UF 20% 100V SNAP |
2,662 | 8.78 |
RFQ |
Datasheet |
Bulk | ALC70 | Active | 3300 µF | ±20% | 100 V | 84mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.89 A @ 100 Hz | 6.47 A @ 10 kHz | 67 mOhms | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
|
ALC70A471EB350CAP ALUM 470UF 20% 350V SNAP |
3,464 | 9.40 |
RFQ |
Datasheet |
Bulk | ALC70 | Active | 470 µF | ±20% | 350 V | 312mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.29 A @ 100 Hz | 5 A @ 10 kHz | 166 mOhms | 0.394 (10.00mm) | 1.575 Dia (40.00mm) | 1.260 (32.00mm) | - | Through Hole |
