| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

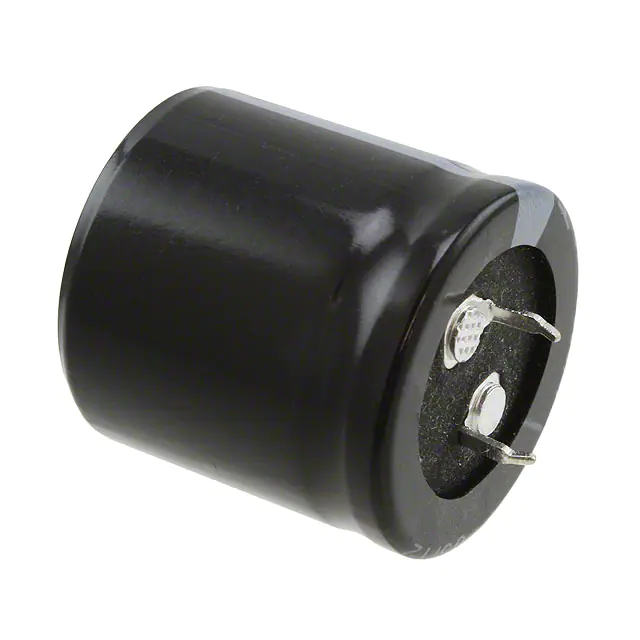

ELH688M050AS2AACAP ALUM 6800UF 20% 50V SNAP |
2,475 | 4.86 |
RFQ |
Datasheet |
Bulk | ELH | Active | 6800 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.8 A @ 120 Hz | 4.408 A @ 10 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
ALS70A273NT250CAP ALUM 27000UF 20% 250V SCREW |
2,690 | 108.02 |
RFQ |
Datasheet |
Bulk | ALS70 | Active | 27000 µF | ±20% | 250 V | 15mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 25.1 A @ 100 Hz | 30.5 A @ 10 kHz | 12 mOhms | 1.252 (31.80mm) | 3.031 Dia (77.00mm) | 8.740 (222.00mm) | - | Chassis Mount |
|
|
ALS70A135QT025CAP ALUM 1.3F 20% 25V SCREW |
2,368 | 126.68 |
RFQ |
Datasheet |
Bulk | ALS70 | Active | 1.3 F | ±20% | 25 V | 5mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 42.9 A @ 100 Hz | 43.5 A @ 10 kHz | 7 mOhms | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 8.740 (222.00mm) | - | Chassis Mount |
|
|
ALS70A243QT350CAP ALUM 24000UF 20% 350V SCREW |
2,475 | 155.10 |
RFQ |
Datasheet |
Bulk | ALS70 | Active | 24000 µF | ±20% | 350 V | 12mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 30 A @ 100 Hz | 38 A @ 10 kHz | 9 mOhms | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 8.740 (222.00mm) | - | Chassis Mount |
|

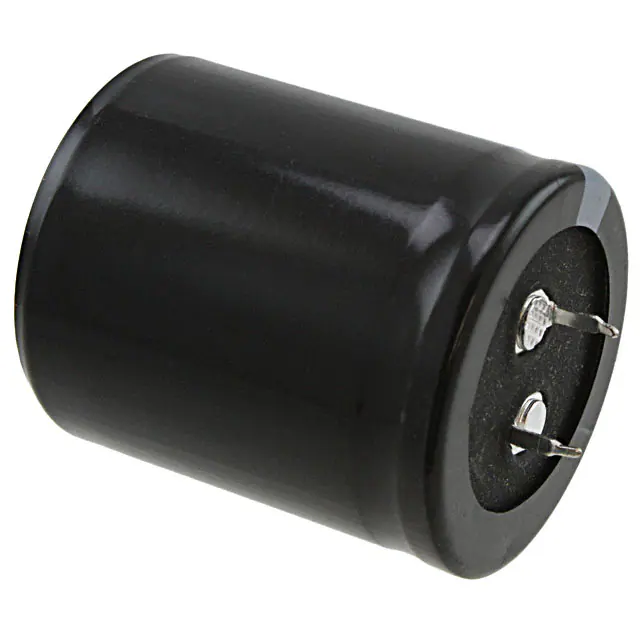

ELG108M250AT4AACAP ALUM 1000UF 20% 250V SNAP |
3,233 | 7.68 |
RFQ |
Datasheet |
Bulk | ELG | Active | 1000 µF | ±20% | 250 V | 90mOhm @ 20kHz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.3 A @ 120 Hz | 3.45 A @ 10 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
ALC70A331DC450CAP ALUM 330UF 20% 450V SNAP |
2,714 | 9.07 |
RFQ |
Datasheet |
Bulk | ALC70 | Active | 330 µF | ±20% | 450 V | 427mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.97 A @ 100 Hz | 4.64 A @ 10 kHz | 241 mOhms | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
|
ALC70A153CD040CAP ALUM 15000UF 20% 40V SNAP |
3,235 | 9.32 |
RFQ |
Datasheet |
Bulk | ALC70 | Active | 15000 µF | ±20% | 40 V | 48mOhm @ 100Hz | 13000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.41 A @ 100 Hz | 8.34 A @ 10 kHz | 40 mOhms | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
ALA7DA681DE400CAP ALUM 680UF 20% 400V SNAP |
3,264 | 11.24 |
RFQ |
Datasheet |
Bulk | ALA7D | Active | 680 µF | ±20% | 400 V | 263.4mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 1.66 A @ 100 Hz | 2.91 A @ 10 kHz | 692.8 mOhms | - | 1.378 Dia (35.00mm) | 1.850 (47.00mm) | - | Through Hole |
|
|
ALA7DA391CF500CAP ALUM 390UF 20% 500V SNAP |
2,704 | 11.52 |
RFQ |
Datasheet |
Bulk | ALA7D | Active | 390 µF | ±20% | 500 V | 636mOhm @ 100Hz | 13000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 2.4 A @ 100 Hz | 5.24 A @ 10 kHz | 193.6 mOhms | - | 1.181 Dia (30.00mm) | 2.047 (52.00mm) | - | Through Hole |
|
ALP22A153DE063CAP ALUM 15000UF 20% 63V SNAP |
2,095 | 12.39 |
RFQ |
Datasheet |
Bulk | ALP22 | Active | 15000 µF | ±20% | 63 V | - | 26000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.787 (20.00mm) | 1.575 Dia (40.00mm) | 3.031 (77.00mm) | - | Through Hole |
|

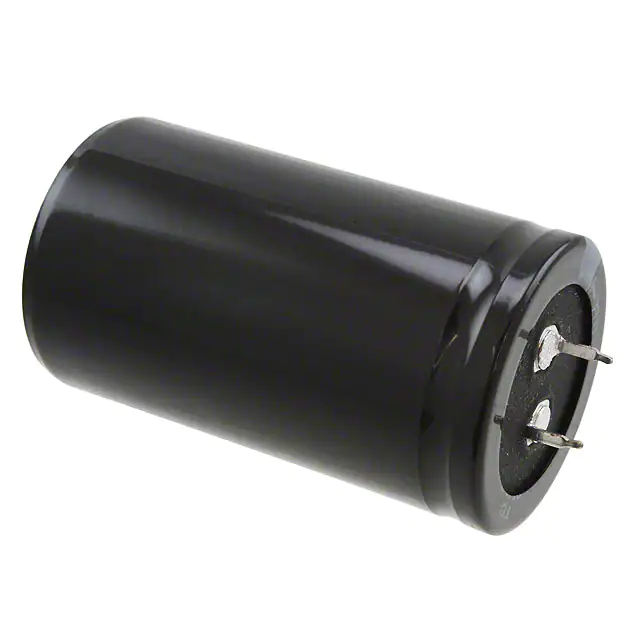

ELG687M450AT8AACAP ALUM 680UF 20% 450V SNAP |
2,030 | 14.28 |
RFQ |
Datasheet |
Bulk | ELG | Active | 680 µF | ±20% | 450 V | 110mOhm @ 20kHz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 2.441 (62.00mm) | - | Through Hole |
|
ALF70C102EH400CAP ALUM 1000UF 20% 400V SNAP |
2,431 | 15.70 |
RFQ |
Datasheet |
Bulk | ALF70 | Active | 1000 µF | ±20% | 400 V | 143mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.97 A @ 100 Hz | 8.66 A @ 10 kHz | 76 mOhms | 0.886 (22.50mm) | 1.575 Dia (40.00mm) | 2.441 (62.00mm) | - | Through Hole, Press-Fit |
|
ALC10A561DF450CAP ALUM 560UF 20% 450V SNAP |
2,922 | 16.66 |
RFQ |
Datasheet |
Bulk | ALC10 | Active | 560 µF | ±20% | 450 V | 266mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.7 A @ 100 Hz | 4.74 A @ 10 kHz | 172 mOhms | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 2.047 (52.00mm) | - | Through Hole |
|
ALC10C471EF450CAP ALUM 470UF 20% 450V SNAP |
2,001 | 17.11 |
RFQ |
Datasheet |
Box | ALC10 | Active | 470 µF | ±20% | 450 V | 243mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.08 A @ 100 Hz | 6.25 A @ 10 kHz | 147 mOhms | 0.886 (22.50mm) | 1.575 Dia (40.00mm) | 2.047 (52.00mm) | - | Through Hole |
|
PEH205KA4470QU0CAP ALUM 4700UF 40V SCREW |
3,238 | 17.52 |
RFQ |
Datasheet |
Bulk | PEH205 | Active | 4700 µF | -10%, +30% | 40 V | 32mOhm @ 100kHz | 4000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 4.8 A @ 100 Hz | - | 17 mOhms | 0.512 (13.00mm) | 1.378 Dia (35.00mm) | 2.047 (52.00mm) | - | Chassis Mount |
|
|
ALF70C432EL200CAP ALUM 4300UF 20% 200V SNAP |
2,188 | 18.26 |
RFQ |
Datasheet |
Bulk | ALF70 | Active | 4300 µF | ±20% | 200 V | 58mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.04 A @ 100 Hz | 11.13 A @ 10 kHz | 39 mOhms | 0.886 (22.50mm) | 1.575 Dia (40.00mm) | 3.228 (82.00mm) | - | Through Hole, Press-Fit |
|

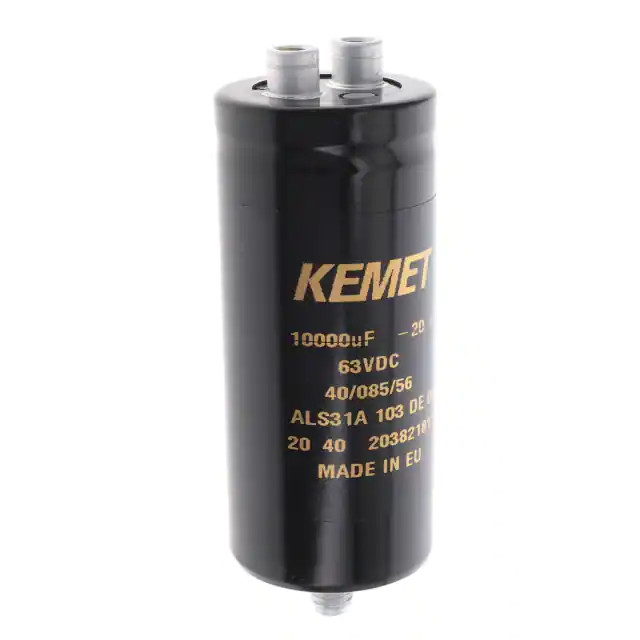

ALS31A103DE063CAP ALUM 10000UF 20% 63V SCREW |
3,000 | 18.93 |
RFQ |
Datasheet |
Box | ALS31 | Active | 10000 µF | ±20% | 63 V | 17mOhm @ 100Hz | 11000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 10.8 A @ 100 Hz | 11.9 A @ 10 kHz | 14 mOhms | 0.504 (12.80mm) | 1.417 Dia (36.00mm) | 3.228 (82.00mm) | - | Chassis Mount |
|
|
ALC10A681DL450CAP ALUM 680UF 20% 450V SNAP |
2,576 | 19.15 |
RFQ |
Datasheet |
Bulk | ALC10 | Active | 680 µF | ±20% | 450 V | 190mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.61 A @ 100 Hz | 6.09 A @ 10 kHz | 131 mOhms | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 3.228 (82.00mm) | - | Through Hole |
|
ALS30A223DE040CAP ALUM 22000UF 20% 40V SCREW |
3,558 | 19.36 |
RFQ |
Datasheet |
Box | ALS30 | Active | 22000 µF | ±20% | 40 V | 11mOhm @ 100Hz | 11000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 12.7 A @ 100 Hz | 13.3 A @ 10 kHz | 10 mOhms | 0.504 (12.80mm) | 1.417 Dia (36.00mm) | 3.228 (82.00mm) | - | Chassis Mount |
|
ALC40C821EL450CAP ALUM 820UF 20% 450V SNAP |
2,373 | 21.88 |
RFQ |
Datasheet |
Bulk | ALC10 | Active | 820 µF | ±20% | 450 V | 154mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.3 A @ 100 Hz | 10.04 A @ 10 kHz | 85 mOhms | 0.886 (22.50mm) | 1.575 Dia (40.00mm) | 3.228 (82.00mm) | - | Through Hole |
