| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ESY108M035AL4AACAP ALUM 1000UF 20% 35V RADIAL |
3,599 | 1.09 |
RFQ |
Datasheet |
Bulk | ESY | Active | 1000 µF | ±20% | 35 V | 18mOhm @ 100kHz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.0775 A @ 120 Hz | 2.77 A @ 100 kHz | 18 mOhms | 0.197 (5.00mm) | 0.512 Dia (13.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
ESH158M035AM7AACAP ALUM 1500UF 20% 35V RADIAL |
2,515 | 1.12 |
RFQ |
Datasheet |
Bulk | ESH | Active | 1500 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.11 A @ 120 Hz | 1.2765 A @ 10 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
ESL108M035AK5AACAP ALUM 1000UF 20% 35V RADIAL |
3,067 | 1.13 |
RFQ |
Datasheet |
Box | ESL | Active | 1000 µF | ±20% | 35 V | 24mOhm @ 100kHz | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.245 A @ 120 Hz | 2.49 A @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.866 (22.00mm) | - | Through Hole |
|
EDH477M035S9RAACAP ALUM 470UF 20% 35V SMD |
2,103 | 2.14 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | EDH | Active | 470 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 520 mA @ 120 Hz | 650 mA @ 10 kHz | - | - | 0.492 Dia (12.50mm) | 0.551 (14.00mm) | 0.504 L x 0.504 W (12.80mm x 12.80mm) | Surface Mount |
.jpg)
|
ESG157M500AQ5AACAP ALUM 150UF 20% 500V RADIAL |
3,999 | 7.80 |
RFQ |
Datasheet |
Bulk | ESG | Active | 150 µF | ±20% | 500 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.02 A @ 120 Hz | 1.53 A @ 100 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.850 (47.00mm) | - | Through Hole |
|

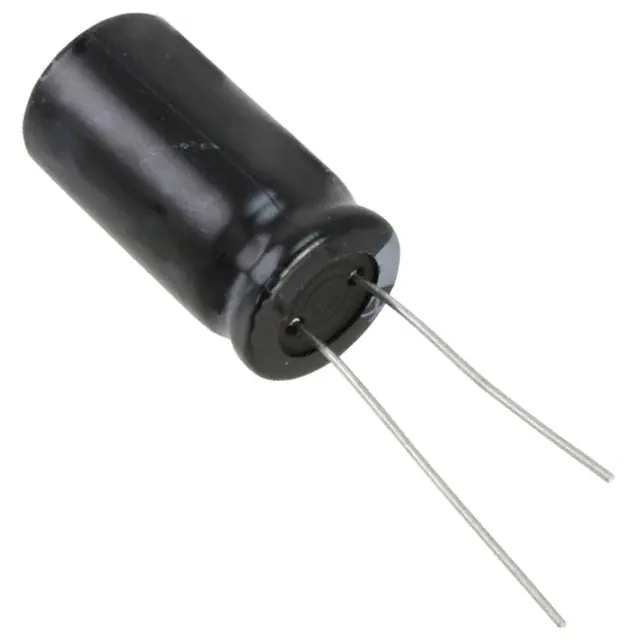

ESH108M050AL4AACAP ALUM 1000UF 20% 50V RADIAL |
5,657 | 1.42 |
RFQ |
Datasheet |
Bulk | ESH | Active | 1000 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.06 A @ 120 Hz | 1.219 A @ 10 kHz | - | 0.197 (5.00mm) | 0.512 Dia (13.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
ESX228M025AK4AACAP ALUM 2200UF 20% 25V RADIAL |
3,016 | 1.43 |
RFQ |
Box | ESX | Active | 2200 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.124 A @ 120 Hz | 2.36 A @ 100 kHz | 54 mOhms | 0.197 (5.00mm) | 0.472 Dia (12.00mm) | 1.575 (40.00mm) | - | Through Hole | |
|
ESW108M035AL4ARCAP ALUM 1000UF 20% 35V RADIAL |
2,062 | 1.51 |
RFQ |
Datasheet |
Bulk | ESW | Active | 1000 µF | ±20% | 35 V | 30mOhm @ 100kHz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.338 A @ 120 Hz | 2.23 A @ 100 kHz | 30 mOhms | 0.197 (5.00mm) | 0.512 Dia (13.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
ALA7DA681EF500CAP ALUM 680UF 20% 500V SNAP |
3,600 | 16.77 |
RFQ |
Datasheet |
Bulk | ALA7D | Active | 680 µF | ±20% | 500 V | 354mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 3.3 A @ 100 Hz | 6 A @ 10 kHz | 265 mOhms | 0.394 (10.00mm) | 1.575 Dia (40.00mm) | 2.047 (52.00mm) | - | Through Hole |
|
ALS70A682DE100CAP ALUM 6800UF 20% 100V SCREW |
3,325 | 18.00 |
RFQ |
Datasheet |
Bulk | ALS70 | Active | 6800 µF | ±20% | 100 V | 50mOhm @ 100Hz | 11000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 9.9 A @ 100 Hz | 13.2 A @ 10 kHz | 41 mOhms | 0.504 (12.80mm) | 1.417 Dia (36.00mm) | 3.307 (84.00mm) | - | Chassis Mount |
|
|
ALS70A163DE063CAP ALUM 16000UF 20% 63V SCREW |
3,750 | 18.12 |
RFQ |
Datasheet |
Bulk | ALS70 | Active | 16000 µF | ±20% | 63 V | 31mOhm @ 100Hz | 11000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 11.4 A @ 100 Hz | 14.9 A @ 10 kHz | 24 mOhms | 0.504 (12.80mm) | 1.417 Dia (36.00mm) | 3.307 (84.00mm) | - | Chassis Mount |
|
ALS80A153DE063CAP ALUM 15000UF 20% 63V SCREW |
2,792 | 18.49 |
RFQ |
Datasheet |
Bulk | ALS80 | Active | 15000 µF | ±20% | 63 V | 30mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 10 A @ 100 Hz | 13.7 A @ 10 kHz | 24 mOhms | 0.504 (12.80mm) | 1.417 Dia (36.00mm) | 3.307 (84.00mm) | - | Chassis Mount |
|
ESW108M050AM7AACAP ALUM 1000UF 20% 50V RADIAL |
3,755 | 2.56 |
RFQ |
Datasheet |
Bulk | ESW | Active | 1000 µF | ±20% | 50 V | 35mOhm @ 100kHz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.533 A @ 120 Hz | 2.555 A @ 100 kHz | 34 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|

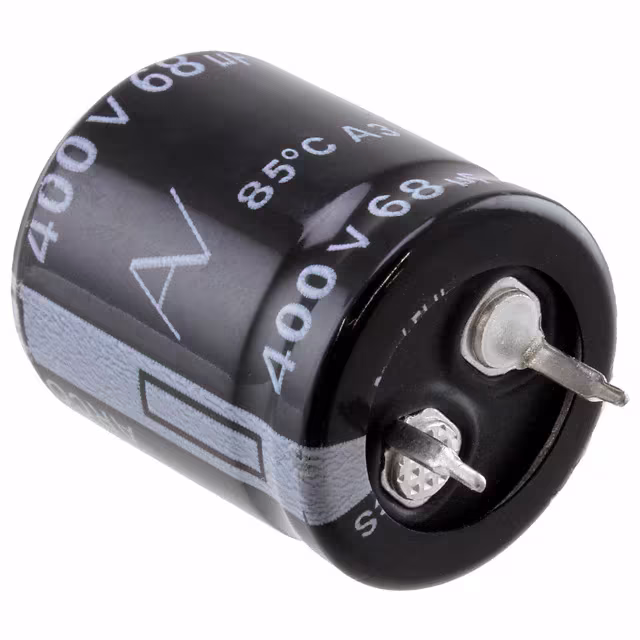

ELG686M400AQ1AACAP ALUM 68UF 20% 400V SNAP |
3,449 | 3.09 |
RFQ |
Datasheet |
Bulk | ELG | Active | 68 µF | ±20% | 400 V | 852mOhm @ 20kHz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 500 mA @ 120 Hz | 725 mA @ 10 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
ALF70C562DF100CAP ALUM 5600UF 20% 100V SNAP |
3,064 | 10.97 |
RFQ |
Datasheet |
Bulk | ALF70 | Active | 5600 µF | ±20% | 100 V | 51mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.77 A @ 100 Hz | 8.76 A @ 10 kHz | 41 mOhms | 0.886 (22.50mm) | 1.378 Dia (35.00mm) | 2.047 (52.00mm) | - | Through Hole, Press-Fit |
|
|
ALF70C681DF400CAP ALUM 680UF 20% 400V SNAP |
2,083 | 11.07 |
RFQ |
Datasheet |
Bulk | ALF70 | Active | 680 µF | ±20% | 400 V | 205mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.99 A @ 100 Hz | 6.92 A @ 10 kHz | 109 mOhms | 0.886 (22.50mm) | 1.378 Dia (35.00mm) | 2.047 (52.00mm) | - | Through Hole, Press-Fit |
|
|
ALS70A122DF450CAP ALUM 1200UF 20% 450V SCREW |
3,012 | 22.78 |
RFQ |
Datasheet |
Bulk | ALS70 | Active | 1200 µF | ±20% | 450 V | 146mOhm @ 100Hz | 11000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.3 A @ 100 Hz | 10.6 A @ 10 kHz | 93 mOhms | 0.504 (12.80mm) | 1.417 Dia (36.00mm) | 4.213 (107.00mm) | - | Chassis Mount |
|
ALF20C102EL400CAP ALUM 1000UF 20% 400V SNAP |
2,884 | 22.74 |
RFQ |
Datasheet |
Bulk | ALF20 | Active | 1000 µF | ±20% | 400 V | 120mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5 A @ 100 Hz | 8.82 A @ 10 kHz | - | 0.886 (22.50mm) | 1.575 Dia (40.00mm) | 3.228 (82.00mm) | - | Through Hole, Press-Fit |
|
ELH477M200AQ3AVCAP ALUM 470UF 20% 200V SNAP |
3,096 | 2.91 |
RFQ |
Datasheet |
Box | ELH | Active | 470 µF | ±20% | 200 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.8 A @ 120 Hz | 2.7 A @ 10 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
|
ALS70A513KF063CAP ALUM 51000UF 20% 63V SCREW |
3,927 | 35.94 |
RFQ |
Datasheet |
Bulk | ALS70 | Active | 51000 µF | ±20% | 63 V | 14mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 19.1 A @ 100 Hz | 21.5 A @ 10 kHz | 13 mOhms | 0.874 (22.20mm) | 2.008 Dia (51.00mm) | 4.213 (107.00mm) | - | Chassis Mount |
