| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ESK105M350AE3AACAP ALUM 1UF 20% 350V RADIAL |
2,997 | 0.36 |
RFQ |
Datasheet |
Box | ESK | Active | 1 µF | ±20% | 350 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 19 mA @ 120 Hz | 26.6 mA @ 10 kHz | - | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.492 (12.50mm) | - | Through Hole |
|
ESH337M016AG3AACAP ALUM 330UF 20% 16V RADIAL |
3,531 | 0.38 |
RFQ |
Datasheet |
Bulk | ESH | Active | 330 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 280 mA @ 120 Hz | 420 mA @ 10 kHz | - | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
EDT687M010S9PAACAP ALUM 680UF 20% 10V SMD |
2,809 | 0.94 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | EDT | Active | 680 µF | ±20% | 10 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 180 mA @ 120 Hz | 257.143 mA @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
EXV227M025A9MAACAP ALUM 220UF 20% 25V SMD |
2,745 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | EXV | Active | 220 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 420 mA @ 120 Hz | 600 mA @ 100 kHz | 160 mOhms | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.327 L x 0.394 W (8.30mm x 10.00mm) | Surface Mount |
|

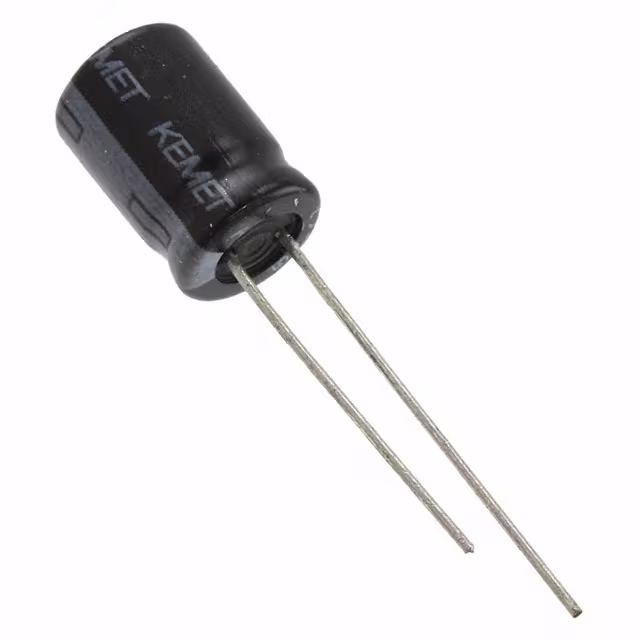

ESH225M400AG3AACAP ALUM 2.2UF 20% 400V RADIAL |
3,742 | 0.45 |
RFQ |
Bulk | ESH | Active | 2.2 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 31 mA @ 120 Hz | 49.6 mA @ 10 kHz | - | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.492 (12.50mm) | - | Through Hole | |
|
ESC477M016AH1AACAP ALUM 470UF 20% 16V RADIAL |
2,843 | 0.54 |
RFQ |
Datasheet |
Bulk | ESC | Active | 470 µF | ±20% | 16 V | 85mOhm @ 100kHz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 720 mA @ 120 Hz | 800 mA @ 100 kHz | 85 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.531 (13.50mm) | - | Through Hole |
|

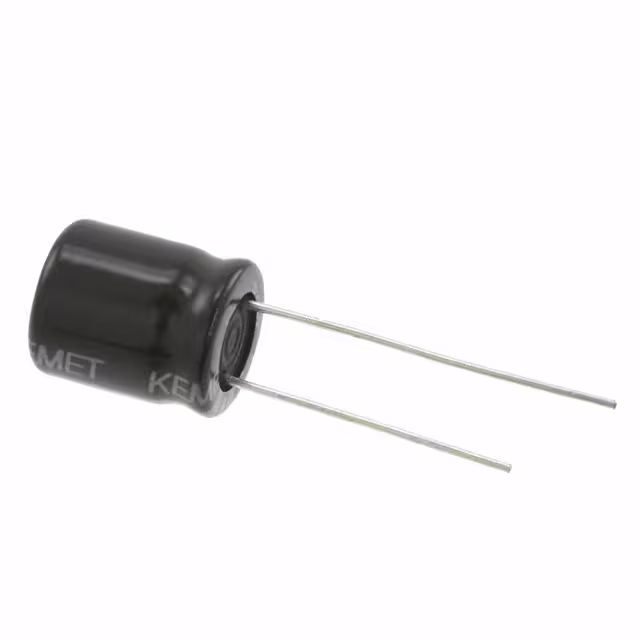

ESH107M063AH1AACAP ALUM 100UF 20% 63V RADIAL |
3,526 | 0.51 |
RFQ |
Datasheet |
Bulk | ESH | Active | 100 µF | ±20% | 63 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 260 mA @ 120 Hz | 390 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.531 (13.50mm) | - | Through Hole |
|
|
EXV108M6R3A9PAACAP ALUM 1000UF 20% 6.3V SMD |
3,843 | 1.22 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | EXV | Active | 1000 µF | ±20% | 6.3 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 595 mA @ 120 Hz | 850 mA @ 100 kHz | 120 mOhms | - | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|

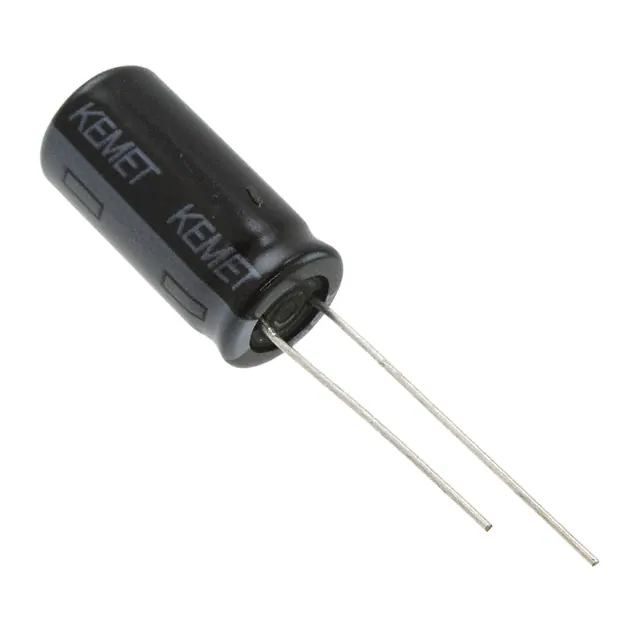

ESH227M050AH2AACAP ALUM 220UF 20% 50V RADIAL |
6,006 | 0.65 |
RFQ |
Datasheet |
Bulk | ESH | Active | 220 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 415 mA @ 120 Hz | 622.5 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.669 (17.00mm) | - | Through Hole |
|
ESK337M050AH4AACAP ALUM 330UF 20% 50V RADIAL |
3,243 | 0.69 |
RFQ |
Datasheet |
Bulk | ESK | Active | 330 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.827 (21.00mm) | - | Through Hole |
|
|
EXV337M050S9RAACAP ALUM 330UF 20% 50V SMD |
2,325 | 2.97 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | EXV | Active | 330 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 700 mA @ 120 Hz | - | - | - | 0.492 Dia (12.50mm) | 0.571 (14.50mm) | 0.512 L x 0.512 W (13.00mm x 13.00mm) | Surface Mount |
|
ESH337M050AH4AACAP ALUM 330UF 20% 50V RADIAL |
1,400 | 0.74 |
RFQ |
Datasheet |
Bulk | ESH | Active | 330 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 535 mA @ 120 Hz | 802.5 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.827 (21.00mm) | - | Through Hole |
|
ESW397M035AH4AACAP ALUM 390UF 20% 35V RADIAL |
3,480 | 0.82 |
RFQ |
Datasheet |
Bulk | ESW | Active | 390 µF | ±20% | 35 V | 52mOhm @ 100kHz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 611 mA @ 120 Hz | 1.22 A @ 100 kHz | 52 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.827 (21.00mm) | - | Through Hole |
|
ESY687M016AG6AACAP ALUM 680UF 20% 16V RADIAL |
2,719 | 0.85 |
RFQ |
Datasheet |
Bulk | ESY | Active | 680 µF | ±20% | 16 V | 41mOhm @ 100kHz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 937.5 mA @ 120 Hz | 1.25 A @ 100 kHz | 41 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
|
ESK107M100AH4AACAP ALUM 100UF 20% 100V RADIAL |
3,347 | 0.86 |
RFQ |
Datasheet |
Box | ESK | Active | 100 µF | ±20% | 100 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 400 mA @ 120 Hz | 480 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.866 (22.00mm) | - | Through Hole |
|

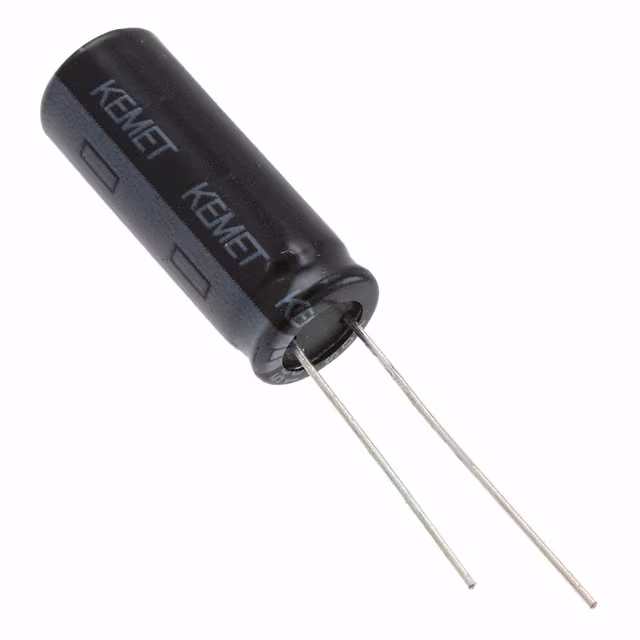

ESY158M010AH5AACAP ALUM 1500UF 20% 10V RADIAL |
3,355 | 0.98 |
RFQ |
Datasheet |
Bulk | ESY | Active | 1500 µF | ±20% | 10 V | 23mOhm @ 100kHz | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.72 A @ 120 Hz | 2.15 A @ 100 kHz | 23 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
ESC158M035AM7AACAP ALUM 1500UF 20% 35V RADIAL |
2,748 | 1.09 |
RFQ |
Datasheet |
Box | ESC | Active | 1500 µF | ±20% | 35 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.785 A @ 120 Hz | 2.1 A @ 100 kHz | 24 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
ESH478M016AM7AACAP ALUM 4700UF 20% 16V RADIAL |
1,998 | 1.27 |
RFQ |
Datasheet |
Box | ESH | Active | 4700 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.65 A @ 120 Hz | 1.898 A @ 10 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
EDH228M025A9TAACAP ALUM 2200UF 20% 25V SMD |
2,641 | 2.95 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | EDH | Active | 2200 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 900 mA @ 120 Hz | 1.125 A @ 10 kHz | - | - | 0.630 Dia (16.00mm) | 0.689 (17.50mm) | 0.642 L x 0.642 W (16.30mm x 16.30mm) | Surface Mount |
|
|
EDH108M050A9TAACAP ALUM 1000UF 20% 50V SMD |
2,337 | 3.74 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | EDH | Active | 1000 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 800 mA @ 120 Hz | 1 A @ 10 kHz | - | - | 0.630 Dia (16.00mm) | 0.689 (17.50mm) | 0.642 L x 0.642 W (16.30mm x 16.30mm) | Surface Mount |
