| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ALS80A162KF500CAP ALUM 1600UF 20% 500V SCREW |
2,505 | 42.37 |
RFQ |
Datasheet |
Bulk | ALS80 | Active | 1600 µF | ±20% | 500 V | 142mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 6.8 A @ 100 Hz | 12.8 A @ 10 kHz | 106 mOhms | 0.874 (22.20mm) | 2.008 Dia (51.00mm) | 4.213 (107.00mm) | - | Chassis Mount |
|

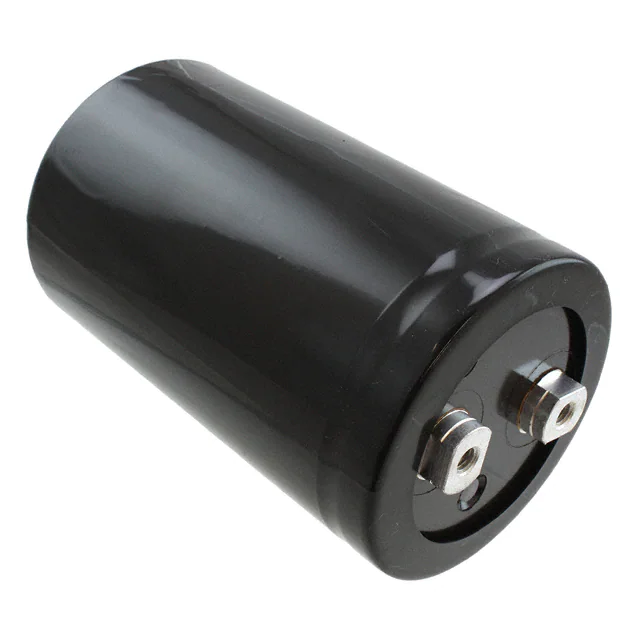

ALS40A333MF063CAP ALUM 33000UF 20% 63V SCREW |
2,113 | 46.22 |
RFQ |
Datasheet |
Bulk | ALS40 | Active | 33000 µF | ±20% | 63 V | 8mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 21.3 A @ 100 Hz | 22.2 A @ 10 kHz | 7 mOhms | 1.122 (28.50mm) | 2.598 Dia (66.00mm) | 4.213 (107.00mm) | - | Chassis Mount |
|
ALS70A912MF250CAP ALUM 9100UF 20% 250V SCREW |
3,700 | 54.31 |
RFQ |
Datasheet |
Bulk | ALS70 | Active | 9100 µF | ±20% | 250 V | 31mOhm @ 100Hz | 19000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 15.8 A @ 100 Hz | 22.7 A @ 10 kHz | 22 mOhms | 1.122 (28.50mm) | 2.598 Dia (66.00mm) | 4.213 (107.00mm) | - | Chassis Mount |
|
|
ALS80A113NF250CAP ALUM 11000UF 20% 250V SCREW |
3,380 | 64.46 |
RFQ |
Datasheet |
Bulk | ALS80 | Active | 11000 µF | ±20% | 250 V | 27mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 15.1 A @ 100 Hz | 19.9 A @ 10 kHz | 19 mOhms | 1.252 (31.80mm) | 3.031 Dia (77.00mm) | 4.213 (107.00mm) | - | Chassis Mount |
|
|
ALS80A124NF063CAP ALUM 120000UF 20% 63V SCREW |
3,178 | 68.88 |
RFQ |
Datasheet |
Bulk | ALS80 | Active | 120000 µF | ±20% | 63 V | 9mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 23.2 A @ 100 Hz | 24.6 A @ 10 kHz | 10 mOhms | 1.252 (31.80mm) | 3.031 Dia (77.00mm) | 4.213 (107.00mm) | - | Chassis Mount |
|
|
ALS70A752NJ400CAP ALUM 7500UF 20% 400V SCREW |
3,394 | 73.27 |
RFQ |
Datasheet |
Bulk | ALS70 | Active | 7500 µF | ±20% | 400 V | 29mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 16.7 A @ 100 Hz | 23.7 A @ 10 kHz | 19 mOhms | 1.252 (31.80mm) | 3.031 Dia (77.00mm) | 4.606 (117.00mm) | - | Chassis Mount |
|
ELG108M200AT2AACAP ALUM 1000UF 20% 200V SNAP |
2,097 | 6.01 |
RFQ |
Datasheet |
Box | ELG | Active | 1000 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.3 A @ 120 Hz | 3.45 A @ 10 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
|
ALS70A752NP450CAP ALUM 7500UF 20% 450V SCREW |
2,369 | 84.97 |
RFQ |
Datasheet |
Bulk | ALS70 | Active | 7500 µF | ±20% | 450 V | 31mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 17.9 A @ 100 Hz | 25.3 A @ 10 kHz | 21 mOhms | 1.252 (31.80mm) | 3.031 Dia (77.00mm) | 5.827 (148.00mm) | - | Chassis Mount |
|
PEH200PO5220MU2CAP ALUM 22000UF 20% 100V SCREW |
2,416 | 99.38 |
RFQ |
Datasheet |
Bulk | PEH200 | Active | 22000 µF | ±20% | 100 V | 15mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 19.3 A @ 100 Hz | - | 18 mOhms | 1.122 (28.50mm) | 2.622 Dia (66.60mm) | 4.213 (107.00mm) | - | Chassis Mount |
|
|
ALS70A134QS100CAP ALUM 130000UF 20% 100V SCREW |
2,737 | 113.75 |
RFQ |
Datasheet |
Bulk | ALS70 | Active | 130000 µF | ±20% | 100 V | 6mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 40 A @ 100 Hz | 42.2 A @ 10 kHz | 8 mOhms | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 7.717 (196.00mm) | - | Chassis Mount |
|
040MS22AAMK1STDCAP ALUM 40UF 10% 220V QC TERM |
2,325 | 6.30 |
RFQ |
Datasheet |
Box | MS | Active | 40 µF | ±10% | 220 V | - | 500 Hrs @ 60°C | -20°C ~ 60°C | - | - | Motor Start | - | - | - | - | 1.535 Dia (39.00mm) | 2.953 (75.00mm) | - | Chassis Mount |
|
ALC80A103BB025CAP ALUM 10000UF 20% 25V SNAP |
3,862 | 7.12 |
RFQ |
Datasheet |
Bulk | ALC80 | Active | 10000 µF | ±20% | 25 V | 120mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.66 A @ 100 Hz | 4.54 A @ 10 kHz | 335 mOhms | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
|
ALC80A392BD063CAP ALUM 3900UF 20% 63V SNAP |
3,205 | 7.74 |
RFQ |
Datasheet |
Bulk | ALC80 | Active | 3900 µF | ±20% | 63 V | 96mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.76 A @ 100 Hz | 5.39 A @ 10 kHz | 72 mOhms | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
ALA8DA271CC400CAP ALUM 270UF 20% 400V SNAP |
3,250 | 9.27 |
RFQ |
Datasheet |
Bulk | ALA8D | Active | 270 µF | ±20% | 400 V | 558.2mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.71 A @ 100 Hz | 3.96 A @ 10 kHz | 296.2 mOhms | - | 1.181 Dia (30.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
|
ALC80A221CD450CAP ALUM 220UF 20% 450V SNAP |
2,716 | 10.45 |
RFQ |
Datasheet |
Bulk | ALC80 | Active | 220 µF | ±20% | 450 V | 585mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.64 A @ 100 Hz | 4.9 A @ 10 kHz | 335 mOhms | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
|
ALC80A122DD200CAP ALUM 1200UF 20% 200V SNAP |
2,988 | 10.46 |
RFQ |
Datasheet |
Bulk | ALC80 | Active | 1200 µF | ±20% | 200 V | 182mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.27 A @ 100 Hz | 6.61 A @ 10 kHz | 111 mOhms | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
|
ALA8DA391DC400CAP ALUM 390UF 20% 400V SNAP |
3,368 | 10.91 |
RFQ |
Datasheet |
Bulk | ALA8D | Active | 390 µF | ±20% | 400 V | 394mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2.5 A @ 100 Hz | 5.18 A @ 10 kHz | 196.8 mOhms | - | 1.378 Dia (35.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
ALC40A331CF400CAP ALUM 330UF 20% 400V SNAP |
3,486 | 12.23 |
RFQ |
Datasheet |
Bulk | ALC40 | Active | 330 µF | ±20% | 400 V | 383mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.98 A @ 100 Hz | 4.02 A @ 10 kHz | 258 mOhms | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 2.047 (52.00mm) | - | Through Hole |
|

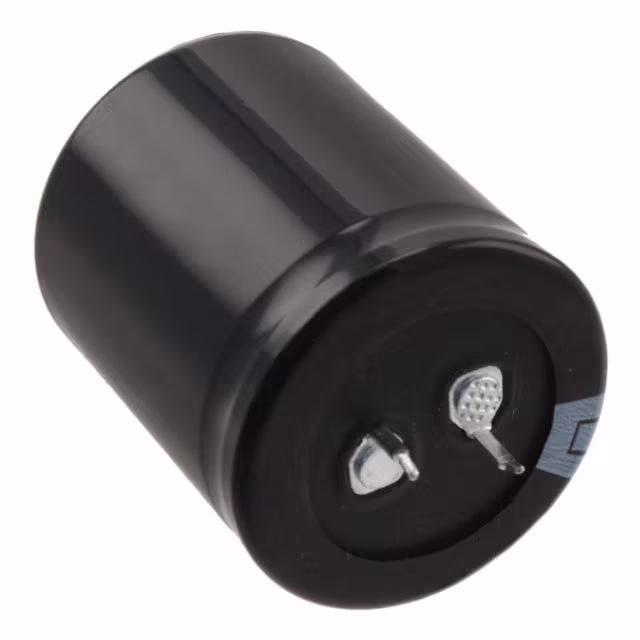

ELH687M450AT6AACAP ALUM 680UF 20% 450V SNAP |
2,989 | 12.30 |
RFQ |
Datasheet |
Bulk | ELH | Active | 680 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 2.047 (52.00mm) | - | Through Hole |
|
ALC70A181DD630CAP ALUM 180UF 20% 630V SNAP |
3,470 | 12.41 |
RFQ |
Datasheet |
Bulk | ALC70 | Active | 180 µF | ±20% | 630 V | 727mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.79 A @ 100 Hz | 3.89 A @ 10 kHz | 501 mOhms | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.654 (42.00mm) | - | Through Hole |
