| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | UnidirectionalChannels | BidirectionalChannels | Voltage-ReverseStandoff(Typ) | Voltage-Breakdown(Min) | Voltage-Clamping(Max)@Ipp | Current-PeakPulse(10/1000µs) | Power-PeakPulse | PowerLineProtection | Applications | Capacitance@Frequency | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

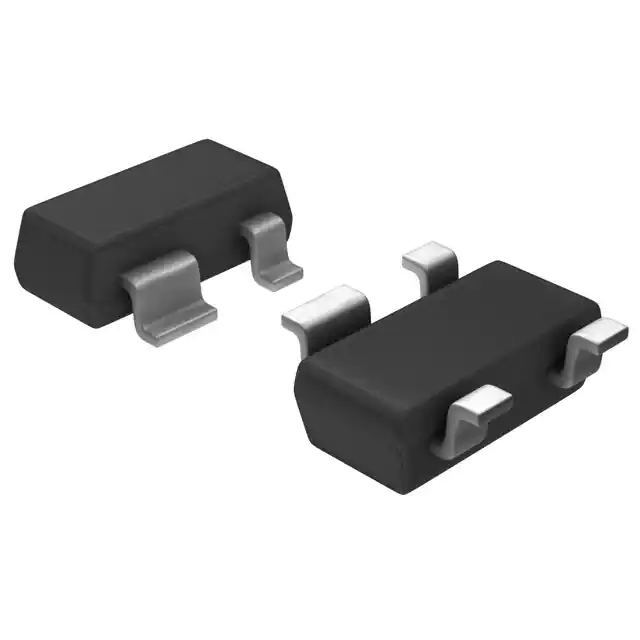

PESD2ETH-AXRTVS DIODE 5.5VWM SOT143B |
5,435 | 0.51 |
RFQ |
Datasheet |
TO-253-4, TO-253AA | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Steering (Rail to Rail) | 2 | - | 5.5V (Max) | 6V | - | - | - | Yes | Automotive, Ethernet | 16pF @ 1MHz | -40°C ~ 125°C (TA) | Surface Mount |
|
PRTR5V0U2AX,235TVS DIODE 5.5VWM SOT143B |
39,258 | 0.68 |
RFQ |
Datasheet |
TO-253-4, TO-253AA | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Steering (Rail to Rail) | 2 | - | 5.5V (Max) | 6V | - | - | - | Yes | Automotive | 1.8pF @ 1MHz | -40°C ~ 125°C (TA) | Surface Mount |
|
|
PRTR5V0U2AX,215TVS DIODE 5.5VWM SOT143B |
29,308 | 0.68 |
RFQ |
Datasheet |
TO-253-4, TO-253AA | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Steering (Rail to Rail) | 2 | - | 5.5V (Max) | 6V | - | - | - | Yes | Automotive | 1.8pF @ 1MHz | -40°C ~ 85°C (TA) | Surface Mount |
.jpg)
|
PUSB3AB2DFZTVS DIODE 4VWM 3.7VC DFN0603-3 |
28,269 | 0.38 |
RFQ |
Datasheet |
0201 (0603 Metric) | Tape & Reel (TR),Cut Tape (CT) | TrEOS | Active | Zener | - | 2 | 4V (Max) | 6.6V (Typ) | 3.7V (Typ) | 4A (8/20µs) | - | No | General Purpose | 0.26pF @ 1MHz | -40°C ~ 125°C (TA) | Surface Mount |
|
PESD3V3Z1BCSFYLTVS DIODE 3.3VWM 4.8VC DSN0603-2 |
17,216 | 0.35 |
RFQ |
Datasheet |
0201 (0603 Metric) | Tape & Reel (TR),Cut Tape (CT) | TrEOS | Active | Zener | - | 1 | 3.3V (Max) | 6.8V (Typ) | 4.8V (Typ) | 15A (8/20µs) | - | No | General Purpose | 0.45pF @ 1MHz | -40°C ~ 125°C (TA) | Surface Mount |
|
PESD3V3U1UL,315TVS DIODE 3.3VWM DFN1006-2 |
101,660 | 0.45 |
RFQ |
Datasheet |
SOD-882 | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | 1 | - | 3.3V (Max) | 4.5V | - | - | - | No | Automotive | 2.6pF @ 1MHz | -55°C ~ 150°C (TA) | Surface Mount |
|
PESD5V0X1UALD,315TVS DIODE 5VWM 9VC DFN1006D-2 |
12,200 | 0.45 |
RFQ |
Datasheet |
2-XDFN | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | 1 | - | 5V (Max) | 5.8V | 9V | 2A (8/20µs) | - | No | Automotive | 1.55pF @ 1MHz | -55°C ~ 150°C (TA) | Surface Mount |
|
PTVS26VZ1USKYLTVS DIODE 26VWM 46VC DSN1608-2 |
15,014 | 0.48 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 1 | - | 26V (Max) | 28.9V | 46V | 4.5A | 200W | No | General Purpose | 215pF @ 1MHz | -40°C ~ 125°C (TA) | Surface Mount |
|
|
PTVS20VZ1USKYLTVS DIODE 20VWM 36.9VC DSN1608-2 |
15,630 | 0.48 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 1 | - | 20V (Max) | 22.2V | 36.9V | 6A | 220W | No | General Purpose | 260pF @ 1MHz | -40°C ~ 125°C (TA) | Surface Mount |
|
PTVS3V3Z1BSCYLTVS DIODE 3.3VWM 13VC DSN1006-2 |
16,675 | 0.48 |
RFQ |
Datasheet |
2-XDFN | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | - | 1 | 3.3V (Max) | 3.8V | 13V | 70A (8/20µs) | - | No | Telecom | 180pF @ 1MHz | -55°C ~ 150°C (TA) | Surface Mount |
|
PESD5V0L2UMB,315TVS DIODE 5VWM 15VC DFN1006B-3 |
11,128 | 0.48 |
RFQ |
Datasheet |
3-XFDFN | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | 2 | - | 5V (Max) | 6.46V | 15V | 2.5A (8/20µs) | - | No | Automotive | 16pF @ 1MHz | -55°C ~ 150°C (TA) | Surface Mount |
|
PESD5V0L4UF,115TVS DIODE 5VWM 13VC 6XSON |
43,100 | 0.49 |
RFQ |
Datasheet |
6-XFDFN | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 4 | - | 5V (Max) | 6.46V | 13V | 2.5A (8/20µs) | 30W | No | General Purpose | 16pF @ 1MHz | -65°C ~ 150°C (TA) | Surface Mount |
|
PESD24VS2UAT,215TVS DIODE 24VWM 70VC TO236AB |
6,000 | 0.41 |
RFQ |
Datasheet |
TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 2 | - | 24V (Max) | 26.5V | 70V | 3A (8/20µs) | 160W | No | General Purpose | 23pF @ 1MHz | -65°C ~ 150°C (TA) | Surface Mount |
.jpg)
|
BZA856A,115TVS DIODE 5.6VWM 5TSSOP |
4,280 | 0.42 |
RFQ |
Datasheet |
5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 4 | - | 5.6V | - | - | - | 24W | No | General Purpose | 240pF @ 1MHz | - | Surface Mount |
|

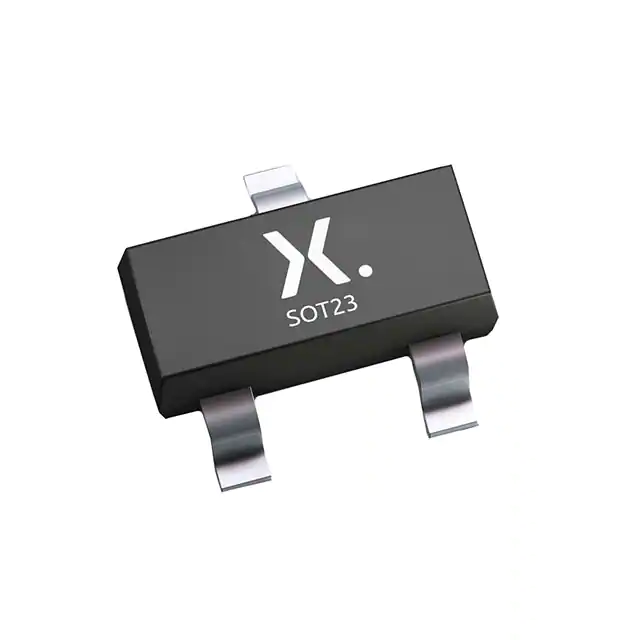

PESD2USB3UV-TRTVS DIODE 3.3VWM TO236AB |
11,767 | 0.50 |
RFQ |
Datasheet |
TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 2 | - | 3.3V | - | - | 8A (8/20µs) | - | No | Automotive, HDMI, USB | - | - | Surface Mount |
|
|
PESD5V0S4UF,115TVS DIODE 5VWM 12VC 6XSON |
9,930 | 0.39 |
RFQ |
Datasheet |
6-XFDFN | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | 4 | - | 5V (Max) | 6.46V | 12V | 10A (8/20µs) | 110W | No | Automotive | 85pF @ 1MHz | -55°C ~ 150°C (TA) | Surface Mount |
|
PTVS64VS1UR,115TVS DIODE 64VWM 103VC SOD123W |
29,470 | 0.41 |
RFQ |
Datasheet |
SOD-123W | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | 1 | - | 64V | 71.1V | 103V | 3.9A | 400W | No | Automotive | - | -55°C ~ 150°C (TA) | Surface Mount |
|
|
PTVS11VS1UTR,115TVS DIODE 11VWM 18.2VC SOD123W |
3,462 | 0.43 |
RFQ |
Datasheet |
SOD-123W | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | 1 | - | 11V | 12.2V | 18.2V | 22A | 400W | No | Automotive | - | -55°C ~ 185°C (TA) | Surface Mount |
|
PTVS26VU1UPAZTVS DIODE 26VWM 42.1VC 3HUSON |
52,441 | 0.47 |
RFQ |
Datasheet |
3-PowerUDFN | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | 1 | - | 26V (Max) | 28.9V | 42.1V | 7A | 300W | No | Automotive | - | -55°C ~ 150°C (TA) | Surface Mount |
|
|
PTVS18VU1UPAZTVS DIODE 18VWM 29.2VC 3HUSON |
5,594 | 0.47 |
RFQ |
Datasheet |
3-PowerUDFN | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | 1 | - | 18V (Max) | 20V | 29.2V | 10.3A | 300W | No | Automotive | - | -55°C ~ 150°C (TA) | Surface Mount |
