| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | UnidirectionalChannels | BidirectionalChannels | Voltage-ReverseStandoff(Typ) | Voltage-Breakdown(Min) | Voltage-Clamping(Max)@Ipp | Current-PeakPulse(10/1000µs) | Power-PeakPulse | PowerLineProtection | Applications | Capacitance@Frequency | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PESD12VA-SFYLTVS DIODE 12VWM 30VC DSN0603-2 |
85,577 | 0.45 |
RFQ |
Datasheet |
0201 (0603 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | - | 1 | 12V (Max) | 14V | 30V | 6.1A (8/20µs) | - | No | General Purpose | 17pF @ 1MHz | -55°C ~ 150°C (TA) | Surface Mount |
|
PESD27VV1BAXTVS DIODE 27VWM 45VC SOD323 |
7,715 | 0.42 |
RFQ |
Datasheet |
SC-76, SOD-323 | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | - | 1 | 27V (Max) | 28V | 45V | 3A (8/20µs) | - | No | Automotive, Telecom | 14pF @ 1MHz | -55°C ~ 150°C (TA) | Surface Mount |
|
|
BZB100A,115TVS DIODE 100VWM SOD323 |
34,191 | 0.43 |
RFQ |
Datasheet |
SC-76, SOD-323 | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | - | 1 | 100V | - | - | - | 75W | No | Automotive | 10pF @ 1MHz | -55°C ~ 150°C (TA) | Surface Mount |
|
PESD27VV2BTRTVS DIODE 27VWM 45VC TO236AB |
11,797 | 0.44 |
RFQ |
Datasheet |
TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | - | 2 | 27V (Max) | 28V | 45V | 3A (8/20µs) | - | No | Automotive, Telecom | 13pF @ 1MHz | -55°C ~ 150°C (TA) | Surface Mount |
|
PESD3V3L4UF,115TVS DIODE 3.3VWM 12VC 6XSON |
27,727 | 0.49 |
RFQ |
Datasheet |
6-XFDFN | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 4 | - | 3.3V (Max) | 5.32V | 12V | 3A (8/20µs) | 30W | No | General Purpose | 22pF @ 1MHz | -65°C ~ 150°C (TA) | Surface Mount |
|
|
PESD3V3Y1BSFYLTVS DIODE 3.3VWM 3.7VC DSN0603-2 |
48,346 | 0.41 |
RFQ |
Datasheet |
0201 (0603 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | - | 1 | 3.3V (Max) | 4.2V | 3.7V (Typ) | - | - | No | HDMI2, USB 3.2 | 0.29pF @ 1MHz | -40°C ~ 125°C (TA) | Surface Mount |
|
|
PESD4V0Y1BSFYLTVS DIODE 4VWM 3.7VC DSN0603-2 |
18,589 | 0.41 |
RFQ |
Datasheet |
0201 (0603 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | - | 1 | 4V (Max) | 4.2V | 3.7V (Typ) | - | - | No | HDMI, USB | 0.29pF @ 1MHz | -40°C ~ 125°C (TA) | Surface Mount |
|
|
PESD5V0S2UAT,215TVS DIODE 5VWM 20VC TO236AB |
17,913 | 0.40 |
RFQ |
Datasheet |
TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 2 | - | 5V (Max) | 6.4V | 20V | 15A (8/20µs) | 260W | No | General Purpose | 152pF @ 1MHz | -65°C ~ 150°C (TA) | Surface Mount |
|
|
PESD12VS1UA,115TVS DIODE 12VWM 27VC SOD323 |
11,821 | 0.48 |
RFQ |
Datasheet |
SC-76, SOD-323 | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | 1 | - | 12V (Max) | 13.3V | 27V | 22.5A (8/20µs) | 600W | No | Automotive | 160pF @ 1MHz | -55°C ~ 150°C (TA) | Surface Mount |
|
|
PESD24VS1UA,115TVS DIODE 24VWM 70VC SOD323 |
5,259 | 0.40 |
RFQ |
Datasheet |
SC-76, SOD-323 | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | 1 | - | 24V (Max) | 26.5V | 70V | 3A (8/20µs) | 160W | No | Automotive | 23pF @ 1MHz | -65°C ~ 150°C (TA) | Surface Mount |
.jpg)
|
PESD5V0L1UB,115TVS DIODE 5VWM 12VC SOD523 |
13,991 | 0.41 |
RFQ |
Datasheet |
SC-79, SOD-523 | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | 1 | - | 5V (Max) | 6.4V | 12V | 3.5A (8/20µs) | 42W | No | Automotive | 25pF @ 1MHz | -55°C ~ 150°C (TA) | Surface Mount |
.jpg)
|
BZA856AVL,115TVS DIODE 5.6VWM 5TSSOP |
7,195 | 0.41 |
RFQ |
Datasheet |
5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 4 | - | 5.6V | - | - | - | 6W | No | General Purpose | 17pF @ 1MHz | 150°C (TJ) | Surface Mount |
|
|
PESD3V3S2UAT,215TVS DIODE 3.3VWM 20VC TO236AB |
5,630 | 0.41 |
RFQ |
Datasheet |
TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 2 | - | 3.3V (Max) | 5.2V | 20V | 18A (8/20µs) | 330W | No | General Purpose | 207pF @ 1MHz | -65°C ~ 150°C (TA) | Surface Mount |
|
PESD2CANFD27L-UXTVS DIODE 27VWM SC70 |
12,345 | 0.49 |
RFQ |
Datasheet |
SC-70, SOT-323 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | - | 2 | 27V | - | - | 4A (8/20µs) | - | No | Automotive, CAN | - | - | Surface Mount |
|
|
PESD2CANFD24V-UXTVS DIODE 24VWM 42VC SOT323 |
3,266 | 0.49 |
RFQ |
Datasheet |
SC-70, SOT-323 | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | - | 2 | 24V (Max) | 25.5V | 42V | 2.6A (8/20µs) | - | No | Automotive, CAN | 5.2pF @ 1MHz | -55°C ~ 175°C (TA) | Surface Mount |
|
|
PESD5V0U1UA,115TVS DIODE 5VWM SOD323 |
190,772 | 0.50 |
RFQ |
Datasheet |
SC-76, SOD-323 | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | 1 | - | 5V (Max) | 5.8V | - | - | - | No | Automotive | 2pF @ 1MHz | -55°C ~ 150°C (TA) | Surface Mount |
|
|
PESD5V0S1UA,115TVS DIODE 5VWM 19VC SOD323 |
78,052 | 0.50 |
RFQ |
Datasheet |
SC-76, SOD-323 | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | 1 | - | 5V (Max) | 6.2V | 19V | 47A (8/20µs) | 890W | No | Automotive | 480pF @ 1MHz | -55°C ~ 150°C (TA) | Surface Mount |
|
|
PESD5V0X1BT,215TVS DIODE 5VWM TO236AB |
61,540 | 0.50 |
RFQ |
Datasheet |
TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | 2 | 1 | 5V (Max) | 5.8V | - | - | - | No | Automotive | 0.9pF @ 1MHz | -55°C ~ 150°C (TA) | Surface Mount |
|
PESD2USB5UX-TRTVS DIODE 5VWM TO236AB |
21,290 | 0.50 |
RFQ |
Datasheet |
TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 2 | - | 5V | - | - | 4A (8/20µs) | - | No | Automotive, HDMI, USB | - | - | Surface Mount |
|

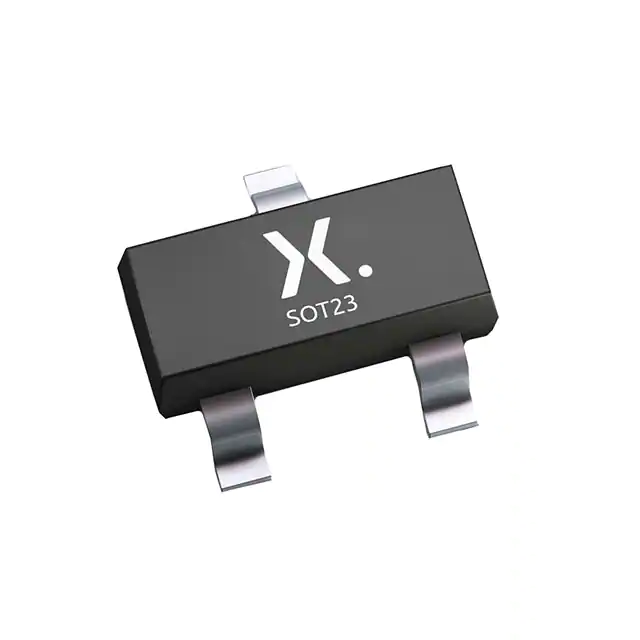

PESD2USB5UV-TRTVS DIODE 5VWM TO236AB |
13,690 | 0.50 |
RFQ |
Datasheet |
TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 2 | - | 5V | - | - | 10A (8/20µs) | - | No | Automotive, HDMI, USB | - | - | Surface Mount |
