| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | UnidirectionalChannels | BidirectionalChannels | Voltage-ReverseStandoff(Typ) | Voltage-Breakdown(Min) | Voltage-Clamping(Max)@Ipp | Current-PeakPulse(10/1000µs) | Power-PeakPulse | PowerLineProtection | Applications | Capacitance@Frequency | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PESD15VS2UT,215TVS DIODE 15VWM 40VC TO236AB |
13,364 | 0.50 |
RFQ |
Datasheet |
TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 2 | - | 15V (Max) | 17.6V | 40V | 5A (8/20µs) | 160W | No | General Purpose | 32pF @ 1MHz | -65°C ~ 150°C (TA) | Surface Mount |
|

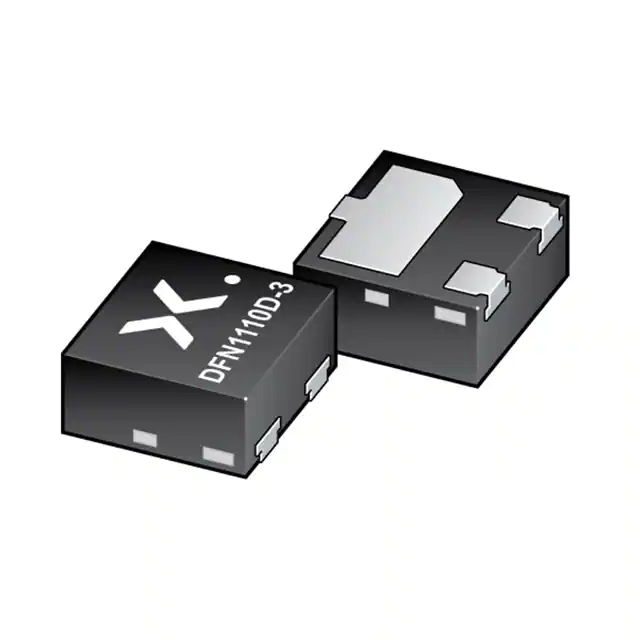

PESD2CANFD24V-QBZTVS DIODE 24VWM 42VC DFN1110D-3 |
9,809 | 0.45 |
RFQ |
Datasheet |
3-XDFN Exposed Pad | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | - | 2 | 24V (Max) | 25.5V | 42V | 2.6A (8/20µs) | - | No | Automotive, CAN | 5.2pF @ 1MHz | -55°C ~ 150°C (TA) | Surface Mount, Wettable Flank |
|
BZA462A,125TVS DIODE 6.2VWM 9VC 6TSOP |
24,400 | 0.43 |
RFQ |
Datasheet |
SC-74, SOT-457 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 4 | - | 6.2V | - | 9V | 2.66A (8/20µs) | 24W | No | General Purpose | 200pF @ 1MHz | -65°C ~ 150°C (TJ) | Surface Mount |
|
PESD5V0L5UY,125TVS DIODE 5VWM 12VC 6TSSOP |
23,330 | 0.43 |
RFQ |
Datasheet |
6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 5 | - | 5V (Max) | 6.4V | 12V | 2.5A (8/20µs) | 25W | No | General Purpose | 16pF @ 1MHz | -65°C ~ 150°C (TA) | Surface Mount |
|
|
PESD5V0L5UY,115TVS DIODE 5VWM 12VC 6TSSOP |
8,770 | 0.43 |
RFQ |
Datasheet |
6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 5 | - | 5V (Max) | 6.4V | 12V | 2.5A (8/20µs) | 25W | No | General Purpose | 16pF @ 1MHz | -65°C ~ 150°C (TA) | Surface Mount |
.jpg)
|
PESD5V0U1BBYLTVS DIODE 5VWM SOD523 |
23,030 | 0.38 |
RFQ |
Datasheet |
SC-79, SOD-523 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | - | 1 | 5V (Max) | 5.5V | - | - | - | No | General Purpose | 2.9pF @ 1MHz | 150°C (TJ) | Surface Mount |
|
PESD5V0F1BLD,315TVS DIODE 5.5VWM 15VC DFN1006D-2 |
134,412 | 0.41 |
RFQ |
Datasheet |
2-XDFN | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | - | 1 | 5.5V (Max) | 6V | 15V | 2.5A (8/20µs) | - | No | Automotive | 0.4pF @ 1MHz | -40°C ~ 125°C (TA) | Surface Mount |
|
PESD3V3L4BHCYLTVS DIODE 3.3VWM 8.5VC DFN1308-6 |
46,908 | 0.41 |
RFQ |
Datasheet |

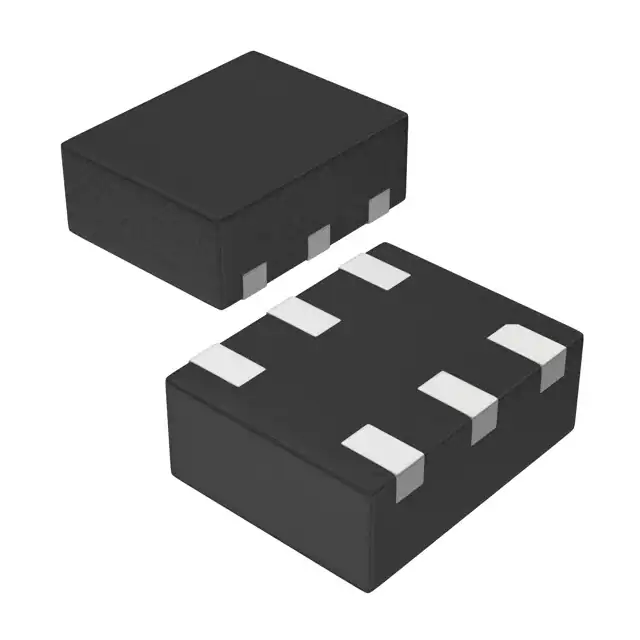

6-XFDFN | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | - | 4 | 3.3V (Max) | 6.7V (Typ) | 8.5V | 6A (8/20µs) | - | No | Telecom | 7.2pF @ 1MHz | -55°C ~ 150°C (TA) | Surface Mount |
|
|
PESD3V3X4UHMYLTVS DIODE 3.3VWM 4.5VC DFN1308-6 |
29,941 | 0.41 |
RFQ |
Datasheet |
6-XFDFN | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 4 | - | 3.3V (Max) | 5V | 4.5V | 11A (8/20µs) | - | No | Telecom | 0.8pF @ 1MHz | -55°C ~ 150°C (TA) | Surface Mount |
|
|
PESD3V3X4UHCYLTVS DIODE 3.3VWM 4.5VC DFN1308-6 |
27,887 | 0.41 |
RFQ |
Datasheet |
6-XFDFN | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 4 | - | 3.3V (Max) | 5V | 4.5V | 11A (8/20µs) | - | No | Telecom | 0.8pF @ 1MHz | -55°C ~ 150°C (TA) | Surface Mount |
|
PESD18VF1BSFYLTVS DIODE 18VWM 16VC DSN0603-2 |
97,140 | 0.39 |
RFQ |
Datasheet |
0201 (0603 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | - | 1 | 18V (Max) | 19V | 16V | 1A (8/20µs) | - | No | General Purpose | 0.28pF @ 1MHz | -40°C ~ 125°C (TA) | Surface Mount |
|
PUSB3FA2ZTVS DIODE 5VC DFN2510A-10 |
10,111 | 0.39 |
RFQ |
Datasheet |
10-XFDFN | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | - | 4 | - | 5.5V | 5V (Typ) | 7A (8/20µs) | - | No | General Purpose | 0.17pF @ 1MHz | -40°C ~ 85°C (TA) | Surface Mount |
|
|
PUSB3F96XTVS DIODE 5.5VWM 4.6VC 10DFN |
7,482 | 0.51 |
RFQ |
Datasheet |
10-XFDFN | Tape & Reel (TR),Cut Tape (CT) | - | Active | Steering (Rail to Rail) | 4 | - | 5.5V (Max) | 6V | 4.6V (Typ) | 5.2A (8/20µs) | - | Yes | HDMI | - | -40°C ~ 85°C (TA) | Surface Mount |
|
|
PESD5V0U1BB,115TVS DIODE 5VWM SOD523 |
98,473 | 0.38 |
RFQ |
Datasheet |
SC-79, SOD-523 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | - | 1 | 5V (Max) | 5.5V | - | - | - | No | General Purpose | 2.9pF @ 1MHz | -65°C ~ 150°C (TA) | Surface Mount |
|
PESD1LINZTVS DIODE 15VWM 24VWM SOD323 |
11,734 | 0.39 |
RFQ |
Datasheet |
SC-76, SOD-323 | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | - | 1 | 15V (Max), 24V (Max) | 17.1V | 44V, 70V | 3A (8/20µs) | 160W | No | Automotive | 13pF @ 1MHz | -65°C ~ 150°C (TA) | Surface Mount |
|
PESD5V0L5UF,115TVS DIODE 5VWM 12VC 6XSON |
9,698 | 0.42 |
RFQ |
Datasheet |
6-XFDFN | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 5 | - | 5V (Max) | 6.4V | 12V | 2.5A (8/20µs) | 25W | No | General Purpose | 16pF @ 1MHz | -65°C ~ 150°C (TA) | Surface Mount |
|
PTVS13VS1UR,115TVS DIODE 13VWM 21.5VC SOD123W |
35,355 | 0.41 |
RFQ |
Datasheet |
SOD-123W | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | 1 | - | 13V | 14.4V | 21.5V | 18.6A | 400W | No | Automotive | - | -55°C ~ 150°C (TA) | Surface Mount |
|
|
PTVS7V0S1UR,115TVS DIODE 7VWM 12VC SOD123W |
4,115 | 0.41 |
RFQ |
Datasheet |
SOD-123W | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | 1 | - | 7V | 7.78V | 12V | 33.3A | 400W | No | Automotive | - | -55°C ~ 150°C (TA) | Surface Mount |
|
|
PTVS15VS1UR,115TVS DIODE 15VWM 24.4VC SOD123W |
15,152 | 0.41 |
RFQ |
Datasheet |
SOD-123W | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | 1 | - | 15V | 16.7V | 24.4V | 16.4A | 400W | No | Automotive | - | -55°C ~ 150°C (TA) | Surface Mount |
|
|
PTVS54VS1UR,115TVS DIODE 54VWM 87.1VC SOD123W |
15,425 | 0.41 |
RFQ |
Datasheet |
SOD-123W | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | 1 | - | 54V | 60V | 87.1V | 4.6A | 400W | No | Automotive | - | -55°C ~ 150°C (TA) | Surface Mount |
