| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | UnidirectionalChannels | BidirectionalChannels | Voltage-ReverseStandoff(Typ) | Voltage-Breakdown(Min) | Voltage-Clamping(Max)@Ipp | Current-PeakPulse(10/1000µs) | Power-PeakPulse | PowerLineProtection | Applications | Capacitance@Frequency | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PESD3V3S4UD,115TVS DIODE 3.3VWM 12VC 6TSOP |
10,540 | 0.49 |
RFQ |
Datasheet |
SC-74, SOT-457 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 4 | - | 3.3V (Max) | 5.3V | 12V | 20A (8/20µs) | 200W | No | General Purpose | 215pF @ 1MHz | -65°C ~ 150°C (TA) | Surface Mount |
|
|
IP4234CZ6,125TVS DIODE 5.5VWM 6TSOP |
18,310 | 0.49 |
RFQ |
Datasheet |
SC-74, SOT-457 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Steering (Rail to Rail) | 4 | - | 5.5V | 6V | - | - | 100W | Yes | General Purpose | 2.5pF @ 1MHz | -40°C ~ 85°C (TA) | Surface Mount |
|
IP4292CZ10-TBR,115TVS DIODE 5.5VWM 4VC DFN2510A-10 |
17,698 | 0.54 |
RFQ |
Datasheet |
10-XFDFN | Tape & Reel (TR),Cut Tape (CT) | - | Active | Steering (Rail to Rail) | 4 | - | 5.5V | 6V | 4V (Typ) | 4A (8/20µs) | - | Yes | General Purpose | - | -40°C ~ 85°C (TA) | Surface Mount |
|
PTVS33VP1UP,115TVS DIODE 33VWM 53.3VC SOD128 |
43,166 | 0.54 |
RFQ |
Datasheet |
SOD-128 | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | 1 | - | 33V | 36.7V | 53.3V | 11.3A | 600W | No | Automotive | - | -55°C ~ 150°C (TA) | Surface Mount |
|
|
PESD24VS5UD,115TVS DIODE 24VWM 52VC 6TSOP |
63,053 | 0.45 |
RFQ |
Datasheet |
SC-74, SOT-457 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 5 | - | 24V (Max) | 25.5V | 52V | 4A (8/20µs) | 200W | No | General Purpose | 45pF @ 1MHz | -65°C ~ 150°C (TA) | Surface Mount |
|
|
PESD12VS5UD,115TVS DIODE 12VWM 24VC 6TSOP |
128,494 | 0.49 |
RFQ |
Datasheet |
SC-74, SOT-457 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 5 | - | 12V (Max) | 12.5V | 24V | 10A (8/20µs) | 200W | No | General Purpose | 73pF @ 1MHz | -65°C ~ 150°C (TA) | Surface Mount |
|
PESD1LVDS,115TVS DIODE 5.5VWM DFN2510-10 |
42,652 | 0.79 |
RFQ |
Datasheet |
10-XFDFN | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Steering (Rail to Rail) | 4 | - | 5.5V (Max) | 6V | - | - | - | Yes | Automotive | - | -40°C ~ 125°C (TA) | Surface Mount |
|

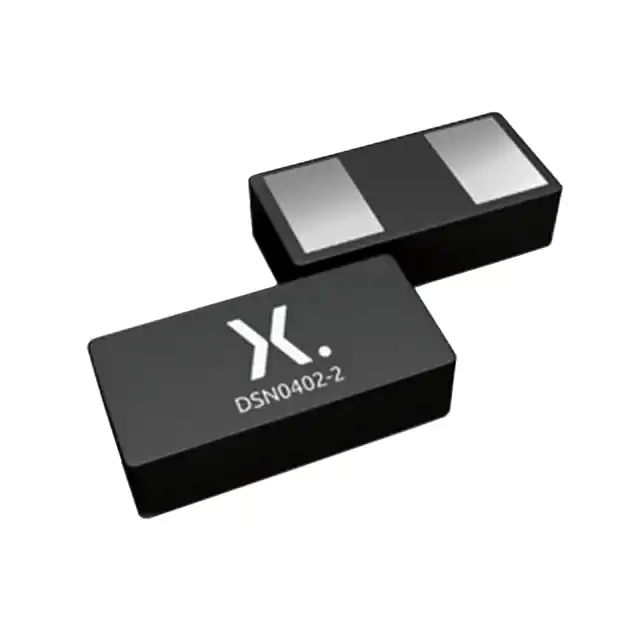

PESD5V0H1BSNYLTVS DIODE 5VWM 4.9VC DSN0402B |
222,691 | 0.26 |
RFQ |
Datasheet |
01005 (0402 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | - | 1 | 5V (Max) | 9V (Typ) | 4.9V (Typ) | 7A (8/20µs) | - | No | Telecom | 0.17pF @ 1MHz | -40°C ~ 125°C (TA) | Surface Mount |
|
PESD5V0S1UL,315TVS DIODE 5VWM 20VC DFN1006-2 |
74,681 | 0.39 |
RFQ |
Datasheet |
SOD-882 | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | 1 | - | 5V (Max) | 6.4V | 20V | 15A (8/20µs) | 150W | No | Automotive | 152pF @ 1MHz | -65°C ~ 150°C (TA) | Surface Mount |
.jpg)
|
PESD5V0C2BDFZTVS DIODE 5VWM 6.5VC DFN0603-3 |
67,941 | 0.35 |
RFQ |
Datasheet |
0201 (0603 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | - | 2 | 5V (Max) | 9.6V (Typ) | 6.5V (Typ) | 8.5A (8/20µs) | - | No | HDMI, Telecom, USB | 0.21pF @ 1MHz | -40°C ~ 125°C (TA) | Surface Mount |
|
PESD5V0R1BDSFYLTVS DIODE 5VWM DSN0603-2 |
2,327 | 0.35 |
RFQ |
Datasheet |
0201 (0603 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | - | 1 | 5V (Max) | - | - | - | - | No | HDMI, Telecom, USB | 0.1pF @ 10GHz | - | Surface Mount |
.jpg)
|
PESD5Z2.5,115TVS DIODE 2.5VWM 15VC SOD523 |
5,669 | 0.31 |
RFQ |
Datasheet |
SC-79, SOD-523 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 1 | - | 2.5V (Max) | 4V | 15V | 20A (8/20µs) | 260W | No | Ethernet | 229pF @ 1MHz | -65°C ~ 150°C (TA) | Surface Mount |
|
|
PESD12VV1BL,315TVS DIODE 12VWM 38VC DFN1006-2 |
29,468 | 0.39 |
RFQ |
Datasheet |
SOD-882 | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | - | 1 | 12V (Max) | 14.6V | 38V | 7.8A (8/20µs) | 290W | No | Automotive | 17pF @ 1MHz | -55°C ~ 150°C (TA) | Surface Mount |
|
|
PESD3V3NW-SFYLTVS DIODE 3.3VWM 5.1VC DSN0603-2 |
30,659 | 0.36 |
RFQ |
Datasheet |
0201 (0603 Metric) | Tape & Reel (TR),Cut Tape (CT) | TrEOS | Active | Zener | - | 1 | 3.3V (Max) | 6.8V (Typ) | 5.1V (Typ) | 20A (8/20µs) | - | No | Telecom | 0.6pF @ 1MHz | -40°C ~ 125°C (TA) | Surface Mount |
|
PESD5V0V2BMYLTVS DIODE 5VWM 12.5VC SOT883 |
22,062 | 0.41 |
RFQ |
Datasheet |
SC-101, SOT-883 | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | - | 2 | 5V (Max) | 5.5V | 12.5V | 9A (8/20µs) | - | No | Automotive | 18pF @ 1MHz | -55°C ~ 150°C (TA) | Surface Mount |
|
PESD5V0X1ULD,315TVS DIODE 5VWM 8VC DFN1006D-2 |
19,610 | 0.42 |
RFQ |
Datasheet |
2-XDFN | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | 1 | - | 5V (Max) | 5.8V | 8V (Typ) | 1.5A (8/20µs) | - | No | Automotive | 0.95pF @ 1MHz | -55°C ~ 150°C (TA) | Surface Mount |
|

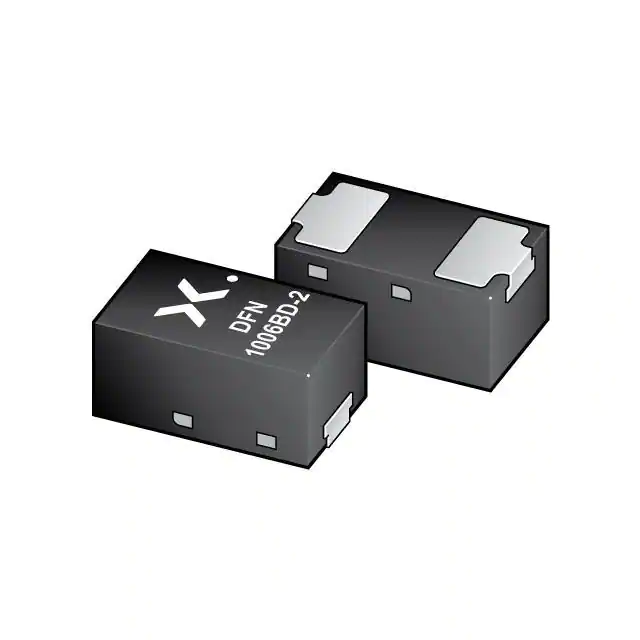

PESD36VS1ULSYLTVS DIODE 36VWM 80VC DFN1006BD-2 |
69,910 | 0.43 |
RFQ |
Datasheet |
SOD-882 | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | 1 | - | 36V (Max) | 38.2V | 80V | 2.5A (8/20µs) | - | No | Automotive, Telecom | 18pF @ 1MHz | -55°C ~ 150°C (TA) | Surface Mount |
|
NUP1301,215TVS DIODE 80VWM 20VC TO236AB |
47,851 | 0.37 |
RFQ |
Datasheet |
TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Steering (Rail to Rail) | 1 | - | 80V (Max) | 100V | 20V | 11A (8/20µs) | 220W | No | Automotive | 0.6pF @ 1MHz | -55°C ~ 150°C (TA) | Surface Mount |
|
|
PESD5V0S1USF,315TVS DIODE 5VWM 11VC DSN0603-2 |
15,021 | 0.39 |
RFQ |
Datasheet |
0201 (0603 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 1 | - | 5V (Max) | 6V | 11V | 3.5A (8/20µs) | 35W | No | General Purpose | 35pF @ 1MHz | -55°C ~ 150°C (TA) | Surface Mount |
|
NUP1301U,115TVS DIODE 80VWM 20VC SOT323 |
468 | 0.35 |
RFQ |
Datasheet |
SC-70, SOT-323 | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Steering (Rail to Rail) | 1 | - | 80V (Max) | 100V | 20V | 11A (8/20µs) | 220W | No | Automotive | 0.6pF @ 1MHz | -55°C ~ 150°C (TA) | Surface Mount |
