| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | UnidirectionalChannels | BidirectionalChannels | Voltage-ReverseStandoff(Typ) | Voltage-Breakdown(Min) | Voltage-Clamping(Max)@Ipp | Current-PeakPulse(10/1000µs) | Power-PeakPulse | PowerLineProtection | Applications | Capacitance@Frequency | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PESD2USB3S/CXTVS DIODE 10WLCSP |
9,590 | 0.57 |
RFQ |
Datasheet |
10-UFBGA, WLCSP | Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | Zener | 2 | - | - | 6V | - | 8A (8/20µs) | - | No | HDMI, USB | 0.45pF @ 1MHz | -40°C ~ 85°C (TA) | Surface Mount |
-0,22mm.jpg)
|
PESD5V5V1BCSFYLTVS DIODE 5.5VWM DSN0603-2 |
8,990 | 0.29 |
RFQ |
Datasheet |
0201 (0603 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | - | 1 | 5.5V | - | - | 7.1A (8/20µs) | - | No | General Purpose | - | - | Surface Mount |
|
PESD5V0L1UL,315TVS DIODE 5VWM 12VC DFN1006-2 |
7,502 | 0.29 |
RFQ |
Datasheet |
SOD-882 | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | 1 | - | 5V (Max) | 6.4V | 12V | 3.5A (8/20µs) | 42W | No | Automotive | 25pF @ 1MHz | -55°C ~ 150°C (TA) | Surface Mount |
|
|
PTVS4V5D1BLYLTVS DIODE 4.5VWM 13.2VC 2DFN |
1,214 | 0.29 |
RFQ |
Datasheet |
SOD-882 | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | - | 1 | 4.5V (Max) | 4.7V | 13.2V | 34A (8/20µs) | - | No | Automotive | 65pF @ 1MHz | -55°C ~ 150°C (TA) | Surface Mount |
|
MMBZ16VZ-LSYLTVS DIODE 13VWM 26VC DFN1006BD-2 |
9,940 | 0.30 |
RFQ |
Datasheet |
SOD-882 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | - | 1 | 13V (Max) | 15.9V | 26V | 7A (8/20µs) | - | No | Telecom | 15pF @ 1MHz | -55°C ~ 150°C (TA) | Surface Mount |
|
PESD3USB3S/CXTVS DIODE 15WLCSP |
27,000 | 0.86 |
RFQ |
Datasheet |
15-UFBGA, WLCSP | Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | Zener | 2 | - | - | 6V | - | 8A (8/20µs) | - | No | HDMI, USB | 0.45pF @ 1MHz | -40°C ~ 85°C (TA) | Surface Mount |
.jpg)
|
PESD4V0Z2BCDFZTVS DIODE 4VWM 5.8VC DFN0603-3 |
13,048 | 0.35 |
RFQ |
Datasheet |
0201 (0603 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | - | 1 | 4V (Max) | 7.4V (Typ) | 5.8V (Typ) | 11A (8/20µs) | - | No | HDMI, Telecom, USB | 0.31pF @ 1MHz | -40°C ~ 125°C (TA) | Surface Mount |
|
|
MMBZ16VZLS-QYLTVS DIODE 13VWM 26VC DFN1006BD-2 |
9,440 | 0.35 |
RFQ |
Datasheet |
SOD-882 | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | - | 1 | 13V (Max) | 15.9V | 26V | 800mA | - | No | Automotive | 15pF @ 1MHz | -55°C ~ 150°C (TA) | Surface Mount |
|

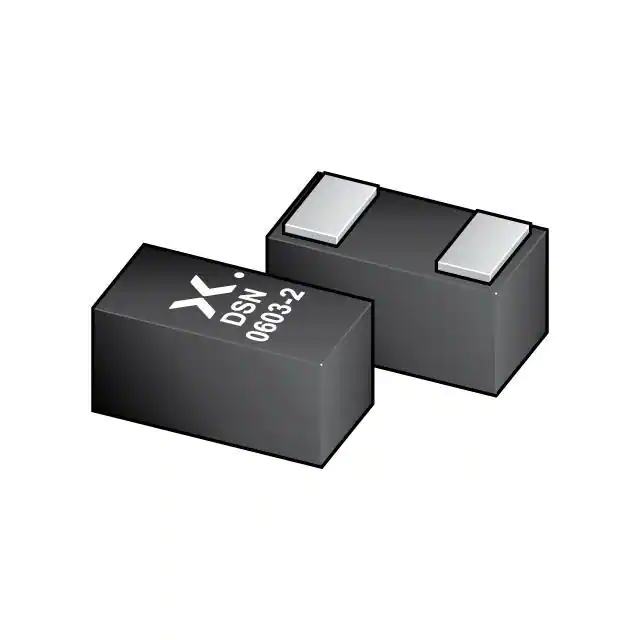

PESD15VW1BCSFYLTVS DIODE 15VWM DSN0603-2 |
2,655 | 0.35 |
RFQ |
Datasheet |
0201 (0603 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | - | 1 | 15V (Max) | - | - | 20A (8/20µs) | - | No | HDMI, Telecom, USB | 0.45pF @ 1MHz | - | Surface Mount |
|

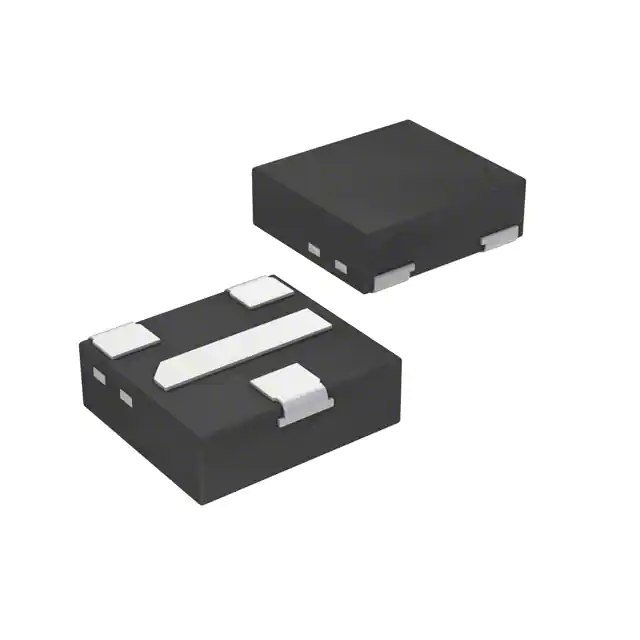

PESD2CANFD27U-QCZTVS DIODE 27VWM 45VC DFN1412D-3 |
4,280 | 0.37 |
RFQ |
Datasheet |
3-XDFN Exposed Pad | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | - | 2 | 27V (Max) | 28V | 45V | 1.8A (8/20µs) | - | No | Automotive, CAN | 3.6pF @ 1MHz | -55°C ~ 150°C (TA) | Surface Mount, Wettable Flank |
|
|
PESD5V0L1ULSYLTVS DIODE 5VWM 12VC DFN1006-2 |
2,101 | 0.36 |
RFQ |
Datasheet |
SOD-882 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 1 | - | 5V (Max) | 6.4V | 12V | 3.5A (8/20µs) | 42W | No | Automotive, Telecom | 25pF @ 1MHz | -55°C ~ 150°C (TA) | Surface Mount |
|
|
PESD12VS1ULSYLTVS DIODE 12VWM 35VC DFN1006BD-2 |
9,965 | 0.37 |
RFQ |
Datasheet |
SOD-882 | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | 1 | - | 12V (Max) | 14.7V | 35V | 5A (8/20µs) | - | No | Telecom | 38pF @ 1MHz | -55°C ~ 150°C (TA) | Surface Mount |
|
|
PESD5V0V1BLSYLTVS DIODE 5VWM 12.5VC 2DFN |
9,900 | 0.37 |
RFQ |
Datasheet |
SOD-882 | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | - | 1 | 5V (Max) | 5.8V | 12.5V | 4.8A (8/20µs) | - | No | Automotive | 11pF @ 1MHz | -55°C ~ 150°C (TA) | Surface Mount |
|
|
PESD5V0S1ULSYLTVS DIODE 5.5VWM 20VC 2DFN |
9,620 | 0.37 |
RFQ |
Datasheet |
SOD-882 | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | 1 | - | 5.5V (Max) | 6.4V | 20V | 15A (8/20µs) | - | No | Automotive, Telecom | 152pF @ 1MHz | -55°C ~ 125°C (TA) | Surface Mount |
|
|
PESD3V3T1BLSAYLTVS DIODE 3.3VWM 11VC 2DFN |
9,000 | 0.37 |
RFQ |
Datasheet |
SOD-882 | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | - | 1 | 3.3V (Max) | 4.7V | 11V | 10A (8/20µs) | - | No | Automotive | 20pF @ 1MHz | 150°C (TJ) | Surface Mount |
|
PESD5V0V1BSF,315TVS DIODE 5VWM 12.8VC DSN0603-2 |
7,542 | 0.37 |
RFQ |
Datasheet |
0201 (0603 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | - | 1 | 5V (Max) | 6V | 12.8V | 1A (8/20µs) | 8W | No | General Purpose | 3.5pF @ 1MHz | -55°C ~ 150°C (TA) | Surface Mount |
|
|
PESD3V3S1ULSYLTVS DIODE 3.3VWM 15.5VC 2DFN |
7,118 | 0.37 |
RFQ |
Datasheet |
SOD-882 | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | 1 | - | 3.3V (Max) | 5.2V | 15.5V | 20A (8/20µs) | - | No | Automotive, Telecom | 207pF @ 1MHz | -55°C ~ 150°C (TA) | Surface Mount |
|
|
PESD5V0F1BSF,315TVS DIODE 5.5VWM 12.8VC DSN0603 |
6,143 | 0.37 |
RFQ |
Datasheet |
0201 (0603 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | - | 1 | 5.5V (Max) | 6V | 12.8V | 2.2A (8/20µs) | 28W | No | General Purpose | 0.25pF @ 1MHz | -55°C ~ 150°C (TA) | Surface Mount |
|
|
PESD2CANFD24U-QCZTVS DIODE 24VWM 43VC DFN1412D-3 |
4,580 | 0.37 |
RFQ |
Datasheet |
3-XDFN Exposed Pad | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | - | 2 | 24V (Max) | 25.5V | 43V | 1.9A (8/20µs) | - | No | Automotive, CAN | 3.2pF @ 1MHz | -55°C ~ 150°C (TA) | Surface Mount, Wettable Flank |
|
|
PESD5V0S1BSF,315TVS DIODE 5VWM 15.5VC DSN0603-2 |
1,291 | 0.37 |
RFQ |
Datasheet |
0201 (0603 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | - | 1 | 5V (Max) | 6V | 15.5V | 8A (8/20µs) | 100W | No | General Purpose | 35pF @ 1MHz | -55°C ~ 150°C (TA) | Surface Mount |
