| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

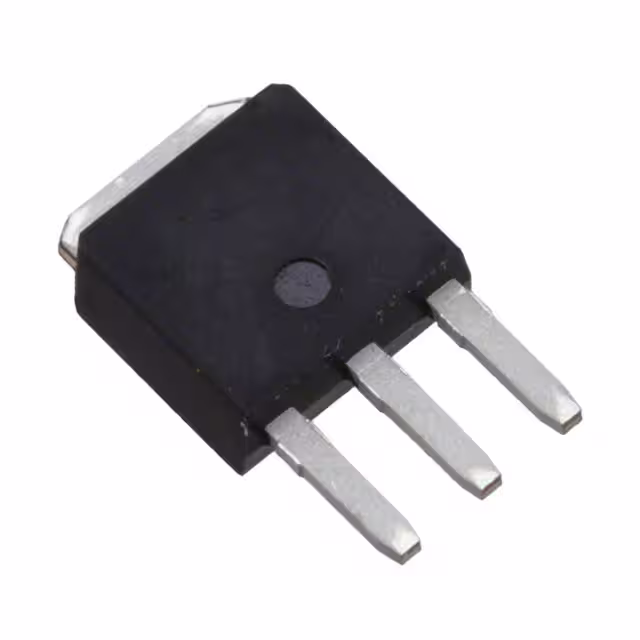

TK5Q60W,S1VQMOSFET N CH 600V 5.4A IPAK |
3,923 | 1.50 |
RFQ |
Tube | DTMOSIV | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 5.4A (Ta) | 10V | 900mOhm @ 2.7A, 10V | 3.7V @ 270µA | 10.5 nC @ 10 V | ±30V | 380 pF @ 300 V | Super Junction | 60W (Tc) | 150°C (TJ) | Through Hole | |
|
TK14G65W5,RQMOSFET N-CH 650V 13.7A D2PAK |
2,935 | 1.52 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | DTMOSIV | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 13.7A (Ta) | 10V | 300mOhm @ 6.9A, 10V | 4.5V @ 690µA | 40 nC @ 10 V | ±30V | 1300 pF @ 300 V | - | 130W (Tc) | 150°C (TJ) | Surface Mount |
|
TK9A45D(STA4,Q,M)MOSFET N-CH 450V 9A TO220SIS |
2,131 | 1.52 |
RFQ |
Datasheet |
Tube | π-MOSVII | Active | N-Channel | MOSFET (Metal Oxide) | 450 V | 9A (Ta) | 10V | 770mOhm @ 4.5A, 10V | 4V @ 1mA | 16 nC @ 10 V | ±30V | 800 pF @ 25 V | - | 40W (Tc) | 150°C (TJ) | Through Hole |
|
TK56E12N1,S1XMOSFET N CH 120V 56A TO-220 |
2,775 | 1.52 |
RFQ |
Datasheet |
Tube | U-MOSVIII-H | Active | N-Channel | MOSFET (Metal Oxide) | 120 V | 56A (Ta) | 10V | 7mOhm @ 28A, 10V | 4V @ 1mA | 69 nC @ 10 V | ±20V | 4200 pF @ 60 V | - | 168W (Tc) | 150°C (TJ) | Through Hole |
|
TK6A65W,S5XMOSFET N-CH 650V 5.8A TO220SIS |
3,526 | 1.54 |
RFQ |
Datasheet |
Tube | DTMOSIV | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 5.8A (Ta) | 10V | 1Ohm @ 2.9A, 10V | 3.5V @ 180µA | 11 nC @ 10 V | ±30V | 390 pF @ 300 V | - | 30W (Tc) | 150°C (TJ) | Through Hole |
|
TK16V60W,LVQMOSFET N-CH 600V 15.8A 4DFN |
2,303 | 1.55 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | DTMOSIV | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 15.8A (Ta) | 10V | 190mOhm @ 7.9A, 10V | 3.7V @ 790µA | 38 nC @ 10 V | ±30V | 1350 pF @ 300 V | Super Junction | 139W (Tc) | 150°C (TJ) | Surface Mount |
|
|
TK8A55DA(STA4,Q,M)MOSFET N-CH 550V 7.5A TO220SIS |
3,052 | 1.57 |
RFQ |
Datasheet |
Tube | π-MOSVII | Active | N-Channel | MOSFET (Metal Oxide) | 550 V | 7.5A (Ta) | 10V | 1.07Ohm @ 3.8A, 10V | 4V @ 1mA | 16 nC @ 10 V | ±30V | 800 pF @ 25 V | - | 40W (Tc) | 150°C (TJ) | Through Hole |
|
|
TK8A65W,S5XMOSFET N-CH 650V 7.8A TO220SIS |
2,530 | 1.58 |
RFQ |
Datasheet |
Tube | DTMOSIV | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 7.8A (Ta) | 10V | 650mOhm @ 3.9A, 10V | 3.5V @ 300µA | 16 nC @ 10 V | ±30V | 570 pF @ 300 V | - | 30W (Tc) | 150°C (TJ) | Through Hole |
|
|
TK6Q60W,S1VQMOSFET N-CH 600V 6.2A IPAK |
2,988 | 1.61 |
RFQ |
Datasheet |
Tube | DTMOSIV | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 6.2A (Ta) | 10V | 820mOhm @ 3.1A, 10V | 3.7V @ 310µA | 12 nC @ 10 V | ±30V | 390 pF @ 300 V | Super Junction | 60W (Tc) | 150°C (TJ) | Through Hole |
|
TK18A30D,S5XPB-F POWER MOSFET TRANSISTOR TO- |
2,344 | 1.59 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 300 V | 18A (Ta) | 10V | 139mOhm @ 9A, 10V | 3.5V @ 1mA | 60 nC @ 10 V | ±20V | 2600 pF @ 100 V | - | 45W (Tc) | 150°C | Through Hole |
|
|
TK25A20D,S5XPB-F POWER MOSFET TRANSISTOR TO- |
3,173 | 1.59 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 25A (Ta) | 10V | 70mOhm @ 12.5A, 10V | 3.5V @ 1mA | 60 nC @ 10 V | ±20V | 2550 pF @ 100 V | - | 45W (Tc) | 150°C | Through Hole |
|
|
TK8Q65W,S1QMOSFET N-CH 650V 7.8A IPAK |
2,947 | 1.64 |
RFQ |
Datasheet |
Tube | DTMOSIV | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 7.8A (Ta) | 10V | 670mOhm @ 3.9A, 10V | 3.5V @ 300µA | 16 nC @ 10 V | ±30V | 570 pF @ 300 V | - | 80W (Tc) | 150°C (TJ) | Through Hole |
|
|
TK11A45D(STA4,Q,M)MOSFET N-CH 450V 11A TO220SIS |
2,396 | 1.65 |
RFQ |
Datasheet |
Tube | π-MOSVII | Active | N-Channel | MOSFET (Metal Oxide) | 450 V | 11A (Ta) | 10V | 620mOhm @ 5.5A, 10V | 4V @ 1mA | 20 nC @ 10 V | ±30V | 1050 pF @ 25 V | - | 40W (Tc) | 150°C (TJ) | Through Hole |
|
|
TK12Q60W,S1VQMOSFET N CH 600V 11.5A IPAK |
3,297 | 1.65 |
RFQ |
Datasheet |
Tube | DTMOSIV | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 11.5A (Ta) | 10V | 340mOhm @ 5.8A, 10V | 3.7V @ 600µA | 25 nC @ 10 V | ±30V | 890 pF @ 300 V | Super Junction | 100W (Tc) | 150°C (TJ) | Through Hole |
|
|
TK10V60W,LVQMOSFET N-CH 600V 9.7A 4DFN |
3,395 | 1.65 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | DTMOSIV | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 9.7A (Ta) | 10V | 380mOhm @ 4.9A, 10V | 3.7V @ 500µA | 20 nC @ 10 V | ±30V | 700 pF @ 300 V | Super Junction | 88.3W (Tc) | 150°C (TJ) | Surface Mount |
|
|
TK16G60W5,RVQPB-F POWER MOSFET TRANSISTOR DPA |
2,867 | 1.62 |
RFQ |
Datasheet |
Tape & Reel (TR) | DTMOSIV | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 15.8A (Ta) | 10V | 230mOhm @ 7.9A, 10V | 4.5V @ 790µA | 43 nC @ 10 V | ±30V | 1350 pF @ 300 V | - | 130W (Tc) | 150°C | Surface Mount |
|
|
TK10A50D(STA4,Q,M)MOSFET N-CH 500V 10A TO220SIS |
2,291 | 1.68 |
RFQ |
Datasheet |
Tube | π-MOSVII | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 10A (Ta) | 10V | 720mOhm @ 5A, 10V | 4V @ 1mA | 20 nC @ 10 V | ±30V | 1050 pF @ 25 V | - | 45W (Tc) | 150°C (TJ) | Through Hole |
|
|
TK7A60W,S4VXMOSFET N-CH 600V 7A TO220SIS |
2,160 | 1.71 |
RFQ |
Datasheet |
Tube | DTMOSIV | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 7A (Ta) | 10V | 600mOhm @ 3.5A, 10V | 3.7V @ 350µA | 15 nC @ 10 V | ±30V | 490 pF @ 300 V | Super Junction | 30W (Tc) | 150°C (TJ) | Through Hole |
|
|
TK7Q60W,S1VQMOSFET N-CH 600V 7A IPAK |
2,882 | 1.72 |
RFQ |
Datasheet |
Tube | DTMOSIV | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 7A (Ta) | 10V | 600mOhm @ 3.5A, 10V | 3.7V @ 350µA | 15 nC @ 10 V | ±30V | 490 pF @ 300 V | - | 60W (Tc) | 150°C (TJ) | Through Hole |
|
|
TK6A65D(STA4,Q,M)MOSFET N-CH 650V 6A TO220SIS |
2,588 | 2.03 |
RFQ |
Datasheet |
Tube | π-MOSVII | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 6A (Ta) | 10V | 1.11Ohm @ 3A, 10V | 4V @ 1mA | 20 nC @ 10 V | ±30V | 1050 pF @ 25 V | - | 45W (Tc) | 150°C (TJ) | Through Hole |
