| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IXTH1N300P3HVMOSFET N-CH 3000V 1A TO247HV |
3,272 | 36.34 |
RFQ |
Datasheet |
Tube | Polar P3™ | Active | N-Channel | MOSFET (Metal Oxide) | 3000 V | 1A (Tc) | 10V | 50Ohm @ 500mA, 10V | 4V @ 250µA | 30.6 nC @ 10 V | ±20V | 895 pF @ 25 V | - | 195W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IXTT4N150HVMOSFET N-CH 1500V 4A TO268 |
2,302 | 38.99 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 1500 V | 4A (Tc) | 10V | 6Ohm @ 500mA, 10V | 5V @ 250µA | 44.5 nC @ 10 V | ±30V | 1576 pF @ 25 V | - | 280W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
.jpg)
|
IXFR64N60Q3MOSFET N-CH 600V 42A ISOPLUS247 |
3,693 | 41.83 |
RFQ |
Datasheet |
Tube | HiPerFET™, Q3 Class | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 42A (Tc) | 10V | 104mOhm @ 32A, 10V | 6.5V @ 4mA | 190 nC @ 10 V | ±30V | 9930 pF @ 25 V | - | 568W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IXFN44N100PMOSFET N-CH 1000V 37A SOT-227B |
3,155 | 41.98 |
RFQ |
Datasheet |
Tube | HiPerFET™, Polar | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 37A (Tc) | 10V | 220mOhm @ 22A, 10V | 6.5V @ 1mA | 305 nC @ 10 V | ±30V | 19000 pF @ 25 V | - | 890W (Tc) | -55°C ~ 150°C (TJ) | Chassis Mount |
|
|
IXFR32N100Q3MOSFET N-CH 1000V 23A ISOPLUS247 |
2,598 | 43.84 |
RFQ |
Datasheet |
Tube | HiPerFET™, Q3 Class | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 23A (Tc) | 10V | 350mOhm @ 16A, 10V | 6.5V @ 8mA | 195 nC @ 10 V | ±30V | 9940 pF @ 25 V | - | 570W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IXFB40N110Q3MOSFET N-CH 1100V 40A PLUS264 |
3,024 | 47.76 |
RFQ |
Datasheet |
Tube | HiPerFET™, Q3 Class | Active | N-Channel | MOSFET (Metal Oxide) | 1100 V | 40A (Tc) | 10V | 260mOhm @ 20A, 10V | 6.5V @ 8mA | 300 nC @ 10 V | ±30V | 14000 pF @ 25 V | - | 1560W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
MMIX1F180N25TMOSFET N-CH 250V 132A 24SMPD |
3,326 | 48.03 |
RFQ |
Datasheet |
Tube | GigaMOS™, HiPerFET™, TrenchT2™ | Active | N-Channel | MOSFET (Metal Oxide) | 250 V | 132A (Tc) | 10V | 13mOhm @ 90A, 10V | 5V @ 8mA | 364 nC @ 10 V | ±20V | 23800 pF @ 25 V | - | 570W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IXTT3N200P3HVMOSFET N-CH 2000V 3A TO268 |
2,802 | 50.69 |
RFQ |
Datasheet |
Tube | Polar P3™ | Active | N-Channel | MOSFET (Metal Oxide) | 2000 V | 3A (Tc) | 10V | 8Ohm @ 1.5A, 10V | 5V @ 250µA | 70 nC @ 10 V | ±20V | 1860 pF @ 25 V | - | 520W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IXFN80N50Q3MOSFET N-CH 500V 63A SOT227B |
3,039 | 53.34 |
RFQ |
Datasheet |
Tube | HiPerFET™, Q3 Class | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 63A (Tc) | 10V | 65mOhm @ 40A, 10V | 6.5V @ 8mA | 200 nC @ 10 V | ±30V | 10000 pF @ 25 V | - | 780W (Tc) | -55°C ~ 150°C (TJ) | Chassis Mount |
|

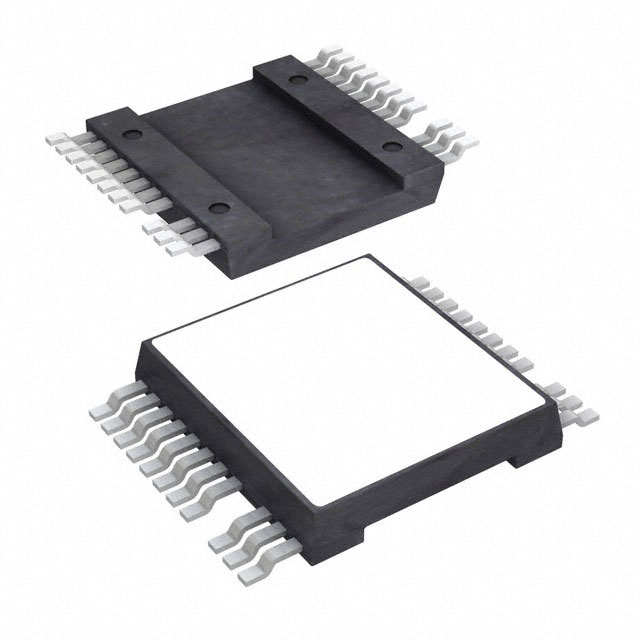

MMIX1T132N50P3MOSFET N-CH 500V 63A POLAR3 |
2,417 | 56.00 |
RFQ |
Datasheet |
Tube | Polar™ | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 63A (Tc) | 10V | 43mOhm @ 66A, 10V | 5V @ 8mA | 267 nC @ 10 V | ±30V | 18600 pF @ 25 V | - | 520W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IXFN44N80Q3MOSFET N-CH 800V 37A SOT227B |
3,274 | 62.13 |
RFQ |
Datasheet |
Tube | HiPerFET™, Q3 Class | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 37A (Tc) | 10V | 190mOhm @ 22A, 10V | 6.5V @ 8mA | 185 nC @ 10 V | ±30V | 9840 pF @ 25 V | - | 780W (Tc) | -55°C ~ 150°C (TJ) | Chassis Mount |
|
|
IXFN32N100Q3MOSFET N-CH 1000V 28A SOT227B |
3,251 | 62.13 |
RFQ |
Datasheet |
Tube | HiPerFET™, Q3 Class | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 28A (Tc) | 10V | 320mOhm @ 16A, 10V | 6.5V @ 8mA | 195 nC @ 10 V | ±30V | 9940 pF @ 25 V | - | 780W (Tc) | -55°C ~ 150°C (TJ) | Chassis Mount |
|
|
IXFN74N100XMOSFET N-CH 1000V 74A SOT227B |
2,435 | 89.68 |
RFQ |
Datasheet |
Tube | HiPerFET™, Ultra X | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 74A (Tc) | 10V | 66mOhm @ 37A, 10V | 5.5V @ 8mA | 425 nC @ 10 V | ±30V | 17000 pF @ 25 V | - | 1170W (Tc) | -55°C ~ 150°C (TJ) | Chassis Mount |
|
|
VMO650-01FMOSFET N-CH 100V 690A Y3-DCB |
3,712 | 213.35 |
RFQ |
Datasheet |
Bulk | HiPerFET™ | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 690A (Tc) | 10V | 1.8mOhm @ 500mA, 10V | 6V @ 130mA | 2300 nC @ 10 V | ±20V | 59000 pF @ 25 V | - | 2500W (Tc) | -40°C ~ 150°C (TJ) | Chassis Mount |
|
IXTY1R6N50D2-TRLMOSFET N-CH 500V 1.6A TO252AA |
2,353 | 3.00 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | Depletion | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 1.6A (Tj) | 0V | 2.3Ohm @ 800mA, 0V | 4.5V @ 250µA | 23.7 nC @ 5 V | ±20V | 645 pF @ 25 V | - | 100W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount | |
|
|
IXTY02N120PMOSFET N-CH 1200V 200MA TO252 |
3,321 | 2.39 |
RFQ |
Datasheet |
Tube | Polar | Active | N-Channel | MOSFET (Metal Oxide) | 1200 V | 200mA (Tc) | 10V | 75Ohm @ 500mA, 10V | 4V @ 100µA | 4.7 nC @ 10 V | ±20V | 104 pF @ 25 V | - | 33W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IXTY08N50D2MOSFET N-CH 500V 800MA TO252 |
3,552 | 2.44 |
RFQ |
Datasheet |
Tube | Depletion | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 800mA (Tc) | - | 4.6Ohm @ 400mA, 0V | - | 12.7 nC @ 5 V | ±20V | 312 pF @ 25 V | Depletion Mode | 60W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
IXTA06N120P-TRLMOSFET N-CH 1200V 600MA TO263 |
2,794 | 4.54 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | Polar | Active | N-Channel | MOSFET (Metal Oxide) | 1200 V | 600mA (Tc) | 10V | 34Ohm @ 300mA, 10V | 4V @ 50µA | 13.3 nC @ 10 V | ±30V | 236 pF @ 25 V | - | 42W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount | |
|
|
IXTY1R6N50D2MOSFET N-CH 500V 1.6A TO252 |
3,952 | 3.00 |
RFQ |
Datasheet |
Tube | Depletion | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 1.6A (Tc) | - | 2.3Ohm @ 800mA, 0V | - | 23.7 nC @ 5 V | ±20V | 645 pF @ 25 V | Depletion Mode | 100W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IXTY1R6N100D2MOSFET N-CH 1000V 1.6A TO252 |
3,533 | 3.00 |
RFQ |
Datasheet |
Tube | Depletion | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 1.6A (Tc) | - | 10Ohm @ 800mA, 0V | - | 27 nC @ 5 V | ±20V | 645 pF @ 25 V | Depletion Mode | 100W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
