| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IXFN360N10TMOSFET N-CH 100V 360A SOT-227B |
3,819 | 27.16 |
RFQ |
Datasheet |
Tube | HiPerFET™, Trench | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 360A (Tc) | 10V | 2.6mOhm @ 180A, 10V | 4.5V @ 250µA | 505 nC @ 10 V | ±20V | 36000 pF @ 25 V | - | 830W (Tc) | -55°C ~ 175°C (TJ) | Chassis Mount |
|
|
IXFN180N15PMOSFET N-CH 150V 150A SOT-227B |
2,743 | 27.58 |
RFQ |
Datasheet |
Box | HiPerFET™, Polar | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 150A (Tc) | 10V | 11mOhm @ 90A, 10V | 5V @ 4mA | 240 nC @ 10 V | ±20V | 7000 pF @ 25 V | - | 680W (Tc) | -55°C ~ 175°C (TJ) | Chassis Mount |
|
IXFK24N100Q3MOSFET N-CH 1000V 24A TO264AA |
3,059 | 28.36 |
RFQ |
Datasheet |
Tube | HiPerFET™, Q3 Class | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 24A (Tc) | 10V | 440mOhm @ 12A, 10V | 6.5V @ 4mA | 140 nC @ 10 V | ±30V | 7200 pF @ 25 V | - | 1000W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXFN64N50PMOSFET N-CH 500V 61A SOT227B |
2,521 | 28.81 |
RFQ |
Datasheet |
Tube | HiPerFET™, Polar | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 61A (Tc) | 10V | 85mOhm @ 32A, 10V | 5.5V @ 8mA | 150 nC @ 10 V | ±30V | 8700 pF @ 25 V | - | 700W (Tc) | -55°C ~ 150°C (TJ) | Chassis Mount |
.jpg)
|

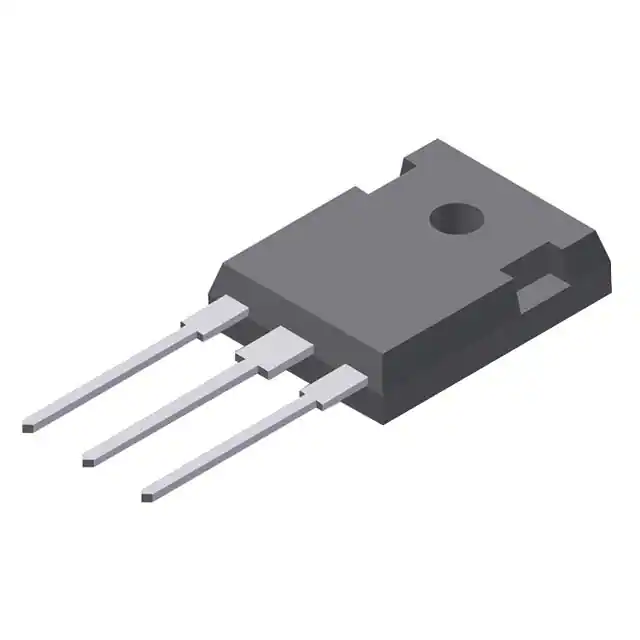

IXFX360N15T2MOSFET N-CH 150V 360A PLUS247-3 |
3,588 | 31.23 |
RFQ |
Datasheet |
Tube | HiPerFET™, TrenchT2™ | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 360A (Tc) | 10V | 4mOhm @ 60A, 10V | 5V @ 8mA | 715 nC @ 10 V | ±20V | 47500 pF @ 25 V | - | 1670W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
IXFN520N075T2MOSFET N-CH 75V 480A SOT227B |
3,747 | 34.45 |
RFQ |
Datasheet |
Tube | HiPerFET™, TrenchT2™ | Active | N-Channel | MOSFET (Metal Oxide) | 75 V | 480A (Tc) | 10V | 1.9mOhm @ 100A, 10V | 5V @ 8mA | 545 nC @ 10 V | ±20V | 41000 pF @ 25 V | - | 940W (Tc) | -55°C ~ 175°C (TJ) | Chassis Mount |
|
|
IXFN170N25X3MOSFET N-CH 250V 170A SOT227B |
3,429 | 36.34 |
RFQ |
Datasheet |
Tube | HiPerFET™, Ultra X3 | Active | N-Channel | MOSFET (Metal Oxide) | 250 V | 170A (Tc) | 10V | 7.4mOhm @ 85A, 10V | 4.5V @ 4mA | 190 nC @ 10 V | ±20V | 13500 pF @ 25 V | - | 390W (Tc) | -55°C ~ 150°C (TJ) | Chassis Mount |
|
|
IXTK110N20L2MOSFET N-CH 200V 110A TO264 |
3,247 | 37.96 |
RFQ |
Datasheet |
Tube | Linear L2™ | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 110A (Tc) | 10V | 24mOhm @ 55A, 10V | 4.5V @ 3mA | 500 nC @ 10 V | ±20V | 23000 pF @ 25 V | - | 960W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXTK200N10L2MOSFET N-CH 100V 200A TO264 |
2,516 | 37.96 |
RFQ |
Datasheet |
Tube | Linear L2™ | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 200A (Tc) | 10V | 11mOhm @ 100A, 10V | 4.5V @ 3mA | 540 nC @ 10 V | ±20V | 23000 pF @ 25 V | - | 1040W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXFN110N60P3MOSFET N-CH 600V 90A SOT227B |
2,837 | 38.29 |
RFQ |
Datasheet |
Tube | HiPerFET™, Polar3™ | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 90A (Tc) | 10V | 56mOhm @ 55A, 10V | 5V @ 8mA | 245 nC @ 10 V | ±30V | 18000 pF @ 25 V | - | 1500W (Tc) | -55°C ~ 150°C (TJ) | Chassis Mount |
|
IXTX400N15X4MOSFET N-CH 150V 400A PLUS247 |
2,638 | 43.20 |
RFQ |
Datasheet |
Tube | Ultra X4 | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 400A (Tc) | 10V | 3.1mOhm @ 100A, 10V | 4.5V @ 1mA | 430 nC @ 10 V | ±20V | 14500 pF @ 25 V | - | 1500W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
IXFN66N85XMOSFET N-CH 850V 65A SOT227B |
237 | 44.93 |
RFQ |
Datasheet |
Tube | HiPerFET™, Ultra X | Active | N-Channel | MOSFET (Metal Oxide) | 850 V | 65A (Tc) | 10V | 65mOhm @ 33A, 10V | 5.5V @ 8mA | 230 nC @ 10 V | ±30V | 8900 pF @ 25 V | - | 830W (Tc) | -55°C ~ 150°C (TJ) | Chassis Mount |
|
|
IXFN210N30X3MOSFET N-CH 300V 210A SOT227B |
3,819 | 47.21 |
RFQ |
Datasheet |
Tube | HiPerFET™, Ultra X3 | Active | N-Channel | MOSFET (Metal Oxide) | 300 V | 210A (Tc) | 10V | 4.6mOhm @ 105A, 10V | 4.5V @ 8mA | 375 nC @ 10 V | ±20V | 24200 pF @ 25 V | - | 695W (Tc) | -55°C ~ 150°C (TJ) | Chassis Mount |
|
|
IXFN360N15T2MOSFET N-CH 150V 310A SOT227B |
3,482 | 48.92 |
RFQ |
Datasheet |
Tube | HiPerFET™, TrenchT2™ | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 310A (Tc) | 10V | 4mOhm @ 60A, 10V | 5V @ 8mA | 715 nC @ 10 V | ±20V | 47500 pF @ 25 V | - | 1070W (Tc) | -55°C ~ 175°C (TJ) | Chassis Mount |
|
|
IXTN60N50L2MOSFET N-CH 500V 53A SOT227B |
3,371 | 49.37 |
RFQ |
Datasheet |
Tube | Linear L2™ | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 53A (Tc) | 10V | 100mOhm @ 30A, 10V | 4.5V @ 250µA | 610 nC @ 10 V | ±30V | 24000 pF @ 25 V | - | 735W (Tc) | -55°C ~ 150°C (TJ) | Chassis Mount |
|
|
IXTN90N25L2MOSFET N-CH 250V 90A SOT227B |
2,409 | 49.37 |
RFQ |
Datasheet |
Tube | Linear L2™ | Active | N-Channel | MOSFET (Metal Oxide) | 250 V | 90A (Tc) | 10V | 33mOhm @ 500mA, 10V | 4.5V @ 3mA | 640 nC @ 10 V | ±20V | 23000 pF @ 25 V | - | 735W (Tc) | -55°C ~ 150°C (TJ) | Chassis Mount |
|
|
IXTN200N10L2MOSFET N-CH 100V 178A SOT227B |
950 | 49.37 |
RFQ |
Datasheet |
Bulk | Linear L2™ | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 178A (Tc) | 10V | 11mOhm @ 100A, 10V | 4.5V @ 3mA | 540 nC @ 10 V | ±20V | 23000 pF @ 25 V | - | 830W (Tc) | -55°C ~ 150°C (TJ) | Chassis Mount |
|
|
IXTN22N100LMOSFET N-CH 1000V 22A SOT227B |
3,932 | 55.29 |
RFQ |
Datasheet |
Tube | Linear | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 22A (Tc) | 20V | 600mOhm @ 11A, 20V | 5.5V @ 250µA | 270 nC @ 15 V | ±30V | 7050 pF @ 25 V | - | 700W (Tc) | -55°C ~ 150°C (TJ) | Chassis Mount |
|
|
IXFN82N60Q3MOSFET N-CH 600V 66A SOT227B |
2,435 | 58.93 |
RFQ |
Datasheet |
Tube | HiPerFET™, Q3 Class | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 66A (Tc) | 10V | 75mOhm @ 41A, 10V | 6.5V @ 8mA | 275 nC @ 10 V | ±30V | 13500 pF @ 25 V | - | 960W (Tc) | -55°C ~ 150°C (TJ) | Chassis Mount |
|
IXFH80N65X2MOSFET N-CH 650V 80A TO247 |
2,384 | 14.27 |
RFQ |
Datasheet |
Tube | HiPerFET™, Ultra X2 | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 80A (Tc) | 10V | 40mOhm @ 40A, 10V | 5.5V @ 4mA | 143 nC @ 10 V | ±30V | 8245 pF @ 25 V | - | 890W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
