| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IXFK220N15PMOSFET N-CH 150V 220A TO264AA |
3,509 | 23.72 |
RFQ |
Datasheet |
Tube | HiPerFET™, Polar | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 220A (Tc) | 10V | 9mOhm @ 500mA, 10V | 4.5V @ 8mA | 162 nC @ 10 V | ±20V | 15400 pF @ 25 V | - | 1250W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
IXFL82N60PMOSFET N-CH 600V 55A ISOPLUS264 |
3,326 | 33.56 |
RFQ |
Datasheet |
Tube | HiPerFET™, Polar | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 55A (Tc) | 10V | 78mOhm @ 41A, 10V | 5V @ 8mA | 240 nC @ 10 V | ±30V | 23000 pF @ 25 V | - | 625W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|

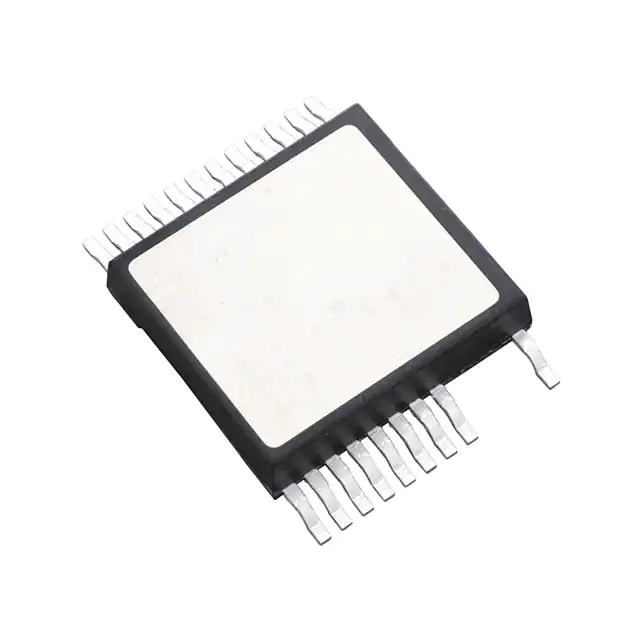

MMIX1T600N04T2MOSFET N-CH 40V 600A 24SMPD |
3,497 | 38.61 |
RFQ |
Datasheet |
Tube | FRFET®, SupreMOS® | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 600A (Tc) | 10V | 1.3mOhm @ 100A, 10V | 3.5V @ 250µA | 590 nC @ 10 V | ±20V | 40000 pF @ 25 V | - | 830W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
IXFN40N90PMOSFET N-CH 900V 33A SOT227B |
3,508 | 40.00 |
RFQ |
Datasheet |
Tube | HiPerFET™, Polar | Active | N-Channel | MOSFET (Metal Oxide) | 900 V | 33A (Tc) | 10V | 210mOhm @ 20A, 10V | 6.5V @ 1mA | 230 nC @ 10 V | ±30V | 14000 pF @ 25 V | - | 695W (Tc) | -55°C ~ 150°C (TJ) | Chassis Mount |
|

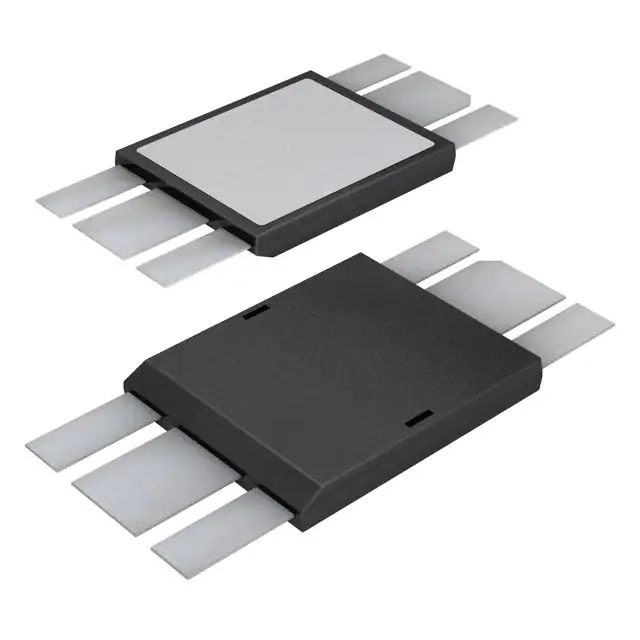

IXTZ550N055T2MOSFET N-CH 55V 550A DE475 |
2,485 | 40.97 |
RFQ |
Datasheet |
Tube | TrenchT2™ | Active | N-Channel | MOSFET (Metal Oxide) | 55 V | 550A (Tc) | 10V | 1mOhm @ 100A, 10V | 4V @ 250µA | 595 nC @ 10 V | ±20V | 40000 pF @ 25 V | - | 600W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
IXFB82N60Q3MOSFET N-CH 600V 82A PLUS264 |
3,056 | 42.56 |
RFQ |
Datasheet |
Tube | HiPerFET™, Q3 Class | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 82A (Tc) | 10V | 75mOhm @ 41A, 10V | 6.5V @ 8mA | 275 nC @ 10 V | ±30V | 13500 pF @ 25 V | - | 1560W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
MMIX1F230N20TMOSFET N-CH 200V 168A 24SMPD |
2,004 | 48.03 |
RFQ |
Datasheet |
Tube | GigaMOS™, HiPerFET™, TrenchT2™ | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 168A (Tc) | 10V | 8.3mOhm @ 60A, 10V | 5V @ 8mA | 378 nC @ 10 V | ±20V | 28000 pF @ 25 V | - | 600W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|

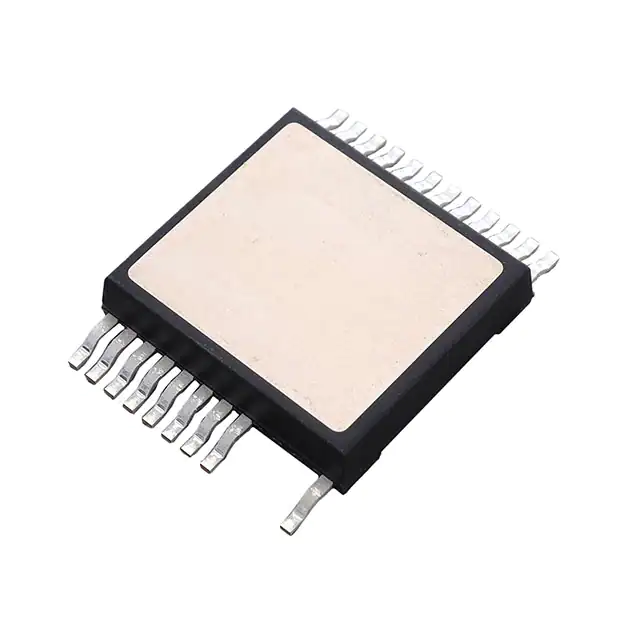

MMIX1F420N10TMOSFET N-CH 100V 334A 24SMPD |
3,262 | 49.13 |
RFQ |
Datasheet |
Tube | GigaMOS™, HiPerFET™, TrenchT2™ | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 334A (Tc) | 10V | 2.6mOhm @ 60A, 10V | 5V @ 8mA | 670 nC @ 10 V | ±20V | 4700 pF @ 10 V | - | 680W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
MMIX1T550N055T2MOSFET N-CH 55V 550A 24SMPD |
3,322 | 49.65 |
RFQ |
Datasheet |
Tube | FRFET®, SupreMOS® | Active | N-Channel | MOSFET (Metal Oxide) | 55 V | 550A (Tc) | 10V | 1.3mOhm @ 100A, 10V | 3.8V @ 250µA | 595 nC @ 10 V | ±20V | 40000 pF @ 25 V | - | 830W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
.jpg)
|
IXFR24N100Q3MOSFET N-CH 1000V 18A ISOPLUS247 |
2,124 | 31.90 |
RFQ |
Datasheet |
Tube | HiPerFET™, Q3 Class | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 18A (Tc) | 10V | 490mOhm @ 12A, 10V | 6.5V @ 4mA | 140 nC @ 10 V | ±30V | 7200 pF @ 25 V | - | 500W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXFB300N10PMOSFET N-CH 100V 300A PLUS264 |
3,423 | 34.95 |
RFQ |
Datasheet |
Tube | HiPerFET™, Polar | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 300A (Tc) | 10V | 5.5mOhm @ 50A, 10V | 5V @ 8mA | 279 nC @ 10 V | ±20V | 23000 pF @ 25 V | - | 1500W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
IXFB210N20PMOSFET N-CH 200V 210A PLUS264 |
2,833 | 34.95 |
RFQ |
Datasheet |
Tube | HiPerFET™, Polar | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 210A (Tc) | 10V | 10.5mOhm @ 105A, 10V | 4.5V @ 8mA | 255 nC @ 10 V | ±20V | 18600 pF @ 25 V | - | 1500W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
IXTF1N250MOSFET N-CH 2500V 1A ISOPLUS I4 |
3,952 | 57.84 |
RFQ |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 2500 V | 1A (Tc) | 10V | 40Ohm @ 500mA, 10V | 4V @ 250µA | 41 nC @ 10 V | ±20V | 1660 pF @ 25 V | - | 110W | -55°C ~ 150°C (TJ) | Through Hole | |
|
IXTT2N300P3HVMOSFET N-CH 3000V 2A TO268 |
3,064 | 50.69 |
RFQ |
Datasheet |
Tube | Polar P3™ | Active | N-Channel | MOSFET (Metal Oxide) | 3000 V | 2A (Tc) | 10V | 21Ohm @ 1A, 10V | 5V @ 250µA | 73 nC @ 10 V | ±20V | 1890 pF @ 25 V | - | 520W (Tc) | -55°C ~ 155°C (TJ) | Surface Mount |
|
|
IXTN17N120LMOSFET N-CH 1200V 15A SOT-227B |
2,321 | 54.61 |
RFQ |
Datasheet |
Tube | Linear | Active | N-Channel | MOSFET (Metal Oxide) | 1200 V | 15A (Tc) | 20V | 900mOhm @ 8.5A, 20V | 5V @ 250µA | 155 nC @ 15 V | ±30V | 8300 pF @ 25 V | - | 540W (Tc) | -55°C ~ 150°C (TJ) | Chassis Mount |
|
IXTL2N470MOSFET N-CH 4700V 2A I5PAK |
3,308 | 111.98 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 4700 V | 2A (Tc) | 10V | 20Ohm @ 1A, 10V | 6V @ 250µA | 180 nC @ 10 V | ±20V | 6860 pF @ 25 V | - | 220W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IXTA1N100PMOSFET N-CH 1000V 1A TO263 |
3,347 | 2.84 |
RFQ |
Datasheet |
Tube | Polar | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 1A (Tc) | 10V | 15Ohm @ 500mA, 10V | 4.5V @ 50µA | 15.5 nC @ 10 V | ±20V | 331 pF @ 25 V | - | 50W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
IXTY8N70X2MOSFET N-CHANNEL 700V 8A TO252 |
2,793 | 3.24 |
RFQ |
Datasheet |
Tube | Ultra X2 | Active | N-Channel | MOSFET (Metal Oxide) | 700 V | 8A (Tc) | 10V | 500mOhm @ 500mA, 10V | 5V @ 250µA | 12 nC @ 10 V | ±30V | 800 pF @ 10 V | - | 150W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IXFY8N65X2MOSFET N-CH 650V 8A TO252AA |
2,416 | 3.24 |
RFQ |
Datasheet |
Tube | HiPerFET™, Ultra X2 | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 8A (Tc) | 10V | 450mOhm @ 4A, 10V | 5V @ 250µA | 11 nC @ 10 V | ±30V | 790 pF @ 25 V | - | 150W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
IXTP4N70X2MMOSFET N-CH 700V 4A TO220 |
2,306 | 3.24 |
RFQ |
Datasheet |
Tube | Ultra X2 | Active | N-Channel | MOSFET (Metal Oxide) | 700 V | 4A (Tc) | 10V | 850mOhm @ 2A, 10V | 4.5V @ 250µA | 11.8 nC @ 10 V | ±30V | 386 pF @ 25 V | - | 30W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
