| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IXFY4N85XMOSFET N-CH 850V 3.5A TO252 |
2,309 | 3.98 |
RFQ |
Datasheet |
Tube | HiPerFET™, Ultra X | Active | N-Channel | MOSFET (Metal Oxide) | 850 V | 3.5A (Tc) | 10V | 2.5Ohm @ 2A, 10V | 5.5V @ 250µA | 7 nC @ 10 V | ±30V | 247 pF @ 25 V | - | 150W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
IXFP12N50PMOSFET N-CH 500V 12A TO220AB |
131 | 4.06 |
RFQ |
Datasheet |
Tube | HiPerFET™, Polar | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 12A (Tc) | 10V | 500mOhm @ 6A, 10V | 5.5V @ 1mA | 29 nC @ 10 V | ±30V | 1830 pF @ 25 V | - | 200W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|

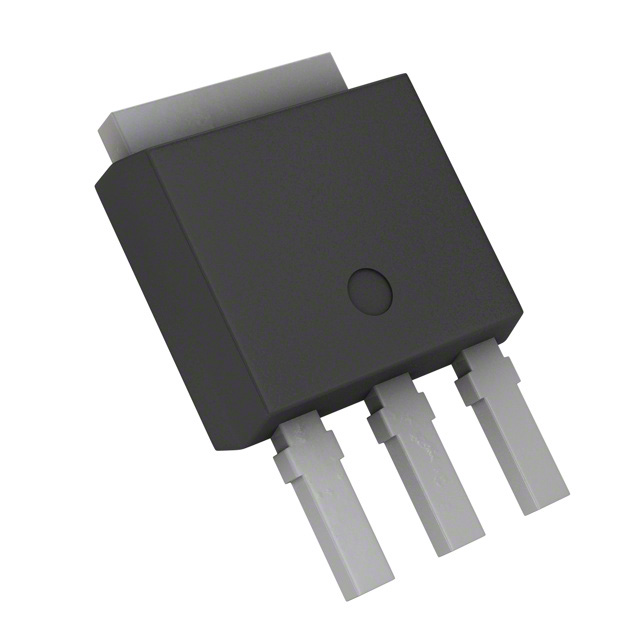

IXTU8N70X2MOSFET N-CH 700V 8A TO251-3 |
3,346 | 4.06 |
RFQ |
Datasheet |
Tube | Ultra X2 | Active | N-Channel | MOSFET (Metal Oxide) | 700 V | 8A (Tc) | 10V | 500mOhm @ 500mA, 10V | 4.5V @ 250µA | 12 nC @ 10 V | ±30V | 800 pF @ 10 V | - | 150W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXTP8N70X2MOSFET N-CH 700V 8A TO220-3 |
3,911 | 4.18 |
RFQ |
Datasheet |
Tube | Ultra X2 | Active | N-Channel | MOSFET (Metal Oxide) | 700 V | 8A (Tc) | 10V | 500mOhm @ 500mA, 10V | 5V @ 250µA | 12 nC @ 10 V | ±30V | 800 pF @ 10 V | - | 150W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IXTA160N04T2MOSFET N-CH 40V 160A TO263 |
3,180 | 4.26 |
RFQ |
Datasheet |
Tube | TrenchT2™ | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 160A (Tc) | 10V | 5mOhm @ 50A, 10V | 4V @ 250µA | 79 nC @ 10 V | ±20V | 4640 pF @ 25 V | - | 250W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
IXFT30N85XHVMOSFET N-CH 850V 30A TO268 |
2,968 | 13.82 |
RFQ |
Datasheet |
Tube | HiPerFET™, Ultra X | Active | N-Channel | MOSFET (Metal Oxide) | 850 V | 30A (Tc) | 10V | 220mOhm @ 500mA, 10V | 5.5V @ 2.5mA | 68 nC @ 10 V | ±30V | 2460 pF @ 25 V | - | 695W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IXFA4N85XMOSFET N-CH 850V 3.5A TO263 |
3,055 | 4.38 |
RFQ |
Datasheet |
Tube | HiPerFET™, Ultra X | Active | N-Channel | MOSFET (Metal Oxide) | 850 V | 3.5A (Tc) | 10V | 2.5Ohm @ 2A, 10V | 5.5V @ 250µA | 7 nC @ 10 V | ±30V | 247 pF @ 25 V | - | 150W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IXFP20N50P3MMOSFET N-CH 500V 8A TO220AB |
3,565 | 4.71 |
RFQ |
Datasheet |
Tube | HiPerFET™, Polar3™ | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 8A (Tc) | 10V | 300mOhm @ 10A, 10V | 5V @ 1.5mA | 36 nC @ 10 V | ±30V | 1800 pF @ 25 V | - | 58W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IXTP50N20PMMOSFET N-CH 200V 20A TO220 |
3,872 | 4.75 |
RFQ |
Datasheet |
Tube | Polar | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 20A (Tc) | 10V | 60mOhm @ 25A, 10V | 5V @ 250µA | 70 nC @ 10 V | ±20V | 2720 pF @ 25 V | - | 90W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
IXFP20N50P3MOSFET N-CH 500V 8A TO220AB |
3,063 | 5.19 |
RFQ |
Datasheet |
Tube | HiPerFET™, Polar3™ | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 8A (Tc) | 10V | 300mOhm @ 10A, 10V | 5V @ 1.5mA | 36 nC @ 10 V | ±30V | 1800 pF @ 25 V | - | 380W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXFP130N10T2MOSFET N-CH 100V 130A TO220AB |
3,889 | 5.27 |
RFQ |
Datasheet |
Tube | HiPerFET™, TrenchT2™ | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 130A (Tc) | 10V | 9.1mOhm @ 65A, 10V | 4.5V @ 1mA | 130 nC @ 10 V | ±20V | 6600 pF @ 25 V | - | 360W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
IXFP16N50P3MOSFET N-CH 500V 16A TO220AB |
2,338 | 5.40 |
RFQ |
Datasheet |
Tube | HiPerFET™, Polar3™ | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 16A (Tc) | 10V | 360mOhm @ 8A, 10V | 5V @ 2.5mA | 29 nC @ 10 V | ±30V | 1515 pF @ 25 V | - | 330W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IXTQ450P2MOSFET N-CH 500V 16A TO3P |
3,877 | 5.52 |
RFQ |
Datasheet |
Tube | PolarP2™ | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 16A (Tc) | 10V | 330mOhm @ 8A, 10V | 4.5V @ 250µA | 43 nC @ 10 V | ±30V | 2530 pF @ 25 V | - | 300W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXFP16N60P3MOSFET N-CH 600V 16A TO220 |
2,070 | 5.60 |
RFQ |
Datasheet |
Tube | HiPerFET™, Polar3™ | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 16A (Tc) | 10V | 470mOhm @ 500mA, 10V | 5V @ 1.5mA | 36 nC @ 10 V | ±30V | 1830 pF @ 25 V | - | 347W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXTA460P2MOSFET N-CH 500V 24A TO263 |
3,495 | 5.60 |
RFQ |
Datasheet |
Tube | PolarP2™ | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 24A (Tc) | 10V | 270mOhm @ 12A, 10V | 4.5V @ 250µA | 48 nC @ 10 V | ±30V | 2890 pF @ 25 V | - | 480W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IXTA24N65X2MOSFET N-CH 650V 24A TO263AA |
3,864 | 5.60 |
RFQ |
Datasheet |
Tube | Ultra X2 | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 24A (Tc) | 10V | 145mOhm @ 12A, 10V | 5V @ 250µA | 36 nC @ 10 V | ±30V | 2060 pF @ 25 V | - | 390W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IXFA110N15T2MOSFET N-CH 150V 110A TO263 |
3,398 | 6.69 |
RFQ |
Tube | HiPerFET™, TrenchT2™ | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 110A (Tc) | 10V | 13mOhm @ 55A, 10V | 4.5V @ 250µA | 150 nC @ 10 V | ±20V | 8600 pF @ 25 V | - | 480W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount | |
|
|
IXFQ28N60P3MOSFET N-CH 600V 28A TO3P |
2,777 | 6.70 |
RFQ |
Datasheet |
Tube | HiPerFET™, Polar3™ | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 28A (Tc) | 10V | 260mOhm @ 14A, 10V | 5V @ 2.5mA | 50 nC @ 10 V | ±30V | 3560 pF @ 25 V | - | 695W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IXTH12N70X2MOSFET N-CH 700V 12A TO247 |
2,693 | 6.85 |
RFQ |
Datasheet |
Tube | Ultra X2 | Active | N-Channel | MOSFET (Metal Oxide) | 700 V | 12A (Tc) | 10V | 300mOhm @ 6A, 10V | 4.5V @ 250µA | 19 nC @ 10 V | ±30V | 960 pF @ 25 V | - | 180W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXFQ34N50P3MOSFET N-CH 500V 34A TO3P |
2,397 | 8.38 |
RFQ |
Datasheet |
Tube | HiPerFET™, Polar3™ | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 34A (Tc) | 10V | 170mOhm @ 17A, 10V | 5V @ 4mA | 60 nC @ 10 V | ±30V | 3260 pF @ 25 V | - | 695W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
