| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APTM100UM60FAGMOSFET N-CH 1000V 129A SP6 |
3,566 | 383.21 |
RFQ |
Datasheet |
Bulk | - | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 129A (Tc) | 10V | 70mOhm @ 64.5A, 10V | 5V @ 15mA | 1116 nC @ 10 V | ±30V | 31100 pF @ 25 V | - | 2272W (Tc) | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
APTM120UM70DAGMOSFET N-CH 1200V 171A SP6 |
3,609 | 418.12 |
RFQ |
Datasheet |
Bulk | - | Active | N-Channel | MOSFET (Metal Oxide) | 1200 V | 171A (Tc) | 10V | 80mOhm @ 85.5A, 10V | 5V @ 30mA | 1650 nC @ 10 V | ±30V | 43500 pF @ 25 V | - | 5000W (Tc) | -40°C ~ 150°C (TJ) | Chassis Mount |
|

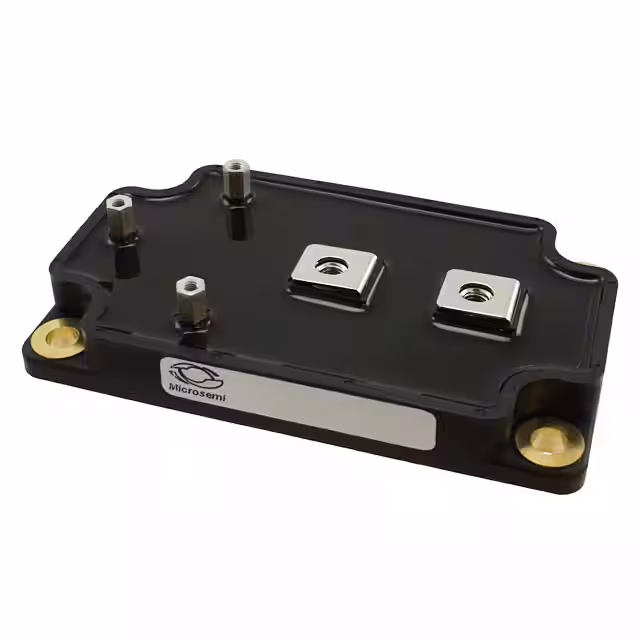

APTM120U10SCAVGMOSFET N-CH 1200V 116A SP6 |
3,348 | 425.56 |
RFQ |
Datasheet |
Bulk | POWER MOS 7® | Active | N-Channel | MOSFET (Metal Oxide) | 1200 V | 116A (Tc) | 10V | 120mOhm @ 58A, 10V | 5V @ 20mA | 1100 nC @ 10 V | ±30V | 28900 pF @ 25 V | - | 3290W (Tc) | -40°C ~ 150°C (TJ) | Chassis Mount |
|
APTM50UM09FAGMOSFET N-CH 500V 497A SP6 |
3,913 | 433.80 |
RFQ |
Datasheet |
Bulk | - | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 497A (Tc) | 10V | 10mOhm @ 248.5A, 10V | 5V @ 30mA | 1200 nC @ 10 V | ±30V | 63300 pF @ 25 V | - | 5000W (Tc) | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
APTM100UM65SCAVGMOSFET N-CH 1000V 145A SP6 |
3,523 | 456.36 |
RFQ |
Datasheet |
Bulk | POWER MOS 7® | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 145A (Tc) | 10V | 78mOhm @ 72.5A, 10V | 5V @ 20mA | 1068 nC @ 10 V | ±30V | 28500 pF @ 25 V | - | 3250W (Tc) | -40°C ~ 150°C (TJ) | Chassis Mount |
|
APTM100UM45FAGMOSFET N-CH 1000V 215A SP6 |
3,873 | 461.70 |
RFQ |
Datasheet |
Bulk | - | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 215A (Tc) | 10V | 52mOhm @ 107.5A, 10V | 5V @ 30mA | 1602 nC @ 10 V | ±30V | 42700 pF @ 25 V | - | 5000W (Tc) | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
APTM120UM70FAGMOSFET N-CH 1200V 171A SP6 |
2,795 | 490.38 |
RFQ |
Datasheet |
Bulk | - | Active | N-Channel | MOSFET (Metal Oxide) | 1200 V | 171A (Tc) | 10V | 80mOhm @ 85.5A, 10V | 5V @ 30mA | 1650 nC @ 10 V | ±30V | 43500 pF @ 25 V | - | 5000W (Tc) | -40°C ~ 150°C (TJ) | Chassis Mount |
|
MIC94030YM4TRMOSFET P-CH 16V 1A SOT143 |
3,038 | 1.00 |
RFQ |
Datasheet |
Bulk | - | Active | P-Channel | MOSFET (Metal Oxide) | 16 V | 1A (Ta) | - | 450mOhm @ 100mA, 10V | 1.4V @ 250µA | - | ±16V | 100 pF @ 12 V | - | 568mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
MIC94031BM4 TRMOSFET P-CH 16V 1A SOT-143 |
2,786 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | TinyFET® | Obsolete | P-Channel | MOSFET (Metal Oxide) | 16 V | 1A (Ta) | 2.7V, 10V | 450mOhm @ 100mA, 10V | 1.4V @ 250µA | - | 16V | 100 pF @ 12 V | - | 568mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
MIC94031YM4-TRMOSFET P-CH 16V 1A SOT-143 |
3,811 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TinyFET® | Obsolete | P-Channel | MOSFET (Metal Oxide) | 16 V | 1A (Ta) | 2.7V, 10V | 450mOhm @ 100mA, 10V | 1.4V @ 250µA | - | 16V | 100 pF @ 12 V | - | 568mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
MIC94030BM4 TRMOSFET P-CH 16V 1A SOT-143 |
3,495 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | TinyFET® | Obsolete | P-Channel | MOSFET (Metal Oxide) | 16 V | 1A (Ta) | 2.7V, 10V | 450mOhm @ 100mA, 10V | 1.4V @ 250µA | - | 16V | 100 pF @ 12 V | - | 568mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
MIC94050BM4 TRMOSFET P-CH 6V 1.8A SOT-143 |
2,452 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | SymFET™ | Obsolete | P-Channel | MOSFET (Metal Oxide) | 6 V | 1.8A (Ta) | 1.8V, 4.5V | 160mOhm @ 100mA, 4.5V | 1.2V @ 250µA | - | 6V | 600 pF @ 5.5 V | - | 568mW (Ta) | -40°C ~ 150°C (TJ) | Surface Mount |
|
|
MIC94051BM4 TRMOSFET P-CH 6V 1.8A SOT143 |
3,349 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | SymFET™ | Obsolete | P-Channel | MOSFET (Metal Oxide) | 6 V | 1.8A (Ta) | 1.8V, 4.5V | 160mOhm @ 100mA, 4.5V | 1.2V @ 250µA | - | 6V | 600 pF @ 5.5 V | - | 568mW (Ta) | -40°C ~ 150°C (TJ) | Surface Mount |
|
MIC94052BC6-TRMOSFET P-CH 6V 2A SC70-6 |
2,373 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Discontinued at Mosen | P-Channel | MOSFET (Metal Oxide) | 6 V | 2A (Ta) | 1.8V, 4.5V | 84mOhm @ 100mA, 4.5V | 1.2V @ 250µA | - | 6V | - | - | 270mW (Ta) | -40°C ~ 150°C (TJ) | Surface Mount |
|
|
MIC94053BC6-TRMOSFET P-CH 6V 2A SC70-6 |
3,816 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Discontinued at Mosen | P-Channel | MOSFET (Metal Oxide) | 6 V | 2A (Ta) | 1.8V, 4.5V | 84mOhm @ 100mA, 4.5V | 1.2V @ 250µA | - | 6V | - | - | 270mW (Ta) | -40°C ~ 150°C (TJ) | Surface Mount |
|
APL1001JMOSFET N-CH 1000V 18A ISOTOP |
2,002 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 1000 V | 18A (Tc) | 10V | 600mOhm @ 500mA, 10V | 4V @ 2.5mA | - | ±30V | 7200 pF @ 25 V | - | 520W (Tc) | -55°C ~ 150°C (TJ) | Chassis Mount |
|
APT1003RKLLGMOSFET N-CH 1000V 4A TO220 |
3,259 | 0.00 |
RFQ |
Datasheet |
Tube | POWER MOS 7® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 1000 V | 4A (Tc) | 10V | 3Ohm @ 2A, 10V | 5V @ 1mA | 34 nC @ 10 V | ±30V | 694 pF @ 25 V | - | 139W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
APT4F120KMOSFET N-CH 1200V 4A TO220 |
3,307 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 1200 V | 4A (Tc) | 10V | 4.6Ohm @ 2A, 10V | 5V @ 500µA | 43 nC @ 10 V | ±30V | 1385 pF @ 25 V | - | 225W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
APT4M120KMOSFET N-CH 1200V 5A TO220 |
2,485 | 0.00 |
RFQ |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 1200 V | 5A (Tc) | 10V | 4Ohm @ 2A, 10V | 5V @ 1mA | 43 nC @ 10 V | ±30V | 1385 pF @ 25 V | - | 225W (Tc) | -55°C ~ 150°C (TJ) | Through Hole | |
|
APT5010JFLLMOSFET N-CH 500V 41A ISOTOP |
2,505 | 0.00 |
RFQ |
Datasheet |
Tube | POWER MOS 7® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 41A (Tc) | - | 100mOhm @ 20.5A, 10V | 5V @ 2.5mA | 95 nC @ 10 V | - | 4360 pF @ 25 V | - | - | - | Chassis Mount |
