| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APL602LGMOSFET N-CH 600V 49A TO264 |
2,930 | 61.00 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 49A (Tc) | 12V | 125mOhm @ 24.5A, 12V | 4V @ 2.5mA | - | ±30V | 9000 pF @ 25 V | - | 730W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
APT80F60JMOSFET N-CH 600V 84A ISOTOP |
3,411 | 64.42 |
RFQ |
Datasheet |
Tube | POWER MOS 8™ | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 84A (Tc) | 10V | 55mOhm @ 60A, 10V | 5V @ 2.5mA | 598 nC @ 10 V | ±30V | 23994 pF @ 25 V | - | 961W (Tc) | -55°C ~ 150°C (TJ) | Chassis Mount |
|
|
APT60M75JFLLMOSFET N-CH 600V 58A ISOTOP |
3,093 | 65.87 |
RFQ |
Datasheet |
Tube | POWER MOS 7® | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 58A (Tc) | 10V | 75mOhm @ 29A, 10V | 5V @ 5mA | 195 nC @ 10 V | ±30V | 8930 pF @ 25 V | - | 595W (Tc) | -55°C ~ 150°C (TJ) | Chassis Mount |
|
|
APT100F50JMOSFET N-CH 500V 103A ISOTOP |
2,073 | 66.74 |
RFQ |
Datasheet |
Tube | POWER MOS 8™ | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 103A (Tc) | 10V | 36mOhm @ 75A, 10V | 5V @ 5mA | 620 nC @ 10 V | ±30V | 24600 pF @ 25 V | - | 960W (Tc) | -55°C ~ 150°C (TJ) | Chassis Mount |
|
APT50M50JVRMOSFET N-CH 500V 77A ISOTOP |
2,353 | 66.93 |
RFQ |
Datasheet |
Tube | POWER MOS V® | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 77A (Tc) | - | 50mOhm @ 500mA, 10V | 4V @ 5mA | 1000 nC @ 10 V | - | 19600 pF @ 25 V | - | - | - | Chassis Mount |
|
|
APT34M120JMOSFET N-CH 1200V 35A SOT227 |
3,547 | 67.43 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 1200 V | 35A (Tc) | 10V | 300mOhm @ 25A, 10V | 5V @ 2.5mA | 560 nC @ 10 V | ±30V | 18200 pF @ 25 V | - | 960W (Tc) | -55°C ~ 150°C (TJ) | Chassis Mount |
|
|
APT45M100JMOSFET N-CH 1000V 45A SOT227 |
2,677 | 67.50 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 45A (Tc) | 10V | 180mOhm @ 33A, 10V | 5V @ 2.5mA | 570 nC @ 10 V | ±30V | 18500 pF @ 25 V | - | 960W (Tc) | -55°C ~ 150°C (TJ) | Chassis Mount |
|
|
APT10M07JVFRMOSFET N-CH 100V 225A ISOTOP |
2,745 | 68.01 |
RFQ |
Datasheet |
Tube | POWER MOS V® | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 225A (Tc) | - | 7mOhm @ 500mA, 10V | 4V @ 5mA | 1050 nC @ 10 V | - | 21600 pF @ 25 V | - | - | - | Chassis Mount |
|
|
APT10026L2LLGMOSFET N-CH 1000V 38A 264 MAX |
2,221 | 69.50 |
RFQ |
Datasheet |
Tube | POWER MOS 7® | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 38A (Tc) | - | 260mOhm @ 19A, 10V | 5V @ 5mA | 267 nC @ 10 V | - | 7114 pF @ 25 V | - | - | - | Through Hole |
|
|
APT60M75JLLMOSFET N-CH 600V 58A ISOTOP |
2,982 | 69.85 |
RFQ |
Datasheet |
Tube | POWER MOS 7® | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 58A (Tc) | 10V | 75mOhm @ 29A, 10V | 5V @ 5mA | 195 nC @ 10 V | ±30V | 8930 pF @ 25 V | - | 595W (Tc) | -55°C ~ 150°C (TJ) | Chassis Mount |
|
|
APT12057JFLLMOSFET N-CH 1200V 19A ISOTOP |
2,992 | 69.87 |
RFQ |
Datasheet |
Tube | POWER MOS 7® | Active | N-Channel | MOSFET (Metal Oxide) | 1200 V | 19A (Tc) | - | 570mOhm @ 9.5A, 10V | 5V @ 2.5mA | 185 nC @ 10 V | - | 5155 pF @ 25 V | - | - | - | Chassis Mount |
|
APTM120DA30T1GMOSFET N-CH 1200V 31A SP1 |
3,101 | 70.11 |
RFQ |
Datasheet |
Bulk | - | Active | N-Channel | MOSFET (Metal Oxide) | 1200 V | 31A (Tc) | 10V | 360mOhm @ 25A, 10V | 5V @ 2.5mA | 560 nC @ 10 V | ±30V | 14560 pF @ 25 V | - | 657W (Tc) | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
APT20M11JLLMOSFET N-CH 200V 176A ISOTOP |
3,562 | 70.74 |
RFQ |
Datasheet |
Tube | POWER MOS 7® | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 176A (Tc) | - | 11mOhm @ 88A, 10V | 5V @ 5mA | 180 nC @ 10 V | - | 10320 pF @ 25 V | - | - | - | Chassis Mount |
|

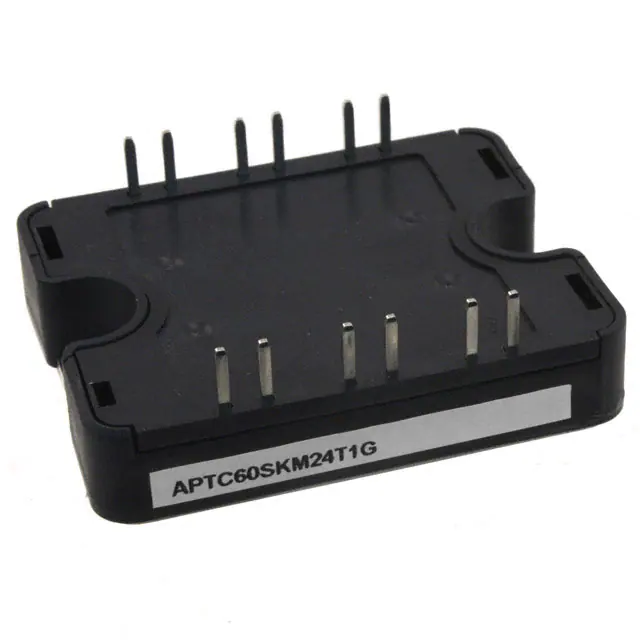

APTC60SKM24T1GMOSFET N-CH 600V 95A SP1 |
3,848 | 71.49 |
RFQ |
Datasheet |
Bulk | CoolMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 95A (Tc) | 10V | 24mOhm @ 47.5A, 10V | 3.9V @ 5mA | 300 nC @ 10 V | ±20V | 14400 pF @ 25 V | - | 462W (Tc) | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
APT20M11JVRMOSFET N-CH 200V 175A ISOTOP |
2,556 | 72.34 |
RFQ |
Datasheet |
Tube | POWER MOS V® | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 175A (Tc) | 10V | 11mOhm @ 500mA, 10V | 4V @ 5mA | 180 nC @ 10 V | ±30V | 21600 pF @ 25 V | - | 700W (Tc) | -55°C ~ 150°C (TJ) | Chassis Mount |
|
|
APT30M19JVRMOSFET N-CH 300V 130A ISOTOP |
3,235 | 74.51 |
RFQ |
Datasheet |
Tube | POWER MOS V® | Active | N-Channel | MOSFET (Metal Oxide) | 300 V | 130A (Tc) | 10V | 19mOhm @ 500mA, 10V | 4V @ 5mA | 975 nC @ 10 V | ±30V | 21600 pF @ 25 V | - | 700W (Tc) | -55°C ~ 150°C (TJ) | Chassis Mount |
|
|
APT10026L2FLLGMOSFET N-CH 1000V 38A 264 MAX |
2,506 | 77.77 |
RFQ |
Datasheet |
Tube | POWER MOS 7® | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 38A (Tc) | - | 260mOhm @ 19A, 10V | 5V @ 5mA | 267 nC @ 10 V | - | 7114 pF @ 25 V | - | - | - | Through Hole |
|
|
APT20M11JFLLMOSFET N-CH 200V 176A ISOTOP |
2,824 | 79.35 |
RFQ |
Datasheet |
Tube | POWER MOS 7® | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 176A (Tc) | - | 11mOhm @ 88A, 10V | 5V @ 5mA | 180 nC @ 10 V | - | 10320 pF @ 25 V | - | - | - | Chassis Mount |
|
|
APT8015JVRMOSFET N-CH 800V 44A ISOTOP |
2,604 | 80.36 |
RFQ |
Datasheet |
Tube | POWER MOS V® | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 44A (Tc) | - | 150mOhm @ 500mA, 10V | 4V @ 5mA | 285 nC @ 10 V | - | 17650 pF @ 25 V | - | - | - | Chassis Mount |
|
|
APT20M11JVFRMOSFET N-CH 200V 175A ISOTOP |
2,547 | 82.03 |
RFQ |
Datasheet |
Tube | POWER MOS V® | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 175A (Tc) | 10V | 11mOhm @ 500mA, 10V | 4V @ 5mA | 180 nC @ 10 V | ±30V | 21600 pF @ 25 V | - | 700W (Tc) | -55°C ~ 150°C (TJ) | Chassis Mount |
