| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APT60M75JVRMOSFET N-CH 600V 62A ISOTOP |
2,922 | 82.35 |
RFQ |
Datasheet |
Tube | POWER MOS V® | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 62A (Tc) | 10V | 75mOhm @ 500mA, 10V | 4V @ 5mA | 1050 nC @ 10 V | ±30V | 19800 pF @ 25 V | - | 700W (Tc) | -55°C ~ 150°C (TJ) | Chassis Mount |
|

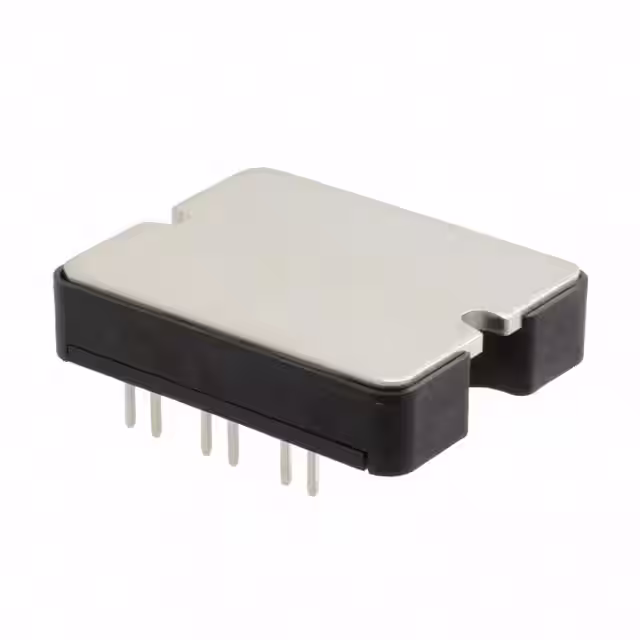

APTM120DA30CT1GMOSFET N-CH 1200V 31A SP1 |
2,969 | 84.28 |
RFQ |
Datasheet |
Bulk | POWER MOS 8™ | Active | N-Channel | MOSFET (Metal Oxide) | 1200 V | 31A (Tc) | 10V | 360mOhm @ 25A, 10V | 5V @ 2.5mA | 560 nC @ 10 V | ±30V | 14560 pF @ 25 V | - | 657W (Tc) | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
APT30M19JVFRMOSFET N-CH 300V 130A ISOTOP |
2,079 | 84.50 |
RFQ |
Datasheet |
Tube | POWER MOS V® | Active | N-Channel | MOSFET (Metal Oxide) | 300 V | 130A (Tc) | 10V | 19mOhm @ 500mA, 10V | 4V @ 5mA | 975 nC @ 10 V | ±30V | 21600 pF @ 25 V | - | 700W (Tc) | -55°C ~ 150°C (TJ) | Chassis Mount |
|
APT8015JVFRMOSFET N-CH 800V 44A ISOTOP |
3,487 | 85.15 |
RFQ |
Datasheet |
Tube | POWER MOS V® | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 44A (Tc) | - | 150mOhm @ 500mA, 10V | 4V @ 5mA | 285 nC @ 10 V | - | 17650 pF @ 25 V | - | - | - | Chassis Mount |
|
|
APT10025JVRMOSFET N-CH 1000V 34A ISOTOP |
3,198 | 86.50 |
RFQ |
Datasheet |
Tube | POWER MOS V® | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 34A (Tc) | - | 250mOhm @ 500mA, 10V | 4V @ 5mA | 990 nC @ 10 V | - | 18000 pF @ 25 V | - | - | - | Chassis Mount |
|
|
APL602JMOSFET N-CH 600V 43A ISOTOP |
3,531 | 89.29 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 43A (Tc) | 12V | 125mOhm @ 21.5A, 12V | 4V @ 2.5mA | - | ±30V | 9000 pF @ 25 V | - | 565W (Tc) | -55°C ~ 150°C (TJ) | Chassis Mount |
|
|
APT10025JVFRMOSFET N-CH 1000V 34A ISOTOP |
2,059 | 91.71 |
RFQ |
Datasheet |
Tube | POWER MOS V® | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 34A (Tc) | - | 250mOhm @ 500mA, 10V | 4V @ 5mA | 990 nC @ 10 V | - | 18000 pF @ 25 V | - | - | - | Chassis Mount |
|
APTC60SKM24CT1GMOSFET N-CH 600V 95A SP1 |
3,704 | 91.96 |
RFQ |
Datasheet |
Bulk | CoolMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 95A (Tc) | 10V | 24mOhm @ 47.5A, 10V | 3.9V @ 5mA | 300 nC @ 10 V | ±20V | 14400 pF @ 25 V | Super Junction | 462W (Tc) | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
APT8011JLLMOSFET N-CH 800V 51A ISOTOP |
2,343 | 92.39 |
RFQ |
Datasheet |
Tube | POWER MOS 7® | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 51A (Tc) | - | 110mOhm @ 25.5A, 10V | 5V @ 5mA | 650 nC @ 10 V | - | 9480 pF @ 25 V | - | - | - | Chassis Mount |
|
|
APT60M60JLLMOSFET N-CH 600V 70A ISOTOP |
2,602 | 94.75 |
RFQ |
Datasheet |
Tube | POWER MOS 7® | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 70A (Tc) | 10V | 60mOhm @ 35A, 10V | 5V @ 5mA | 289 nC @ 10 V | ±30V | 12630 pF @ 25 V | - | 694W (Tc) | -55°C ~ 150°C (TJ) | Chassis Mount |
|
|
APT50M38JFLLMOSFET N-CH 500V 88A ISOTOP |
3,980 | 94.95 |
RFQ |
Datasheet |
Tube | POWER MOS 7® | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 88A (Tc) | - | 38mOhm @ 44A, 10V | 5V @ 5mA | 270 nC @ 10 V | - | 12000 pF @ 25 V | - | - | - | Chassis Mount |
|
|
APT10026JLLMOSFET N-CH 1000V 30A ISOTOP |
2,097 | 97.46 |
RFQ |
Datasheet |
Tube | POWER MOS 7® | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 30A (Tc) | - | 260mOhm @ 15A, 10V | 5V @ 5mA | 267 nC @ 10 V | - | 7114 pF @ 25 V | - | - | - | Chassis Mount |
|
|
APT8011JFLLMOSFET N-CH 800V 51A ISOTOP |
2,543 | 97.94 |
RFQ |
Datasheet |
Tube | POWER MOS 7® | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 51A (Tc) | - | 125mOhm @ 25.5A, 10V | 5V @ 5mA | 650 nC @ 10 V | - | 9480 pF @ 25 V | - | - | - | Chassis Mount |
|
|
APT10021JLLMOSFET N-CH 1000V 37A ISOTOP |
2,424 | 99.23 |
RFQ |
Datasheet |
Tube | POWER MOS 7® | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 37A (Tc) | 10V | 210mOhm @ 18.5A, 10V | 5V @ 5mA | 395 nC @ 10 V | ±30V | 9750 pF @ 25 V | - | 694W (Tc) | -55°C ~ 150°C (TJ) | Chassis Mount |
|
|
APT10026JFLLMOSFET N-CH 1000V 30A ISOTOP |
2,492 | 99.41 |
RFQ |
Datasheet |
Tube | POWER MOS 7® | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 30A (Tc) | - | 260mOhm @ 15A, 10V | 5V @ 5mA | 267 nC @ 10 V | - | 7114 pF @ 25 V | - | - | - | Chassis Mount |
|
|
APT12031JFLLMOSFET N-CH 1200V 30A ISOTOP |
2,458 | 122.89 |
RFQ |
Datasheet |
Tube | POWER MOS 7® | Active | N-Channel | MOSFET (Metal Oxide) | 1200 V | 30A (Tc) | 10V | 330mOhm @ 15A, 10V | 5V @ 5mA | 365 nC @ 10 V | ±30V | 9480 pF @ 25 V | - | 690AW (Tc) | -55°C ~ 150°C (TJ) | Chassis Mount |
|
|
APTM100DA18TGMOSFET N-CH 1000V 43A SP4 |
2,732 | 124.01 |
RFQ |
Datasheet |
Bulk | - | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 43A (Tc) | 10V | 210mOhm @ 21.5A, 10V | 5V @ 5mA | 372 nC @ 10 V | ±30V | 10400 pF @ 25 V | - | 780W (Tc) | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
APTM20SKM08TGMOSFET N-CH 200V 208A SP4 |
2,283 | 125.37 |
RFQ |
Datasheet |
Bulk | - | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 208A (Tc) | 10V | 10mOhm @ 104A, 10V | 5V @ 5mA | 280 nC @ 10 V | ±30V | 14400 pF @ 25 V | - | 781W (Tc) | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
APTM20DAM08TGMOSFET N-CH 200V 208A SP4 |
3,222 | 125.38 |
RFQ |
Datasheet |
Bulk | - | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 208A (Tc) | 10V | 10mOhm @ 104A, 10V | 5V @ 5mA | 280 nC @ 10 V | ±30V | 14400 pF @ 25 V | - | 781W (Tc) | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
APTM10DAM05TGMOSFET N-CH 100V 278A SP4 |
3,258 | 127.82 |
RFQ |
Datasheet |
Bulk | - | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 278A (Tc) | 10V | 5mOhm @ 125A, 10V | 4V @ 5mA | 700 nC @ 10 V | ±30V | 20000 pF @ 25 V | - | 780W (Tc) | -40°C ~ 150°C (TJ) | Chassis Mount |
