| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IRFL9014PBFMOSFET P-CH 60V 1.8A SOT223 |
2,455 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 60 V | 1.8A (Tc) | 10V | 500mOhm @ 1.1A, 10V | 4V @ 250µA | 12 nC @ 10 V | ±20V | 270 pF @ 25 V | - | 2W (Ta), 3.1W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IRFL9110PBFMOSFET P-CH 100V 1.1A SOT223 |
3,154 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 100 V | 1.1A (Tc) | 10V | 1.2Ohm @ 660mA, 10V | 4V @ 250µA | 8.7 nC @ 10 V | ±20V | 200 pF @ 25 V | - | 2W (Ta), 3.1W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
IRFR020PBFMOSFET N-CH 60V 14A DPAK |
2,402 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 14A (Tc) | 10V | 100mOhm @ 8.4A, 10V | 4V @ 250µA | 25 nC @ 10 V | ±20V | 640 pF @ 25 V | - | 2.5W (Ta), 42W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IRFR110TRRPBFMOSFET N-CH 100V 4.3A DPAK |
3,549 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 4.3A (Tc) | 10V | 540mOhm @ 2.6A, 10V | 4V @ 250µA | 8.3 nC @ 10 V | ±20V | 180 pF @ 25 V | - | 2.5W (Ta), 25W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IRFR310TRRPBFMOSFET N-CH 400V 1.7A DPAK |
3,795 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 400 V | 1.7A (Tc) | 10V | 3.6Ohm @ 1A, 10V | 4V @ 250µA | 12 nC @ 10 V | ±20V | 170 pF @ 25 V | - | 2.5W (Ta), 25W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IRFR9210TRLPBFMOSFET P-CH 200V 1.9A DPAK |
2,685 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | P-Channel | MOSFET (Metal Oxide) | 200 V | 1.9A (Tc) | 10V | 3Ohm @ 1.1A, 10V | 4V @ 250µA | 8.9 nC @ 10 V | ±20V | 170 pF @ 25 V | - | 2.5W (Ta), 25W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IRLL014PBFMOSFET N-CH 60V 2.7A SOT223 |
2,819 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 2.7A (Tc) | 4V, 5V | 200mOhm @ 1.6A, 5V | 2V @ 250µA | 8.4 nC @ 5 V | ±10V | 400 pF @ 25 V | - | 2W (Ta), 3.1W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IRLL110PBFMOSFET N-CH 100V 1.5A SOT223 |
3,867 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 1.5A (Tc) | 4V, 5V | 540mOhm @ 900mA, 5V | 2V @ 250µA | 6.1 nC @ 5 V | ±10V | 250 pF @ 25 V | - | 2W (Ta), 3.1W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IRLR110TRLPBFMOSFET N-CH 100V 4.3A DPAK |
3,136 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 4.3A (Tc) | 4V, 5V | 540mOhm @ 2.6A, 5V | 2V @ 250µA | 6.1 nC @ 5 V | ±10V | 250 pF @ 25 V | - | 2.5W (Ta), 25W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
SUB75P03-07-E3MOSFET P-CH 30V 75A TO263 |
3,529 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 75A (Tc) | 4.5V, 10V | 7mOhm @ 30A, 10V | 3V @ 250µA | 240 nC @ 10 V | ±20V | 9000 pF @ 25 V | - | 3.75W (Ta), 187W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
SUM110N04-2M3L-E3MOSFET N-CH 40V 110A TO263 |
2,798 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TrenchFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 110A (Tc) | 4.5V, 10V | 2.3mOhm @ 30A, 10V | 3V @ 250µA | 360 nC @ 10 V | ±20V | 13600 pF @ 25 V | - | 3.75W (Ta), 375W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
SUM110N06-3M4L-E3MOSFET N-CH 60V 110A TO263 |
3,403 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TrenchFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 110A (Tc) | 4.5V, 10V | 3.4mOhm @ 30A, 10V | 3V @ 250µA | 300 nC @ 10 V | ±20V | 12900 pF @ 25 V | - | 3.75W (Ta), 375W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
SUM75N06-09L-E3MOSFET N-CH 60V 90A D2PAK |
2,620 | 0.00 |
RFQ |
Datasheet |
Cut Tape (CT) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 90A (Tc) | - | 9.3mOhm @ 30A, 10V | 3V @ 250µA | 75 nC @ 10 V | - | 2400 pF @ 25 V | - | - | - | Surface Mount |
,TO-226_straightlead.jpg)
|
BS250KL-TR1-E3MOSFET P-CH 60V 270MA TO92-18RM |
2,891 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TrenchFET® | Obsolete | P-Channel | MOSFET (Metal Oxide) | 60 V | 270mA (Ta) | 4.5V, 10V | 6Ohm @ 500mA, 10V | 3V @ 250µA | 3 nC @ 15 V | ±20V | - | - | 800mW (Ta) | -55°C ~ 150°C (TJ) | Through Hole |
|
SI1012R-T1-E3MOSFET N-CH 20V 500MA SC75A |
2,595 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TrenchFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 500mA (Ta) | 1.8V, 4.5V | 700mOhm @ 600mA, 4.5V | 900mV @ 250µA | 0.75 nC @ 4.5 V | ±6V | - | - | 150mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|

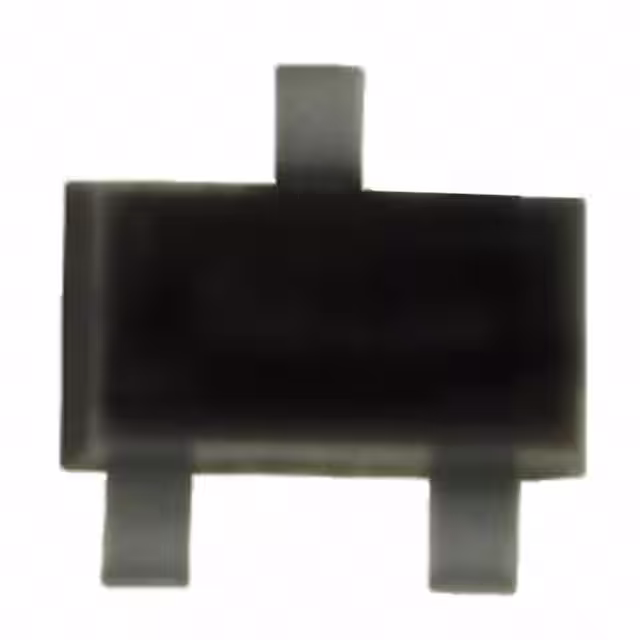

SI1012X-T1-E3MOSFET N-CH 20V 500MA SC89-3 |
2,301 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TrenchFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 500mA (Ta) | 1.8V, 4.5V | 700mOhm @ 600mA, 4.5V | 900mV @ 250µA | 0.75 nC @ 4.5 V | ±6V | - | - | 250mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SI1013R-T1-E3MOSFET P-CH 20V 350MA SC75A |
3,720 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TrenchFET® | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 350mA (Ta) | 1.8V, 4.5V | 1.2Ohm @ 350mA, 4.5V | 450mV @ 250µA (Min) | 1.5 nC @ 4.5 V | ±6V | - | - | 150mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
SI1013X-T1-E3MOSFET P-CH 20V 350MA SC89-3 |
3,700 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TrenchFET® | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 350mA (Ta) | 1.8V, 4.5V | 1.2Ohm @ 350mA, 4.5V | 450mV @ 250µA (Min) | 1.5 nC @ 4.5 V | ±6V | - | - | 250mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SI1021R-T1-E3MOSFET P-CH 60V 190MA SC75A |
3,337 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TrenchFET® | Obsolete | P-Channel | MOSFET (Metal Oxide) | 60 V | 190mA (Ta) | 4.5V, 10V | 4Ohm @ 500mA, 10V | 3V @ 250µA | 1.7 nC @ 15 V | ±20V | 23 pF @ 25 V | - | 250mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SI1022R-T1-E3MOSFET N-CH 60V 330MA SC75A |
3,584 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TrenchFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 330mA (Ta) | 4.5V, 10V | 1.25Ohm @ 500mA, 10V | 2.5V @ 250µA | 0.6 nC @ 4.5 V | ±20V | 30 pF @ 25 V | - | 250mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
