| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IRFIB7N50LPBFMOSFET N-CH 500V 6.8A TO220-3 |
2,684 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 6.8A (Tc) | 10V | 380mOhm @ 4.1A, 10V | 5V @ 250µA | 92 nC @ 10 V | ±30V | 2220 pF @ 25 V | - | 46W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IRFIB5N50LPBFMOSFET N-CH 500V 4.7A TO220-3 |
3,668 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 4.7A (Tc) | 10V | 800mOhm @ 2.4A, 10V | 5V @ 250µA | 45 nC @ 10 V | ±30V | 1000 pF @ 25 V | - | 42W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IRFP254NPBFMOSFET N-CH 250V 23A TO247-3 |
3,369 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 250 V | 23A (Tc) | 10V | 125mOhm @ 14A, 10V | 4V @ 250µA | 100 nC @ 10 V | ±20V | 2040 pF @ 25 V | - | 220W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
IRFP450NPBFMOSFET N-CH 500V 14A TO247-3 |
3,347 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 14A (Tc) | 10V | 370mOhm @ 8.4A, 10V | 5V @ 250µA | 77 nC @ 10 V | ±30V | 2260 pF @ 25 V | - | 200W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IRFB16N60LPBFMOSFET N-CH 600V 16A TO220AB |
3,772 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 16A (Tc) | 10V | 460mOhm @ 9A, 10V | 5V @ 250µA | 100 nC @ 10 V | ±30V | 2720 pF @ 25 V | - | 310W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IRFP264NPBFMOSFET N-CH 250V 44A TO247-3 |
2,821 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 250 V | 44A (Tc) | 10V | 60mOhm @ 25A, 10V | 4V @ 250µA | 210 nC @ 10 V | ±20V | 3860 pF @ 25 V | - | 380W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
IRFP15N60LPBFMOSFET N-CH 600V 15A TO247-3 |
2,790 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 15A (Tc) | 10V | 460mOhm @ 9A, 10V | 5V @ 250µA | 100 nC @ 10 V | ±30V | 2720 pF @ 25 V | - | 280W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IRFP22N60C3PBFMOSFET N-CH 650V 22A TO247-3 |
3,484 | 0.00 |
RFQ |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 22A (Ta) | - | - | - | - | - | - | - | - | - | Through Hole | |
|

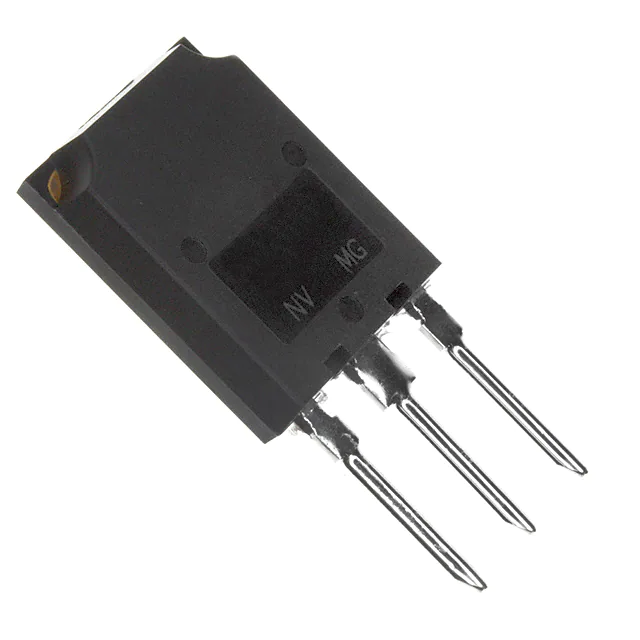

IRFPS35N50LPBFMOSFET N-CH 500V 34A SUPER247 |
3,053 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 34A (Tc) | 10V | 145mOhm @ 20A, 10V | 5V @ 250µA | 230 nC @ 10 V | ±30V | 5580 pF @ 25 V | - | 450W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IRFPS30N60KPBFMOSFET N-CH 600V 30A SUPER247 |
2,812 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 30A (Tc) | 10V | 190mOhm @ 18A, 10V | 5V @ 250µA | 220 nC @ 10 V | ±30V | 5870 pF @ 25 V | - | 450W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IRFPS29N60LPBFMOSFET N-CH 600V 29A SUPER247 |
2,900 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 29A (Tc) | 10V | 210mOhm @ 17A, 10V | 5V @ 250µA | 220 nC @ 10 V | ±30V | 6160 pF @ 25 V | - | 480W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IRFPS38N60LPBFMOSFET N-CH 600V 38A SUPER247 |
2,065 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 38A (Tc) | 10V | 150mOhm @ 23A, 10V | 5V @ 250µA | 320 nC @ 10 V | ±30V | 7990 pF @ 25 V | - | 540W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IRFPS40N60KPBFMOSFET N-CH 600V 40A SUPER247 |
3,625 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 40A (Tc) | 10V | 130mOhm @ 24A, 10V | 5V @ 250µA | 330 nC @ 10 V | ±30V | 7970 pF @ 25 V | - | 570W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IRFP044PBFMOSFET N-CH 60V 57A TO247-3 |
2,771 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 57A (Tc) | 10V | 28mOhm @ 34A, 10V | 4V @ 250µA | 95 nC @ 10 V | ±20V | 2500 pF @ 25 V | - | 180W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
IRFP344PBFMOSFET N-CH 450V 9.5A TO247-3 |
2,067 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 450 V | 9.5A (Tc) | 10V | 630mOhm @ 5.7A, 10V | 4V @ 250µA | 80 nC @ 10 V | ±20V | 1400 pF @ 25 V | - | 150W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IRFPS37N50APBFMOSFET N-CH 500V 36A SUPER247 |
3,910 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 36A (Tc) | 10V | 130mOhm @ 22A, 10V | 4V @ 250µA | 180 nC @ 10 V | ±30V | 5579 pF @ 25 V | - | 446W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IRFPS40N50LPBFMOSFET N-CH 500V 46A SUPER247 |
3,697 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 46A (Tc) | 10V | 100mOhm @ 28A, 10V | 5V @ 250µA | 380 nC @ 10 V | ±30V | 8110 pF @ 25 V | - | 540W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IRFI624GPBFMOSFET N-CH 250V 3.4A TO220-3 |
2,084 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 250 V | 3.4A (Tc) | 10V | 1.1Ohm @ 2A, 10V | 4V @ 250µA | 14 nC @ 10 V | ±20V | 260 pF @ 25 V | - | 30W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IRLI620GPBFMOSFET N-CH 200V 4A TO220-3 |
2,439 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 200 V | 4A (Tc) | 4V, 5V | 800mOhm @ 2.4A, 5V | 2V @ 250µA | 16 nC @ 10 V | ±10V | 360 pF @ 25 V | - | 30W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IRF737LCPBFMOSFET N-CH 300V 6.1A TO220AB |
3,966 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 300 V | 6.1A (Tc) | 10V | 750mOhm @ 3.7A, 10V | 4V @ 250µA | 17 nC @ 10 V | ±30V | 430 pF @ 25 V | - | 74W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
