| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IRF644NPBFMOSFET N-CH 250V 14A TO220AB |
3,851 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 250 V | 14A (Tc) | 10V | 240mOhm @ 8.4A, 10V | 4V @ 250µA | 54 nC @ 10 V | ±20V | 1060 pF @ 25 V | - | 150W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
IRF644NSPBFMOSFET N-CH 250V 14A D2PAK |
2,155 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 250 V | 14A (Tc) | 10V | 240mOhm @ 8.4A, 10V | 4V @ 250µA | 54 nC @ 10 V | ±20V | 1060 pF @ 25 V | - | 150W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
IRF634SPBFMOSFET N-CH 250V 8.1A D2PAK |
2,696 | 0.00 |
RFQ |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 250 V | 8.1A (Tc) | 10V | 450mOhm @ 5.1A, 10V | 4V @ 250µA | 41 nC @ 10 V | ±20V | 770 pF @ 25 V | - | 3.1W (Ta), 74W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount | |
|
|
IRFZ30PBFMOSFET N-CH 50V 30A TO220AB |
3,827 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 50 V | 30A (Tc) | 10V | 50mOhm @ 16A, 10V | 4V @ 250µA | 30 nC @ 10 V | ±20V | 1600 pF @ 25 V | - | 74W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IRF744PBFMOSFET N-CH 450V 8.8A TO220AB |
3,240 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 450 V | 8.8A (Tc) | 10V | 630mOhm @ 5.3A, 10V | 4V @ 250µA | 80 nC @ 10 V | ±20V | 1400 pF @ 25 V | - | 125W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IRCZ24PBFMOSFET N-CH 55V 17A TO220-5 |
2,466 | 0.00 |
RFQ |
Datasheet |
Tube | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 17A (Tc) | 10V | 100mOhm @ 10A, 10V | 4V @ 250µA | 24 nC @ 10 V | ±20V | 720 pF @ 25 V | Current Sensing | 60W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
IRFB9N30APBFMOSFET N-CH 300V 9.3A TO220AB |
2,944 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 300 V | 9.3A (Tc) | 10V | 450mOhm @ 5.6A, 10V | 4V @ 250µA | 33 nC @ 10 V | ±30V | 920 pF @ 25 V | - | 96W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IRC530PBFMOSFET N-CH 100V 14A TO220-5 |
3,657 | 0.00 |
RFQ |
Datasheet |
Tube | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 14A (Tc) | 10V | 160mOhm @ 8.4A, 10V | 4V @ 250µA | 26 nC @ 10 V | ±20V | 700 pF @ 25 V | Current Sensing | 88W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
IRCZ34PBFMOSFET N-CH 60V 30A TO220-5 |
2,921 | 0.00 |
RFQ |
Datasheet |
Tube | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 30A (Tc) | 10V | 50mOhm @ 18A, 10V | 4V @ 250µA | 46 nC @ 10 V | ±20V | 1300 pF @ 25 V | Current Sensing | 88W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
IRFBC30LPBFMOSFET N-CH 600V 3.6A TO262-3 |
3,690 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 3.6A (Tc) | 10V | 2.2Ohm @ 2.2A, 10V | 4V @ 250µA | 31 nC @ 10 V | ±20V | 660 pF @ 25 V | - | 3.1W (Ta), 74W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IRFBF30SPBFMOSFET N-CH 900V 3.6A D2PAK |
2,160 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 900 V | 3.6A (Tc) | 10V | 3.7Ohm @ 2.2A, 10V | 4V @ 250µA | 78 nC @ 10 V | ±20V | 1200 pF @ 25 V | - | 125W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IRCZ44PBFMOSFET N-CH 60V 50A TO220-5 |
2,816 | 0.00 |
RFQ |
Datasheet |
Tube | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 50A (Tc) | 10V | 28mOhm @ 31A, 10V | 4V @ 250µA | 95 nC @ 10 V | ±20V | 2500 pF @ 25 V | Current Sensing | 150W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|

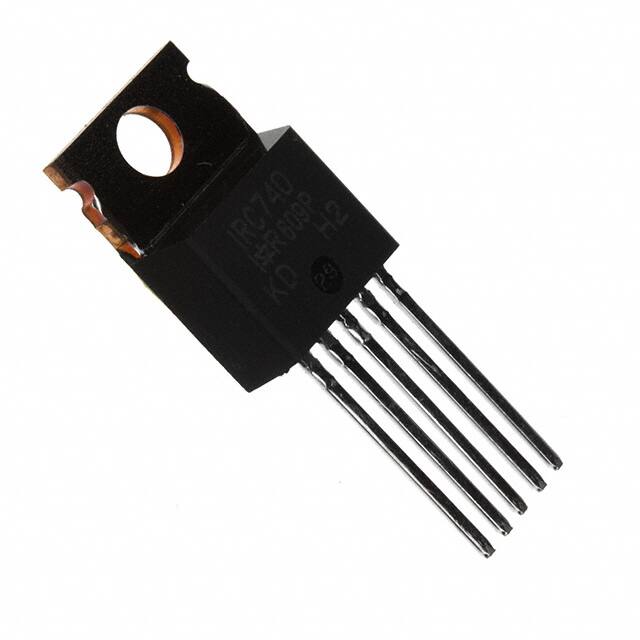

IRC740PBFMOSFET N-CH 400V 10A TO220-5 |
2,504 | 0.00 |
RFQ |
Datasheet |
Tube | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 400 V | 10A (Tc) | 10V | 550mOhm @ 6A, 10V | 4V @ 250µA | 66 nC @ 10 V | ±20V | 1200 pF @ 25 V | Current Sensing | 125W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IRC644PBFMOSFET N-CH 250V 14A TO220-5 |
2,072 | 0.00 |
RFQ |
Datasheet |
Tube | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 250 V | 14A (Tc) | 10V | 280mOhm @ 8.4A, 10V | 4V @ 250µA | 65 nC @ 10 V | ±20V | 1200 pF @ 25 V | Current Sensing | 125W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IRC840PBFMOSFET N-CH 500V 8A TO220-5 |
2,193 | 0.00 |
RFQ |
Datasheet |
Tube | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 8A (Tc) | 10V | 850mOhm @ 4.8A, 10V | 4V @ 250µA | 67 nC @ 10 V | ±20V | 1300 pF @ 25 V | Current Sensing | 125W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IRC540PBFMOSFET N-CH 100V 28A TO220-5 |
2,370 | 0.00 |
RFQ |
Datasheet |
Tube | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 28A (Tc) | 10V | 77mOhm @ 17A, 10V | 4V @ 250µA | 69 nC @ 10 V | ±20V | 1300 pF @ 25 V | Current Sensing | 150W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
IRC640PBFMOSFET N-CH 200V 18A TO220-5 |
3,752 | 0.00 |
RFQ |
Datasheet |
Tube | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 200 V | 18A (Tc) | 10V | 180mOhm @ 11A, 10V | 4V @ 250µA | 70 nC @ 10 V | ±20V | 1300 pF @ 25 V | Current Sensing | 125W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IRFB16N50KPBFMOSFET N-CH 500V 17A TO220AB |
3,851 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 17A (Tc) | 10V | 350mOhm @ 10A, 10V | 5V @ 250µA | 89 nC @ 10 V | ±30V | 2210 pF @ 25 V | - | 280W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IRFIB8N50KPBFMOSFET N-CH 500V 6.7A TO220-3 |
3,673 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 6.7A (Tc) | 10V | 350mOhm @ 4A, 10V | 5V @ 250µA | 89 nC @ 10 V | ±30V | 2160 pF @ 25 V | - | 45W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IRFU020PBFMOSFET N-CH 60V 14A TO251AA |
3,631 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 14A (Tc) | 10V | 100mOhm @ 8.4A, 10V | 4V @ 250µA | 25 nC @ 10 V | ±20V | 640 pF @ 25 V | - | 2.5W (Ta), 42W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
