| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IRFD010PBFMOSFET N-CH 50V 1.7A 4DIP |
3,249 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 50 V | 1.7A (Tc) | 10V | 200mOhm @ 860mA, 10V | 4V @ 250µA | 13 nC @ 10 V | ±20V | 250 pF @ 25 V | - | 1W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IRFP354PBFMOSFET N-CH 450V 14A TO247-3 |
2,626 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 450 V | 14A (Tc) | 10V | 350mOhm @ 8.4A, 10V | 4V @ 250µA | 160 nC @ 10 V | ±20V | 2700 pF @ 25 V | - | 190W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IRFP460NPBFMOSFET N-CH 500V 20A TO247-3 |
2,928 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 20A (Tc) | 10V | 240mOhm @ 12A, 10V | 5V @ 250µA | 124 nC @ 10 V | ±30V | 3540 pF @ 25 V | - | 280W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IRF734PBFMOSFET N-CH 450V 4.9A TO220AB |
2,184 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 450 V | 4.9A (Tc) | 10V | 1.2Ohm @ 2.9A, 10V | 4V @ 250µA | 45 nC @ 10 V | ±20V | 680 pF @ 25 V | - | 74W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IRFBC20LPBFMOSFET N-CH 600V 2.2A TO262-3 |
3,866 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 2.2A (Tc) | 10V | 4.4Ohm @ 1.3A, 10V | 4V @ 250µA | 18 nC @ 10 V | ±20V | 350 pF @ 25 V | - | 3.1W (Ta), 50W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|

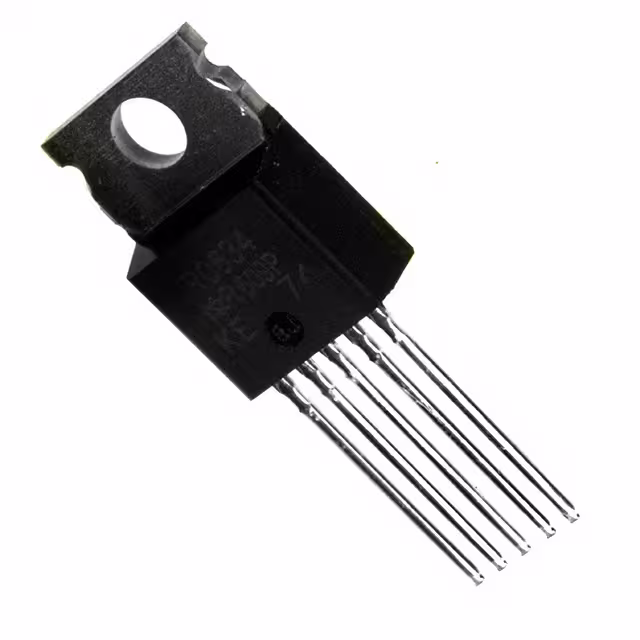

IRC634PBFMOSFET N-CH 250V 8.1A TO220-5 |
2,783 | 0.00 |
RFQ |
Datasheet |
Tube | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 250 V | 8.1A (Tc) | 10V | 450mOhm @ 4.9A, 10V | 4V @ 250µA | 41 nC @ 10 V | ±20V | 770 pF @ 25 V | Current Sensing | 74W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IRF640LPBFMOSFET N-CH 200V 18A TO262-3 |
2,317 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 200 V | 18A (Tc) | 10V | 180mOhm @ 11A, 10V | 4V @ 250µA | 70 nC @ 10 V | ±20V | 1300 pF @ 25 V | - | 3.1W (Ta), 130W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IRC730PBFMOSFET N-CH 400V 5.5A TO220-5 |
3,236 | 0.00 |
RFQ |
Datasheet |
Tube | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 400 V | 5.5A (Tc) | 10V | 1Ohm @ 3.3A, 10V | 4V @ 250µA | 38 nC @ 10 V | ±20V | 700 pF @ 25 V | Current Sensing | 74W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IRC830PBFMOSFET N-CH 500V 4.5A TO220-5 |
2,488 | 0.00 |
RFQ |
Datasheet |
Tube | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 4.5A (Tc) | 10V | 1.5Ohm @ 2.7A, 10V | 4V @ 250µA | 38 nC @ 10 V | ±20V | 610 pF @ 25 V | Current Sensing | 74W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IRFI744GPBFMOSFET N-CH 450V 4.9A TO220-3 |
3,135 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 450 V | 4.9A (Tc) | 10V | 630mOhm @ 2.9A, 10V | 4V @ 250µA | 80 nC @ 10 V | ±20V | 1400 pF @ 25 V | - | 40W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IRFI734GPBFMOSFET N-CH 450V 3.4A TO220-3 |
3,660 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 450 V | 3.4A (Tc) | 10V | 1.2Ohm @ 2A, 10V | 4V @ 250µA | 45 nC @ 10 V | ±20V | 680 pF @ 25 V | - | 35W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IRC630PBFMOSFET N-CH 200V 9A TO220-5 |
3,320 | 0.00 |
RFQ |
Datasheet |
Tube | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 200 V | 9A (Tc) | 10V | 400mOhm @ 5.4A, 10V | 4V @ 250µA | 43 nC @ 10 V | ±20V | 800 pF @ 25 V | Current Sensing | 74W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IRFB17N60KPBFMOSFET N-CH 600V 17A TO220AB |
2,716 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 17A (Tc) | 10V | 420mOhm @ 10A, 10V | 5V @ 250µA | 99 nC @ 10 V | ±30V | 2700 pF @ 25 V | - | 340W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IRFBA22N50APBFMOSFET N-CH 500V 24A SUPER-220 |
3,444 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 24A (Tc) | 10V | 230mOhm @ 13.8A, 10V | 4V @ 250µA | 115 nC @ 10 V | ±30V | 3400 pF @ 25 V | - | 340W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IRLU120PBFMOSFET N-CH 100V 7.7A TO251AA |
3,580 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 7.7A (Tc) | 4V, 5V | 270mOhm @ 4.6A, 5V | 2V @ 250µA | 12 nC @ 5 V | ±10V | 490 pF @ 25 V | - | 2.5W (Ta), 42W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IRF644NSTRLPBFMOSFET N-CH 250V 14A D2PAK |
3,149 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 250 V | 14A (Tc) | 10V | 240mOhm @ 8.4A, 10V | 4V @ 250µA | 54 nC @ 10 V | ±20V | 1060 pF @ 25 V | - | 150W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
IRFL014PBFMOSFET N-CH 60V 2.7A SOT223 |
2,772 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 2.7A (Tc) | 10V | 200mOhm @ 1.6A, 10V | 4V @ 250µA | 11 nC @ 10 V | ±20V | 300 pF @ 25 V | - | 2W (Ta), 3.1W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IRFL110PBFMOSFET N-CH 100V 1.5A SOT223 |
3,846 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 1.5A (Tc) | 10V | 540mOhm @ 900mA, 10V | 4V @ 250µA | 8.3 nC @ 10 V | ±20V | 180 pF @ 25 V | - | 2W (Ta), 3.1W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IRFL210PBFMOSFET N-CH 200V 960MA SOT223 |
2,916 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 200 V | 960mA (Tc) | 10V | 1.5Ohm @ 580mA, 10V | 4V @ 250µA | 8.2 nC @ 10 V | ±20V | 140 pF @ 25 V | - | 2W (Ta), 3.1W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IRFL214PBFMOSFET N-CH 250V 790MA SOT223 |
3,041 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 250 V | 790mA (Tc) | 10V | 2Ohm @ 470mA, 10V | 4V @ 250µA | 8.2 nC @ 10 V | ±20V | 140 pF @ 25 V | - | 2W (Ta), 3.1W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
